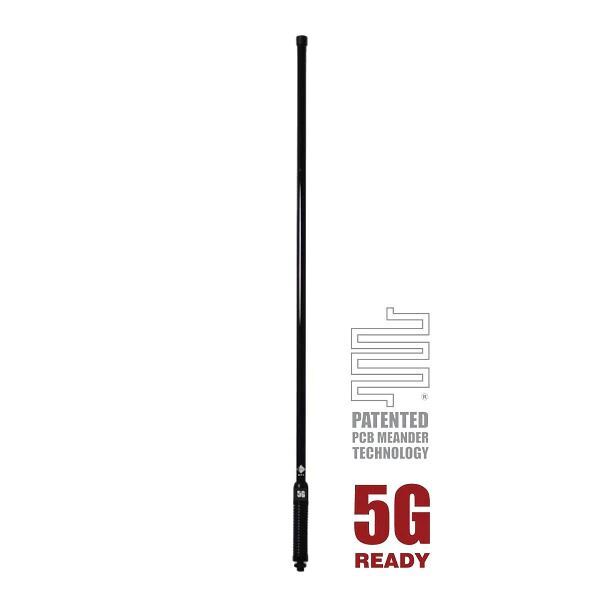

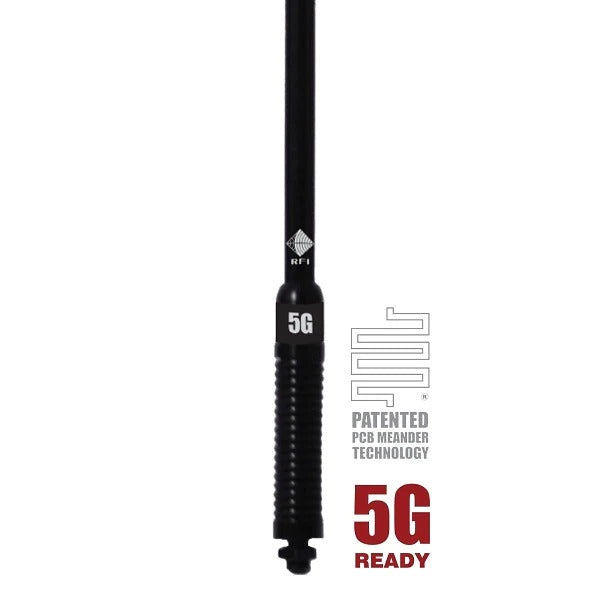

RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 169 Everyday Rewards points
Dispatch in 2 business days
Collect 169 Everyday Rewards points
Dispatch in 2 business days
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
Features:
Colour | Black |
Packaging | Retail Hang Sell Bag |
Whip Material | Fibreglass |
Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMA male connector |
Frequency Range | 1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
Nominal impedance | 50 |
Power w | 10 |
Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
Polarisation | Vertical |
VSWR | <2.5:1 |
Mounting area | 13-16mm diameter hole |
Horizontal Beamwidth | Omni-Directional |
Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
Length [mm] | 918mm |
Operating Temperature Range [°C] | -40 to +85 |
Brand | RFI |
Weight [kg] | 0.82 |
