RFI COL7199 8.5dBi Cellular Collinear Antenna with S/S Tube SMA connection

100% Australia Official Seller, Warranty, Fast Dispatch
Model: COL7199
Condition:

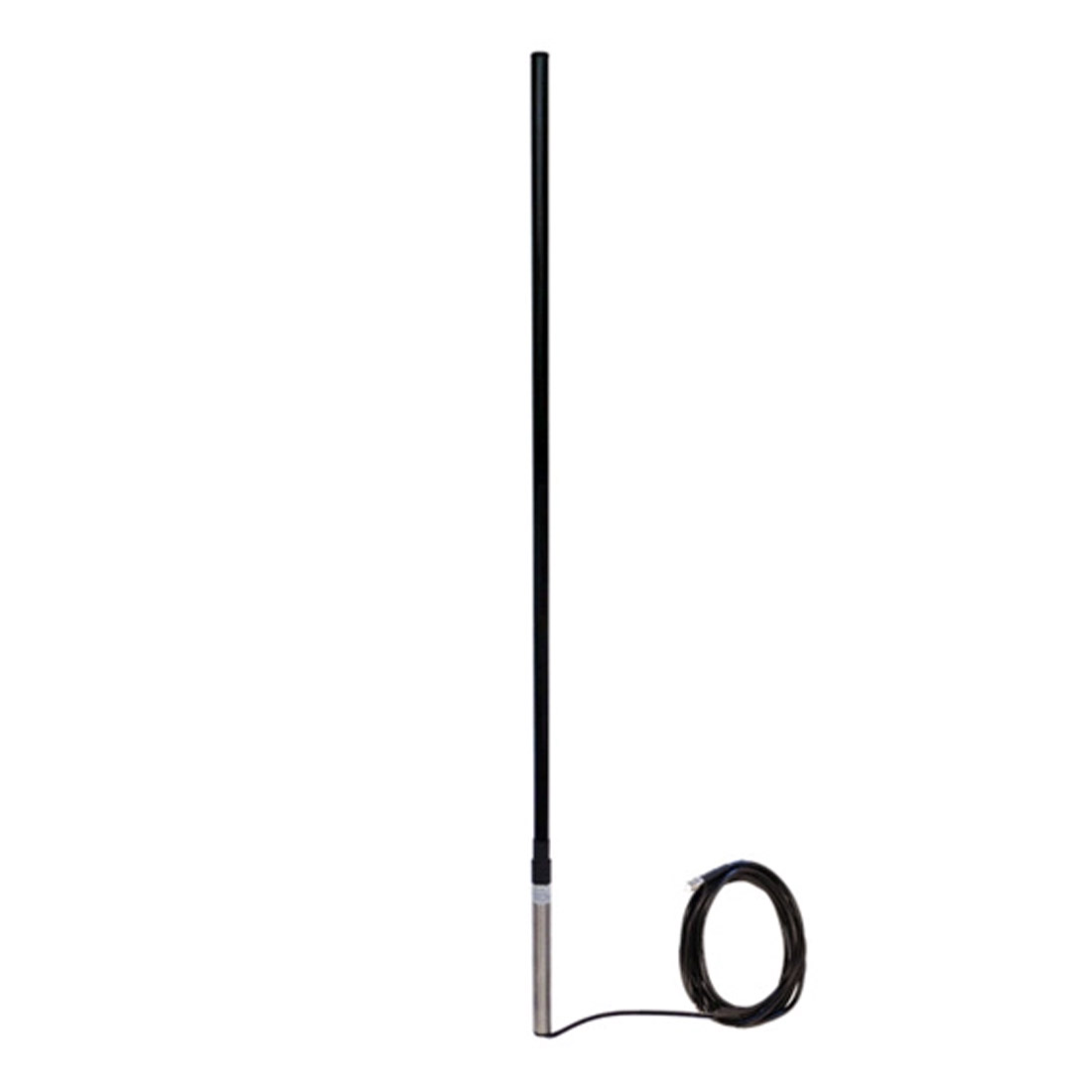

RFI COL7199 8.5dBi Cellular Collinear Antenna with S/S Tube SMA connection

With a 200mm (x 19mm) stainless steel mounting tube, the COL7199 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.

• 8.5 @ 698-960MHz
• Cutting edge printed circuit board design
• Supplied with 10m low loss coaxial cable, with Male SMA connector
• Patented PCB based collinear design
• True multi-band coverage

RFI COL7199 8.5dBi Cellular Collinear Antenna with S/S Tube SMA connection

100% Australia Official Seller, Warranty, Fast Dispatch
Model: COL7199
Condition:

RFI COL7199 8.5dBi Cellular Collinear Antenna with S/S Tube SMA connection

With a 200mm (x 19mm) stainless steel mounting tube, the COL7199 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.

• 8.5 @ 698-960MHz
• Cutting edge printed circuit board design
• Supplied with 10m low loss coaxial cable, with Male SMA connector
• Patented PCB based collinear design
• True multi-band coverage

RFI COL7195 Cellular Collinear Antenna with 200mm S/S Tube SMA connection

• The evolution continues with the release of the COL700 Series 4G LTE cellular Meander collinear antenna. The secret to its outstanding performance lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
• With a 200mm (x 19mm) stainless steel mounting tube, the COL7199 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.
• Patented PCB based collinear design offering the ultimate in pattern and gain stability
• Ideal for all new 4G networks with true multi-band coverage
• High gain across 4Gx/4G+ band suiting fringe and rural applications

Tech Specs:

• Sku: 9320110037460
• Keyfeatures:
  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz
  • Maximum Power: 10Watts.
  • Construction: Black radome, 200mm S/S mounting tube
  • Termination: 10m 9006 (RG58) low loss cable terminated with FME female connector and supplied with FME male to SMA male adaptor
  • Radiation: Omnidirectional
  • VSWR: <2.5:1
• Content:
  • RFI LTE 8.5dBi Collinear Antenna COL7199
• Model: COL7199
• Network 4g: 4G/LTE

Tech Specs:

• Sku: 9320110037460
• Keyfeatures:
  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz
  • Maximum Power: 10Watts.
  • Construction: Black radome, 200mm S/S mounting tube
  • Termination: 10m 9006 (RG58) low loss cable terminated with FME female connector and supplied with FME male to SMA male adaptor
  • Radiation: Omnidirectional
  • VSWR: <2.5:1
• Content:
  • RFI LTE 8.5dBi Collinear Antenna COL7199
• Model: COL7199
• Network 4g: 4G/LTE
