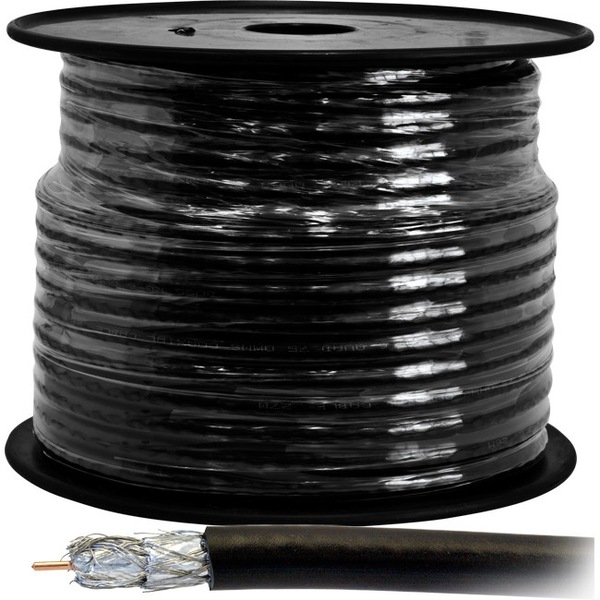

DOSS RG6QDR-30M Quad Shield Cable - 30M Roll 75 Ohm Coax Cable - Per Roll 1.0 5Mm Copper Clad Steel

Image 1
$15.95

Collect 15 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Doss RG6QUAD - 30m Roll

Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2 × screening of aluminium tape covered with woven aluminium braid outer conductor.

  • 1.02mm copper clad steel centre conductor (Conductivity 20%)
  • 2 × Aluminium 45% braid & 2 × Sealed APA tape
  • Dielectric:4.57mm Foam Polyethylene
  • First Shield: Bonded AL Foil
  • Second Shield: 45% AL Braiding
  • Thrid Shield: AL/PET
  • Fourth Shield: 45% AL Braiding
  • Suitable for UHF, Pay, Satellite - Ø7.40mm Jacket
  • Nominal Impedance: 75 ±3
  • Nominal Velocity of Propagation: 85%
  • Nominal Capacitance: 50pF/M
  • Speaker Test: 4000V AC
  • Attenuation (dB/100m):
    • 4.538 @ 55MHz
    • 8.522 @ 211MHz
    • 12.828 @ 450MHz
    • 18.254 @ 870MHz
    • 19.642 @ 1000MHz
    • 23.899 @ 1440MHz
    • 29.673 @ 2150MHz
    • 35.386 @ 3000MHz

Available In
  • 305m Dispensing Box with Reversed Metre Marking ()
  • 100m Roll ()
  • 30m Roll ()
  • By the metre ()

Downloads
pdf; 652kB
pdf; 530kB

Weight: 1.581
