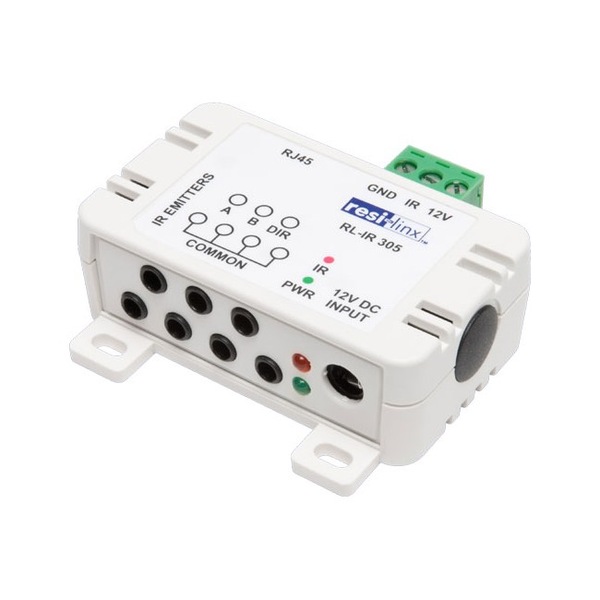

RESI-LINX RLIR305 4 Port Junction Box With Power Supply RL-IR305 Frequency Range:

Image 1
Image 2
Limited Stock
$136

Collect 136 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Pay in 4 interest-free payments of $34.00 with PayPal

Popular Products

Resi-linx RLIR305 Compact Distribution Module

Compact Distribution Module for use in resi-linx® NEW 'linx-IR' Discrete Infra Red system, with RL-IR505 (Receiver Module and Flat Target). Advantage of Discrete IR control of specific AV devices from each zone, ideal where two of the same AV devices are installed in the one area. Ability to distribute to multiple zones with loop wiringconfiguration using RL-IR505, or star wiring via RL-IR170 IR Distribution Hub. Built-in LED's to show acknowledgement of IR commands and power status. Includes switch mode power supply and Direct IR lead.

FEATURES:
  • Compact Distribution Module for use in resi-linx® NEW ‘linx IR' Discrete Infra Red system with RL-IR505 (Receiver Module and Flat Target) or RL-IR600 (Tube Target) and RLIR700 (single) or RL-IR800 (double) Emitters
  • Advantage of Discrete IR control of specific AV devices from each zone. Simply select which device/s you wish to control at each Target zone. Ideal where two of the same AV devices are installed in the same area
  • Ability to distribute to multiple zones with loop wiring configuration using RL-IR505, or with star wiring via RL-IR170 IR Distribution Hub
  • Seven emitter output ports (4 Common, 2 Discrete and 1 Direct), one target input terminal, and one RJ45 socket for expansion
  • Built-in LED to show acknowledgement of IR commands and Power Status

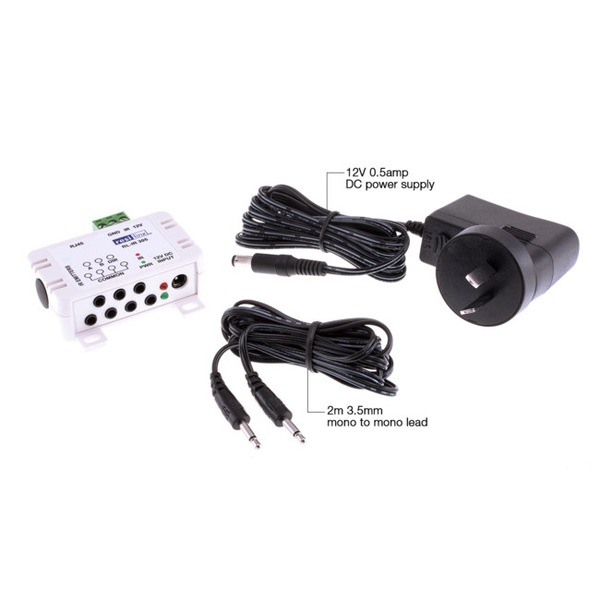

  • Includes switch mode power supply and Direct IR Lead
  • Foxtel Approved (Approval No: F30543) - works with all Foxtel and all other receivers

Specifications:

Frequency Range20 kHz - 200 kHz
Power Input12V DC 500mA Switch Mode
Cable RequirementUTP cable
Max. Cable LengthUp to 60 metres
Max. Targets per SystemUp to 7 Targets
Dimensions70mm × 40mm × 23mm
Power Supply
  • Power Input: 110V - 240V AC
  • Power Output: 12V DC / 500mA
Connection - Power Out1.8m length with Female, 2.1mm minijack



Weight: 0.212
