UNIVERSAL 360° PASSIVE INFRA-RED PRESENCE DETECTOR WITH MANUAL OVER-RIDE

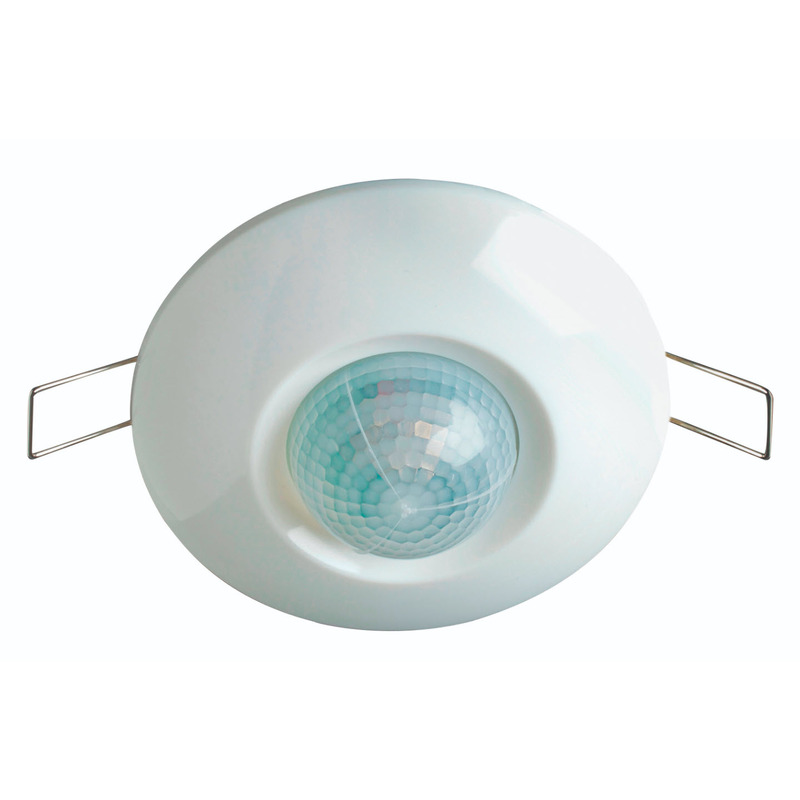

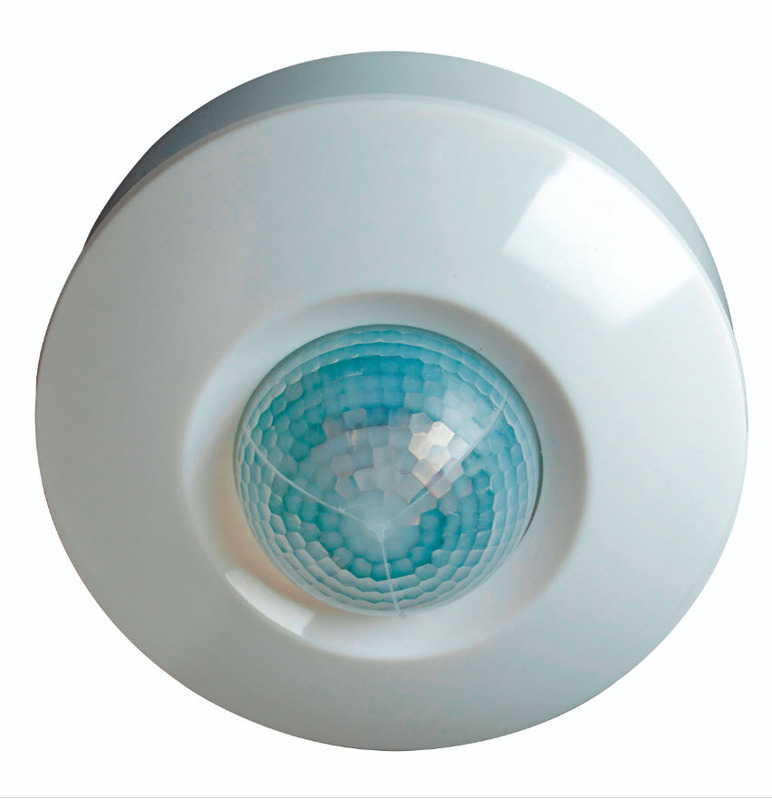

This IK10 rated sensor is strong and resilient to knocks and can be recessed or surface mounted using the kit included.

It has a manual over-ride function of up to 8 hours after which it will revert to automatic mode if not manually carried out

The sensor is designed such that it detects small movements of presence in the inner section of the detection zone, and larger movements of motion in the outer This provides the flexibility of use for desk-based presence detection, or motion in larger areas such as corridors

It also has a high switching capacity of 300W for LED loads so can switch multiple fittings in its detection area

The fitting has a plugin connection block allowing first fix and testing to take place before installing the sensor. Large terminals accept 2 x 1.5mm2 conductors for fast and easy loop in / loop out connection to parallel sensors or multiple fittings

• Suitable for both surface and recessed indoor applications
• Injection moulded ABS body - impact resistant
• Plug-in terminal block and sensor module
• Large terminals accept 2 x 1.5mmý conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittings
• Adjustable time delay of 10sec to 40min ensures that lighting is switched off with the required delay
• Adjustable lux setting of 10 to 2000lx
• Detection range 360ø, detection distance 10m at 2.8m mounting height
• Passive infra-red; ensures light is switched on when the sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimizes false/unwanted triggering
• Adjustable passive photocell; inhibits switching where natural light is sufficient
• A high load contact rating; allows numerous fittings to be switched
• Maximum LED load of 300W
• Maximum Fluorescent load of 600W
• Maximum Resistive load of 2000W
• IP rating: surface mounted IP44, recessed IP20
