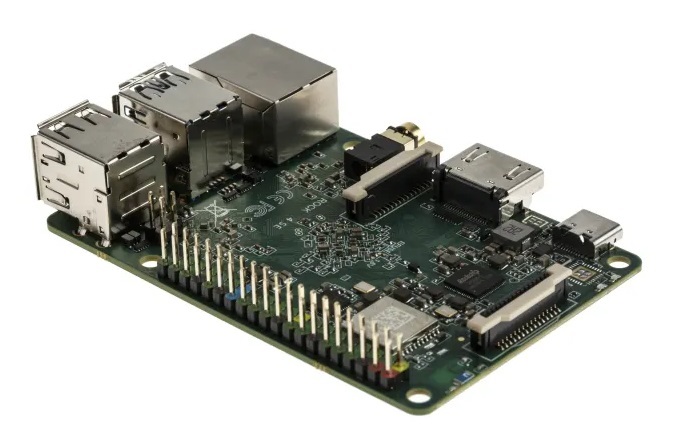

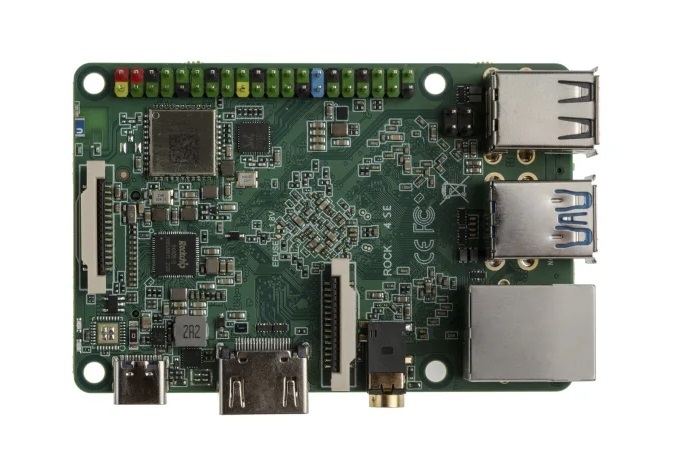

ROCK 4 SE is a class-leading single-board computer developed by OKdo in collaboration with Radxa. It’s a reliable, robust, low-power and high-performing SBC based on the powerful Rockchip RK3399-T processor, big.LITTLE™ Arm® Dual Cortex-A72® CPU, Arm Mali™ - T860MP4 GPU and 4GB dual channel LPDDR4 RAM. The board benefits from an extensive list of high-quality features, such as an onboard antenna, RTC, WiFi 802.11 b/g/n/ac, Bluetooth 5 and BLE modules, an audio jack with microphone in, a 4K HDMI port 60fps, user configurable USB HOST/OTG mode, M.2 memory expansion, eMMC robust memory slot and much more.
Â
Â
Class-leading superior performance
Â
Powerful Rockchip RK3399-T processor
Â
Onboard RTC (real-time clock)
Â
Extensive storage capacity - a Micro SD card, an eMMC and an M.2 (M key)
Â
Multiple connectivity capabilities including; Bluetooth 5.0, WiFi, Gigabit Ethernet
Â
Onboard 40P GPIO extension header
Â
Advanced multimedia capability due to the Arm Mali T860MP4 quad-core GPU
Â
HDMI port supporting displays up to 4Kp60 resolution
Â
A high-quality audio output via a 3.5mm onboard audio jack (headphone and headset) and microphone in
Â
Â
802.11 b/g/n/ac Wireless LAN Bluetooth 5.0 with BLE
Â
1 x SD Card
Â
1 x HDMI port supporting displays up to 4Kp60 resolution
Â
2 x USB2 HOST ports
Â
1 x USB3 HOST port, 1x USB3 OTG port
Â
1 x Gigabit Ethernet port (supports PoE with addon PoE HAT)
Â
1 x camera port (2lane MIPI CSI)
Â
1 x display port (2lane MIPI DSI)
Â
40 x user GPIO supporting a wide range of interface options:
· 1 x UART 
· 2 x SPI bus
· 2 x I2C bus
· 1 x PCM/I2S
· 1 x SPDIF
· 1 x PWM
· 1 x ADC
· 6 x GPIO
· 2 x 5V DC power pin
· 2 x 3.3V power pin
Â
Â
OKdo, in collaboration with Radxa, ensure long-term stock availability of ROCK 4 SE, supporting your design applications.
Â
Â

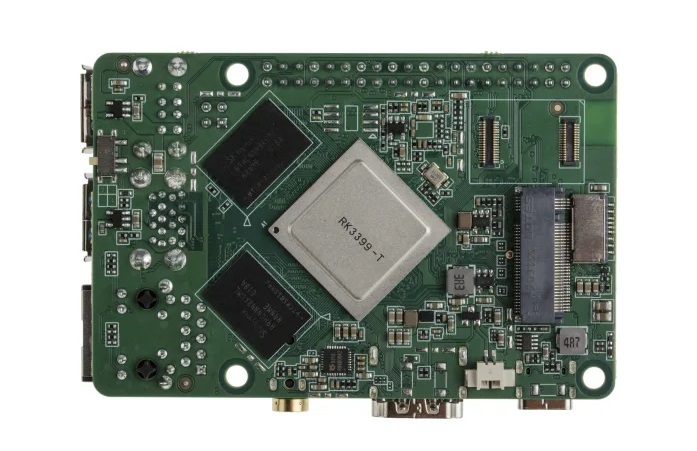

Processor: RK3399T, Arm® big.LITTLE™ technology
Â
(Dual Cortex®A72; frequency 1.5Ghz, quad CortexA53, frequency 1.0Ghz)
Â
GPU: Arm Maliâ„¢ T860MP4 GPU, supporting OpenGL ES 1.1/2.0/3.0/3.1/3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11
Â
RAM: Dual channel 4GB 64bit LPDDR4
Â
Dual display via HDMI and MIPI DSI supporting mirror or extend modes H.265/VP9 (HEVC) hardware decode (up to 4Kp60)
Â
H.264 hardware decode (up to 1080p60)
Â
WiFi 5/BT 5.0, BLE, Gigabit Ethernet
Â
USB TypeCâ„¢ PD/QC power input
Â
Micro SD, eMMC/M.2 (M key) connectors
Â
Real-time clock (RTC)
Â
Software: ARMv8 Instruction Set, Debian/Ubuntu Linux support, Android 7.1/Android 9.0/Android 10/Android 11 support, GPU-enabled AI stack such as Caffe, Hardware access /control library for Linux/Android
Â
Operation Temperature: 0∼50 ℃/ Storage Temperature: -20∼80 ℃
12 Month Warranty
GTIN: 9351634064038
Estimated Delivery Time Frame:2-10 Business Days
Ask a Question About This Product
Reference ID: 9871996
