Rural Max 750W Variable Speed Inverter Pump Controller Single Phase AD-03M

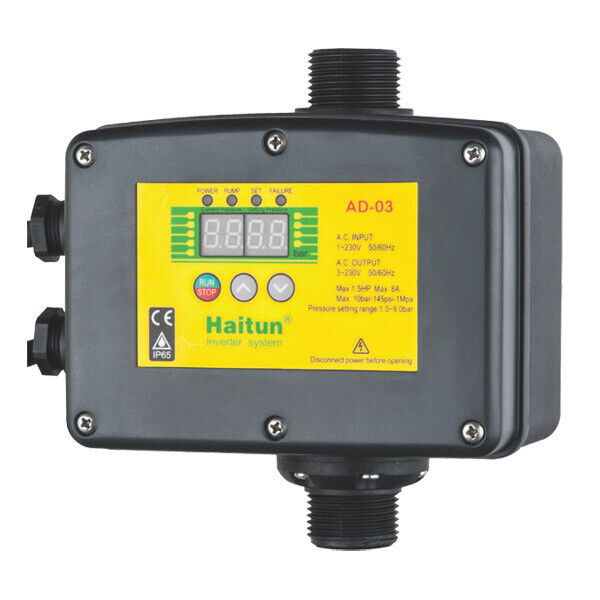

Haitun 750W Inverter Pump Controller

• Model: AD-03M
• Saving energy: saving the electric energy 20%-50%
• Water pressure constant: outputting water pressure constant, prolonging the service life of the pipe Network and using water comfortably
• Green environmental protection: using water directly, and reduce the second pollution of water supply
• Easy installation: direct screw thread, it is quick and easy
• Simple operation: Fool-style operation, all functions can be finished by a button, no need any professional staffs to debug
• Motor soft start: improving power factor and prolonging the service life of the water pump
• Wide voltage range: the pump can work stably when the voltage range is 160V-250V
• Highly integrated design: combining the inverter system, control system, protection system, cooling system

• Input Power: Single phase AC 220V
• Allowable voltage Range: 160V-250V
• Output voltage: 1-220V
• Main pump type: single phase
• Auxiliary pump type: single phase pump
• Max pump power: 750W
• Joint screw: G1" male
• Max allowable pressure: 10bar
• Pressure setting range: 1-6bar
• System configuration requirement: Must add an inflatable pressure tank (bigger than 4L), and inflation pressure is 50-80% of the setting pressure
• Ambient temperature: 0-40°C
• Liquid requirement: clean water, 0-50°C
