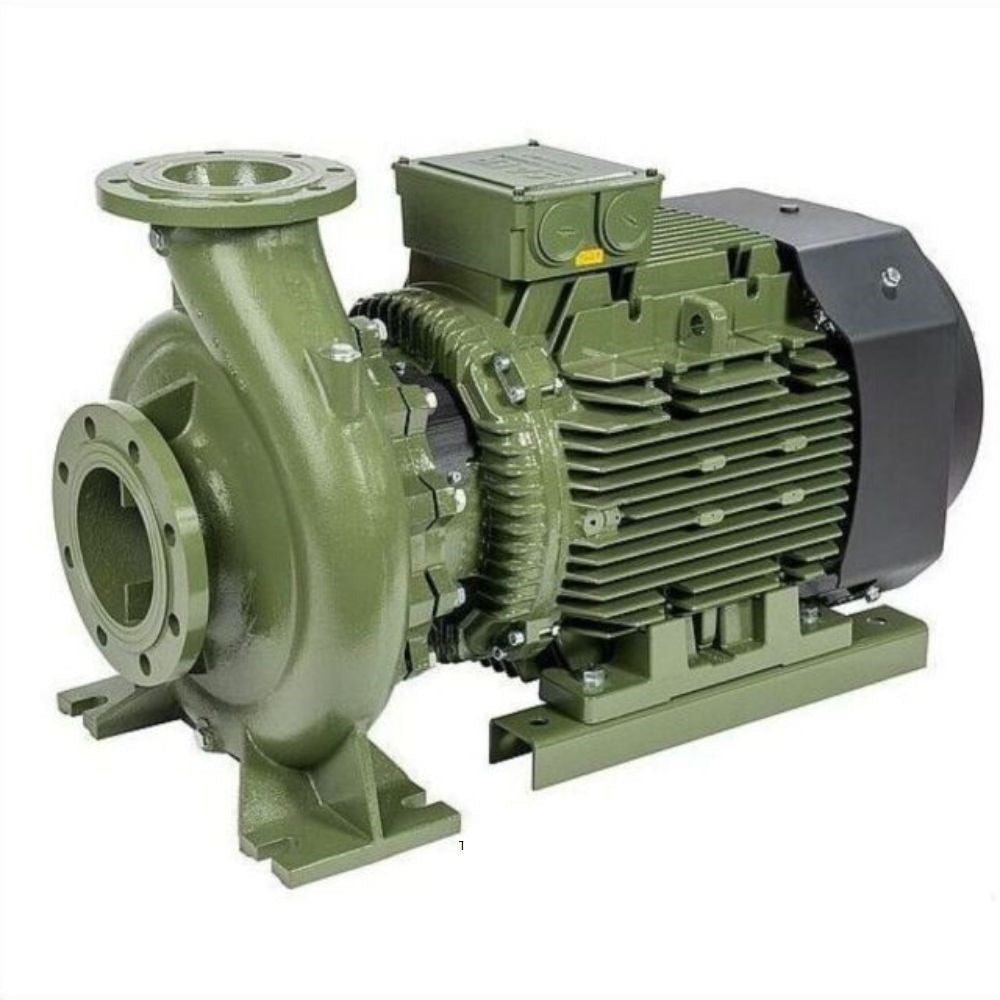

The IR series, is a close-coupled end-suction electric pump suitable for re-circulation, heating and heat recovery systems, water supply facilities and pressurisation groups. Pumps and motors conform with 2009/125/CE Directive (ErP). Efficiency classes according to IEC 60034-30: IE2 and IE3.

Specifications:

• Max Flow: 450m³/h
• Max Head: 129m
• Power: 0.37kW up to 45kW
• Protection: IP55
• Insultation: Class F
• Asynchronous induction
• 2 and 4 poles
• External ventilation (TEFC)

 Applications:

• Re-circulation
• Heating and heat recovery systems
• Water supply
• Pressurisation

Materials:

• Pump Body: Cast Iron
• Impeller: Cast Iron
• Shaft End: Stainless Steel AISI 431 or Duplex
• Bi-directional Mechanical Seal
• Bi-component epoxy paint coating suitable for contact with drinking water.

Models:

• IR: Standard

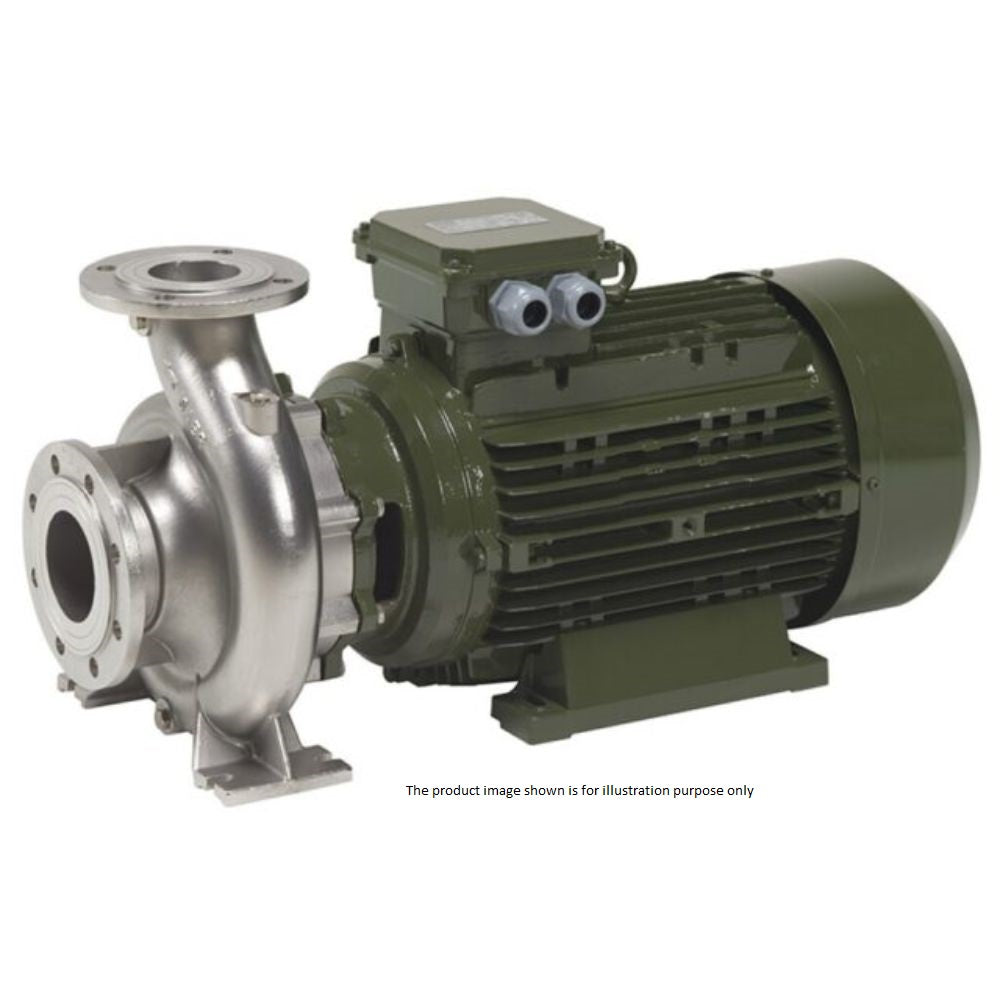

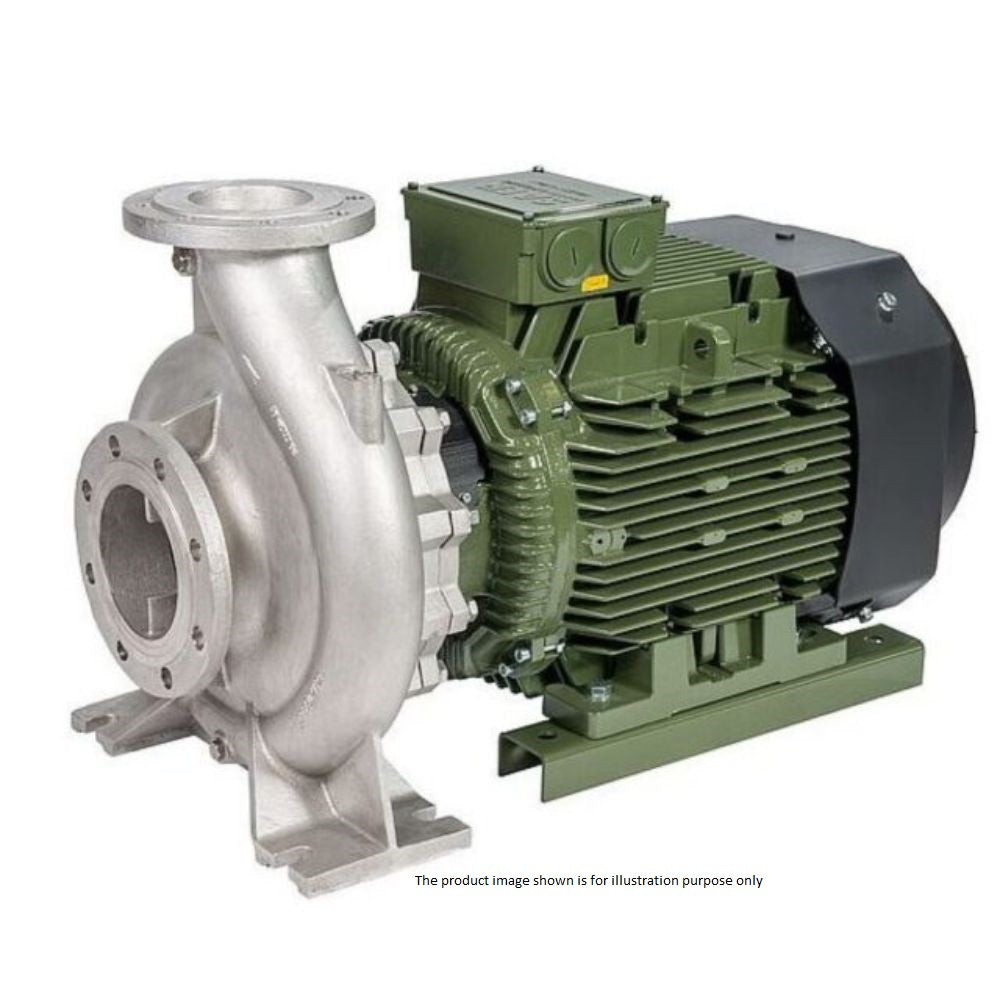

• IRX: Stainless Steel AISI 316 Version

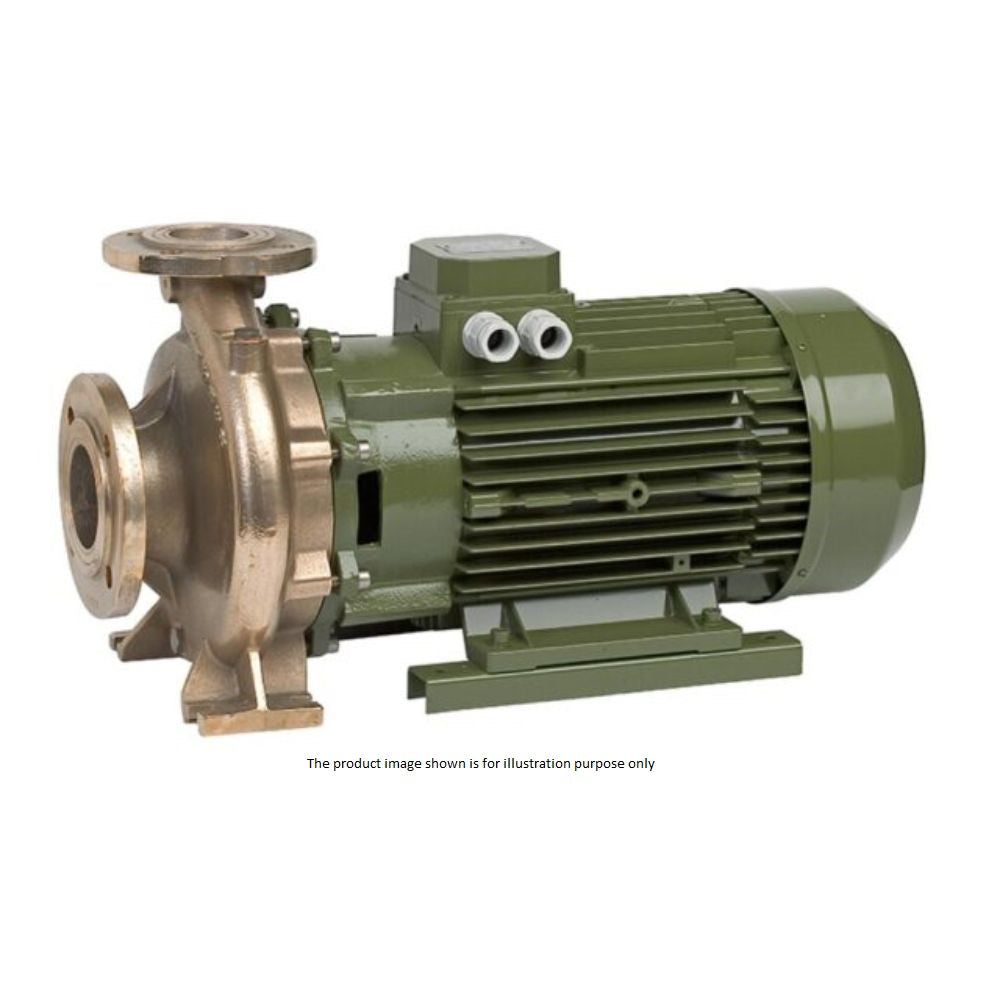

• IR-M: Marine Bronze Version

The product image shown is for illustration purpose only
