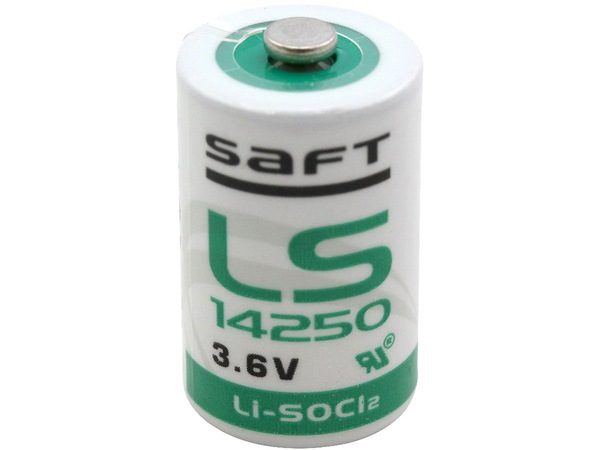

Saft LS14250 3.6V Lithium Primary Battery

Saft LS14250 3.6V Lithium Primary Battery

Be the first to review this product

Price	From $13.99
	Collect 13 Everyday Rewards points Create a MyDeal Account or Login to link your card
Option 1	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Please note these are Primary batteries, which mean they are NOT RECHARGEABLE. NEVER attempt to charge them.

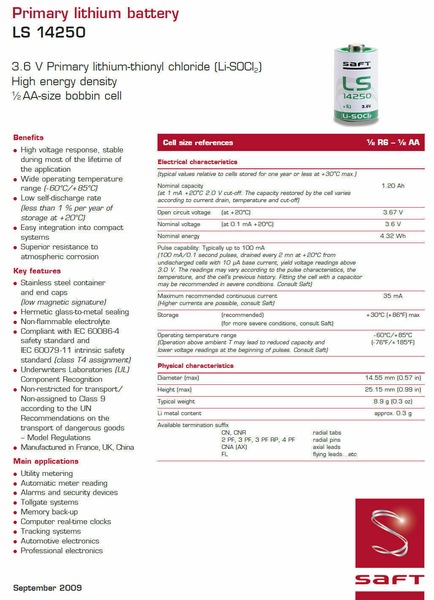

Specifications:

Type: 1/2 AA Size, Non Rechargeable Battery
Open circuit voltage: (at +20°C) 3.67 V
Nominal voltage: (at 0.1 mA +20°C) 3.6 V
Nominal energy: 4.32 Wh
Pulse capability: Typically up to 100 mA
(100 mA/0.1 second pulses, drained every 2 mn at +20°C from undischarged cells with 10 µA base current, yield voltage readings above 3.0 V. The readings may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions. Consult Saft)
Maximum recommended continuous current: 35 mA
(Higher currents are possible, consult Saft)
Storage: (recommended) +30°C (+86°F) max
(for more severe conditions, consult Saft)
Operating temperature range: -60°C/+85°C
(Operation above ambient T may lead to reduced capacity and (-76°F/+185°F) lower voltage readings at the beginning of pulses. Consult Saft)
Diameter: (max) 14.55 mm (0.57 in)
Height: (max) 25.15 mm (0.99 in)
Typical weight: 8.9 g (0.3 oz)

Usage & Precautions

!!!!! IMPORTANT !!!!! These are very powerful batteries, and extreme care should be taken using them. Ensure to never short positive and negative terminal of the battery! In worst case Lithium batteries can explode or catch fire when used improperly! Use at your own risk. We do NOT accept any responsibly for damage, injury or death caused by improper use of these batteries!

Do not over-discharge! Ensure the equipment you use this battery in will not draw more current from that batteries than it stated “Maximum Continuous Discharge Current”
Do not short circuit your batteries! NEVER short circuit a Lithium(or more other) battery! Short circuiting can cause a huge surge of current that will potentially burn out your battery, damage your mod, or even your face!
Do not let your batteries touch each other or other metallic items! Keeping your batteries loose, such as in your pockets, is a good way to have your batteries fail and seriously harm you. There are battery holders and covers to keep your batteries safe.
Do not dispose any battery in a fire! There are dangerous chemicals in batteries. If you try to burn your batteries they’ll release dangerous fumes and will probably explode. Always dispose your old batteries to a battery recycling center.

Main applications

Utility metering
Automatic meter reading
Alarms and security devices
Tollgate systems
Memory back-up
Computer real-time clocks
Tracking systems
Automotive electronics
Professional electronics

Saft LS vs LSH

Saft’s LS and LSH cylindrical primary lithium cells ranges, all based on Lithium-Thionyl chloride (Li-SOCl 2 ) chemistry perfectly suit high-energy and high-voltage requirements in a wide range of temperatures.

The bobbin construction of the LS range enables the maximum loading of active materials and the correspondingly maximum energy. With its remarkably low self-discharge, it perfectly matches long-term (from five to 20 years plus) applications featuring a few µA base currents and periodic pulses, typically in the 5-150 mA range.

The LSH range has a spiral construction and includes specific models that can operate at the very high temperatures found in oil and gas applications, for example. The cells are designed for applications requiring pulses as high as 4 A.

Commonly Known as: 15A, 15D, 15LF, 2AA, 815, AA, AL-AA, AM3, Double A, E91, EN91, FR6, KAA, L91, LR6, LR6XWA, MN1500, MX1500, PC1500, R6, UM3, er14250
