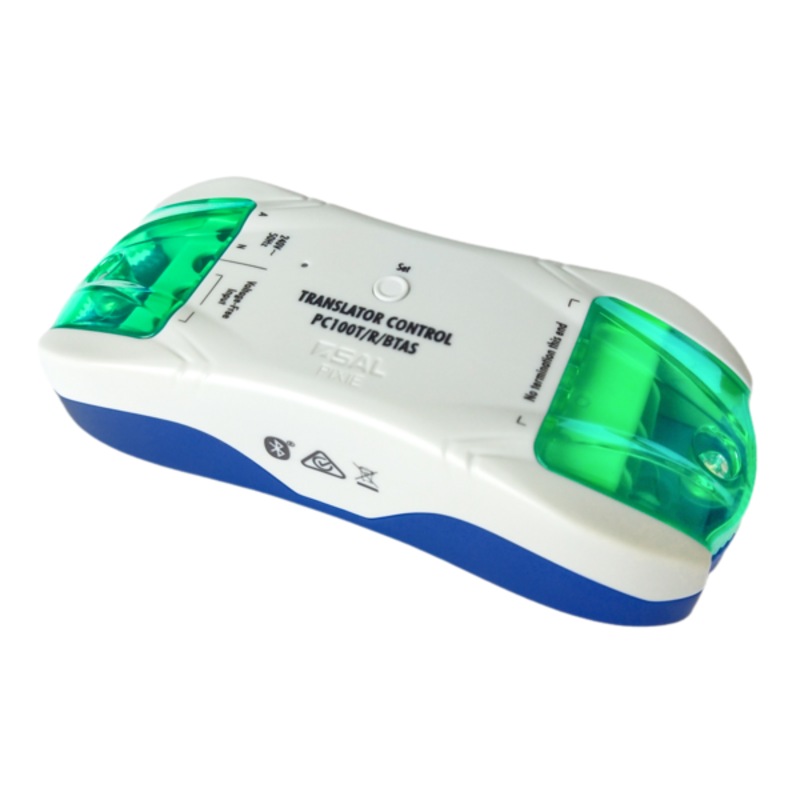

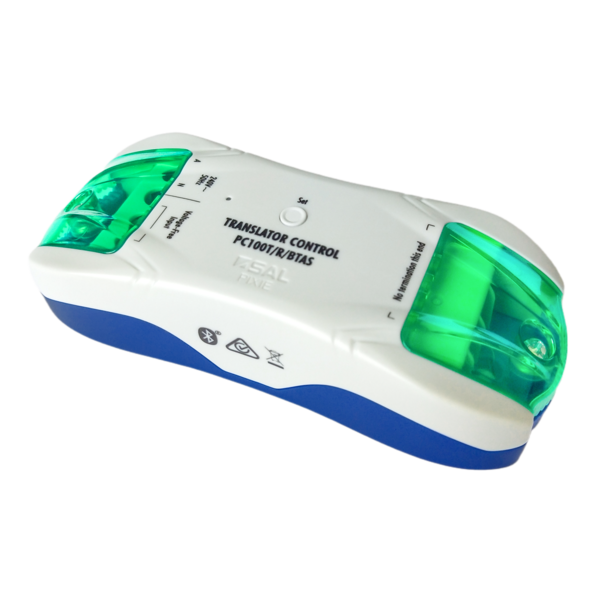

SAL PIXIE Translator Controller

The SAL PIXIE Translator Controller allows for single signal input for connecting a momentary switch, a toggle switch, voltage-free contacts of devices that can generate dry contact signals. It also enables integration between PIXIE and other Legacy Lighting Control systems. Comes with 24hr / 7 Day scheduling, Groups, Scenes and mobile app control and configuration.

Features

Dry Contact Receiver

• With a single dry contact input able to be configured to tramsit device, group and scene messages into a PIXIE home ecosystem

Ideal for:

• Alam and security system integration
• Audio Visual integration – “Movie Scenes”
• Legacy Lighting Control system during renovations and extensions.

Latch and/or Unlatch

• Able to issue commands to PIXIE ecosystem when both a relay is Latched and / or unlatched to create some logic and state based automations.
• When Alarm is triggered recall ALL ON scene; When Alarm is un-triggered recall ALARM OVER scene.
• When AV system triggers MOVIE scene ( open projector screen, close curtain, dims lights ); When MOVIE scene ends (retract projector screen, fade lights up, open curtains to 50%)

Legacy Lighting Control Integration

Does your customer have a legacy lighting control system  – CBUS®, Dynalite®, Control4®, KNX® etc., and wants to use PIXIE for their renovation or extension instead BUT wants the 2 system to work together?

Perfect! The PIXIE Translator receives dry contact inputs signals from those systems and translates them into PIXIE messages for bi-directional integration between systems.
