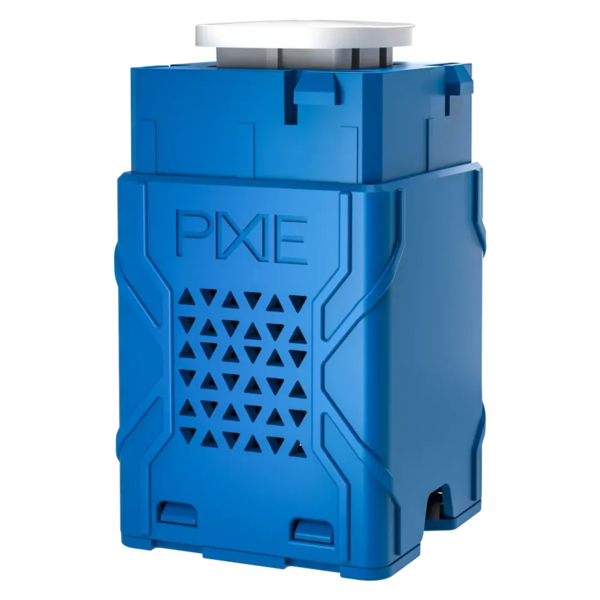

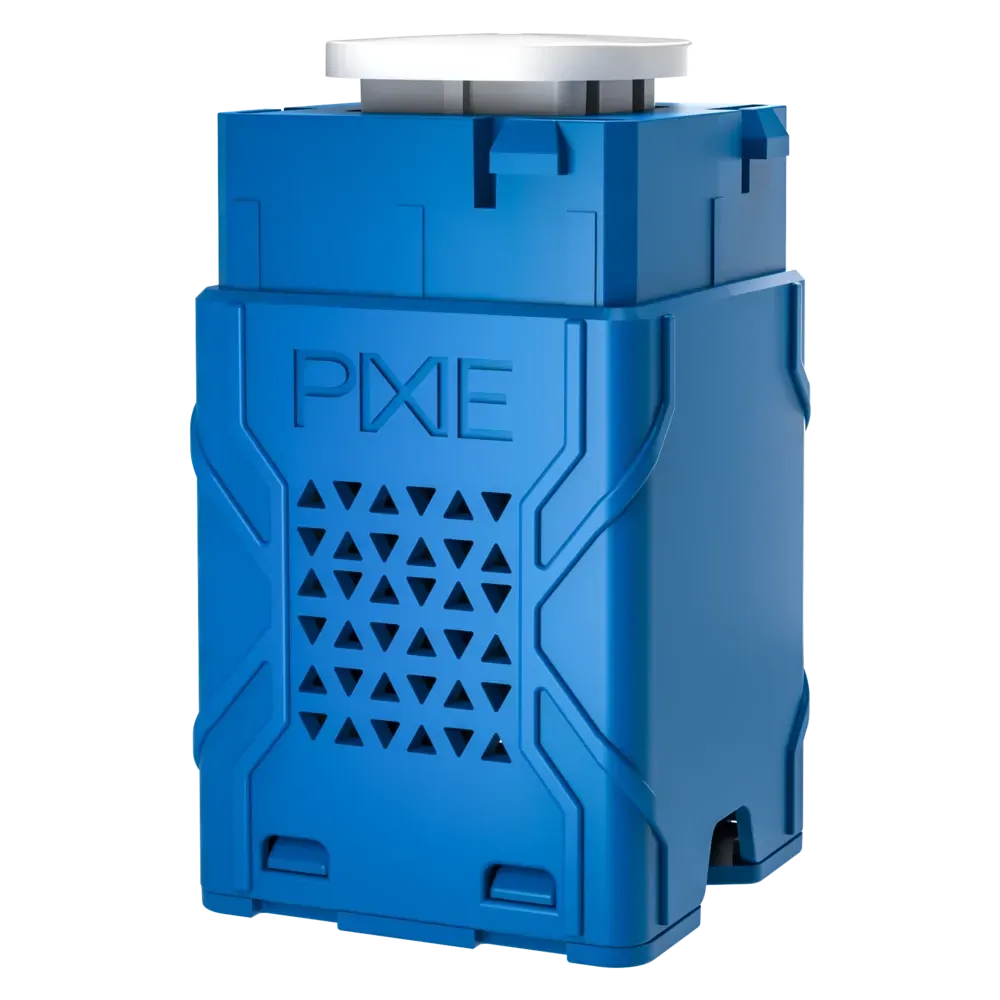

The SAL SDD300BTAM is a smart 300W trailing edge dimmer from the PIXIE Generation 3 series, offering both push-button and Bluetooth app control. Designed for residential and commercial smart lighting, it allows users to switch on/off, hold-to-dim, and save dimming levels with memory recall—all from a compact device that fits standard wall plates.

With Bluetooth Mesh built in, the dimmer can be grouped, scheduled, or automated via the PIXIE or PIXIE PLUS app. Add the optional PIXIE Gateway for remote control via the internet. Three interchangeable keycaps are included to suit 1–6 gang plate layouts, making it highly adaptable for upgrades or new installs.

Built with overheat, overload, and short circuit protection, the SDD300BTAMG3 is a reliable solution for trailing edge dimming from 2W to 300W resistive or 250VA capacitive loads.

SAL SDD300BTAM Features

• Bluetooth Mesh smart dimmer (300W): Push-button and full app control with memory dimming.
• Trailing edge dimming: Ideal for LED lighting (2W min to 300W resistive or 250VA capacitive).
• PIXIE App control: Group, automate, or schedule via Bluetooth with PIXIE or PIXIE PLUS.
• Remote access via PIXIE Gateway: Optional internet-based control from anywhere.
• Includes 3 keycap options: Compatible with most 1–6 gang switch plates.
• Built-in safety protections: Overload, overheat, and short-circuit protection.
• Compact design (42 x 24 x 24mm): Installs easily in standard wall cavities.
• AS/NZS 60669.2.1 compliant

SDD300BTAM FAQ
Q: What type of loads does this dimmer support?
A: It supports resistive loads up to 300W and capacitive LED loads up to 250VA (min. 2W).

Q: Can I control this dimmer remotely?
A: Yes, with the optional SAL PIXIE Gateway, you can control it via the internet through the PIXIE app.

Q: What’s included with the unit?
A: The dimmer comes with three interchangeable keycaps to suit most switch plates (1–6 gang).
