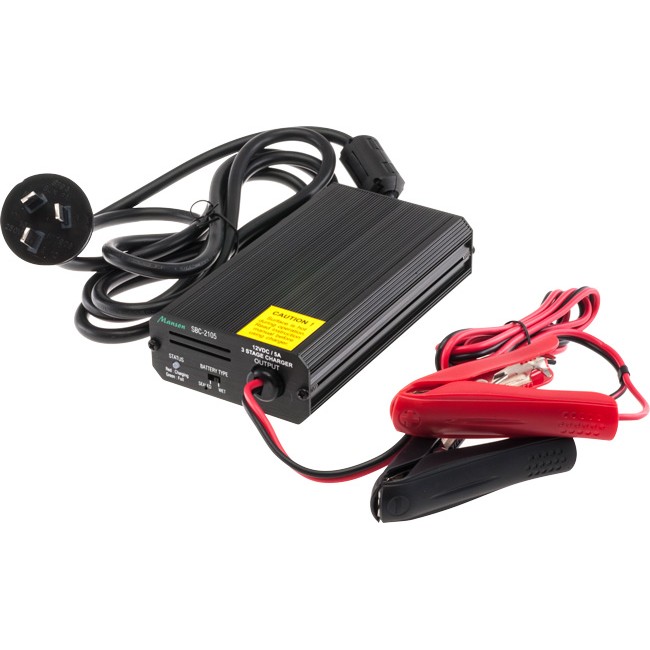

MANSON SBC2105 12V 5A Sla Battery Charger 3 Stage Switching Mode 3 Stage (Iuou) Switching Mode Lead

MANSON SBC2105 12V 5A Sla Battery Charger 3 Stage Switching Mode 3 Stage (Iuou) Switching Mode Lead

Limited Stock

$82

Collect 82 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

Overview

12V 5A SLA BATTERY CHARGER

3 STAGE SWITCHING MODE

This compact, robust and light weight battery charger gives a complete and fast charge to sealed and wet type of lead acid battery.

In the Bulk Charge Stage, it charges the battery at a constant maximum current until the battery voltage increases to a slightly higher level and switches to the Absorption Mode at which the battery is then kept at this voltage while the charging current decreases to a low value.

When the battery is fully charged, the charger is then switched to the Floated Charge voltage where it can be maintained indefinitely. At the Float Charge Mode, the charger will make up for the loss of self discharge of the battery.

This charger has two selections to cover a wide range of sealed (VRLA) and the wet type of lead acid battery. In addition to the standard short circuit, over load, over temperature protections, it has electronic reversed polarity protection, output over voltage protection, and battery low voltage protection to prevent damage to the charger and the battery.

Features

3 Stage (IUOU) Switching Mode Lead Acid Battery Charger.
2 Selectable Bulk Absorption-Float Charge Settings forSealed & Wet battery
LED indicators for charging and Full/ Float mode.
Wide Input Tolerance for fluctuating mains voltage
Protections to the charger and battery. Output Short Circuit, Over Load, Over Temperature, Reverse Polarity
Protection to the battery. OVP (Over Voltage Protection) the charger will cut off output when output voltage is over 15.5V, this gives complete protection the battery
Battery Under-Voltage Protection. When voltage of thecharged battery is less than 7.5V, the charger will stop charging the battery which may be of wrong rating (6V) or faulty or heavily exhuasted

Specifications

AC Input Voltage 180-260V, 50Hz~	Yes
AC Input Current at full load at 230VAC	0.8A
Output (Charge) Voltage Selections (2 Battery Type)	Sealed Battery - Absorption (13.8V to 14.1V); Float (13.2V to 13.5V)	Yes
Wet Battery - Absorption (14.1V to 14.4V); Float (13.4V to 13.7V)	Yes
Maximum Output Charging Current (Continuous)	5A
Line Regulation (180V to 260V) for Charging Current	0.6%
Ripple and Noise (Peak to Peak)	120mV
Efficiency at Maximum Power	84%
Protections	Short Circuit Protected	Yes
Overload Protection	Yes
Reverse Polarity Protection	Yes
Over Temperature Protection	Yes
OVP (Output Over Voltage Protected	Yes
Battery Under Voltage Protection	Yes When battery voltage <7.5V, charger will stop charging battery
CE Approvals and Standards	EN 60335 , EN 55014
Charge Indication	1 LED - Red: Charging; Green: Full or Float
Anodised Aluminum Casing	Yes
Size in mm (W×Height×Depth)	142mm × 75mm × 32mm
Weight	380g
Included Accessories	2 × Clip-on mounting brackets 4 × Mounting screws 4 × Push-on feet
Recommended Battery Capacity Range	20AH to 50AH

Images

Mounting hardware included: 2x Clip-on Brackets, 4xMounting screws, 4x Push-on Feet
