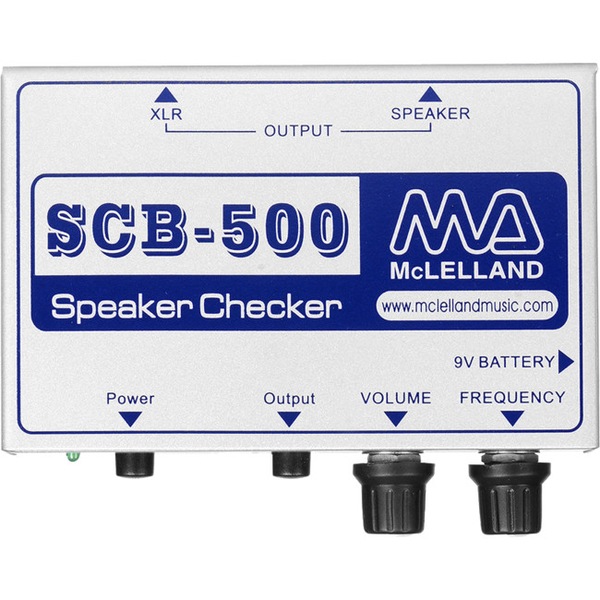

MCLELLAND SCB500 Volume Frequency Spk Checker 20Hz To 20Khz Speakon XLR XLR and Speakon Output

Image 1
Image 2
Image 3
Hurry! 2 items left!
$146

Collect 146 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

This Speaker Checker has been developed for fast testing of speaker systems. The Speaker Checker generates a sine-wave tone adjustable from 20Hz to 20kHz with a maximum power of 1W, thus allowing to test all systems of a loudspeaker box. Thanks to the battery power supply, the handheld device with belt holder can be used everywhere and fast. It is possible, for instance, to check the speaker boxes returned from a production into the stock fast and without circumstance. This saves a lot of time and possibly a lot of trouble, which can result from a damaged loudspeaker box which has not been checked.

_
Specification:
  • Dimensions: W x D x H : 110 x 72 x 40 mm

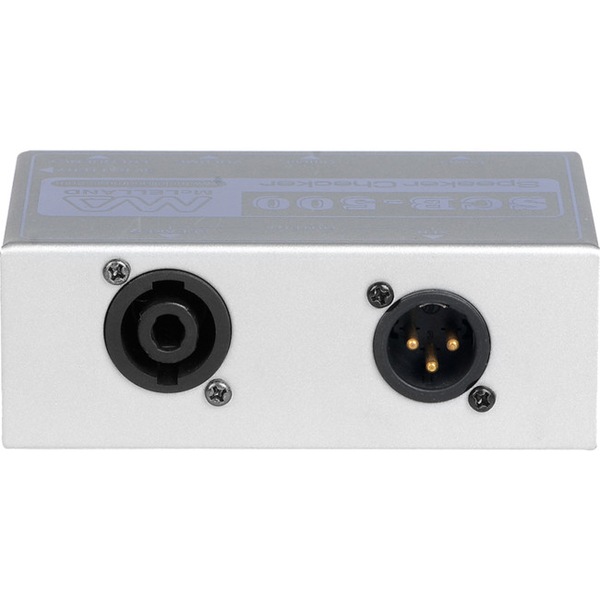

  • Output Jacks: XLR male 3-pole, Speakon 4-pole
  • Output Signal: Sine Wave
  • Adjustable frequency range: 20Hz ~ 20KHz
  • Min. connection impedance at the Speaker Jack: 4 Ohm
  • Output Power At Spaeker Jack: 1W 8 Ohm
  • Frequency Response at XLR Jack: 20-20KHz +/- 1dB
  • Output Level At XLR Jack: 2V
  • Frequency Response at Speaker Jack: 100-20KHz +/- 1 dB
  • Power Supply: 9V Alkaline battery

_


Weight: 0.583
