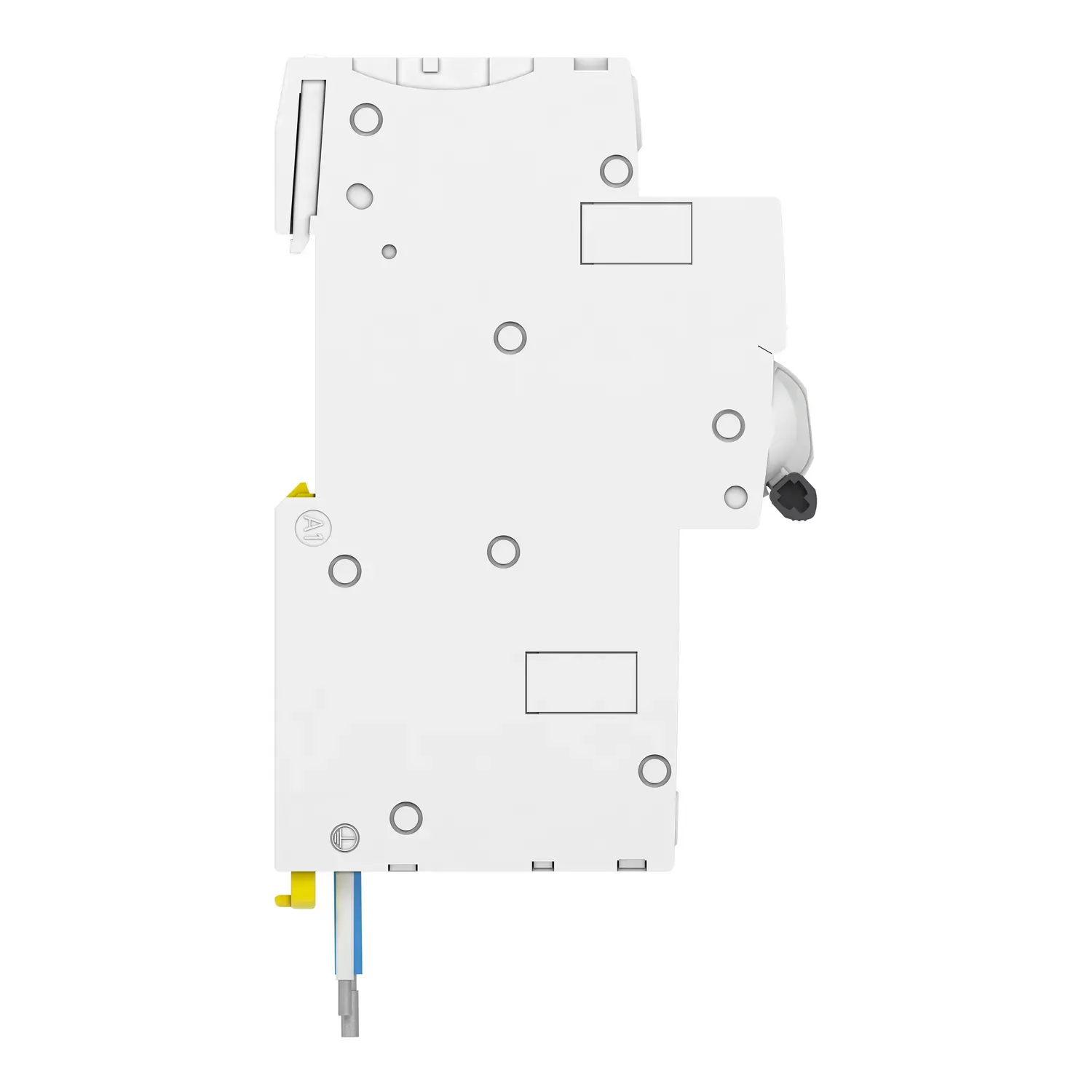

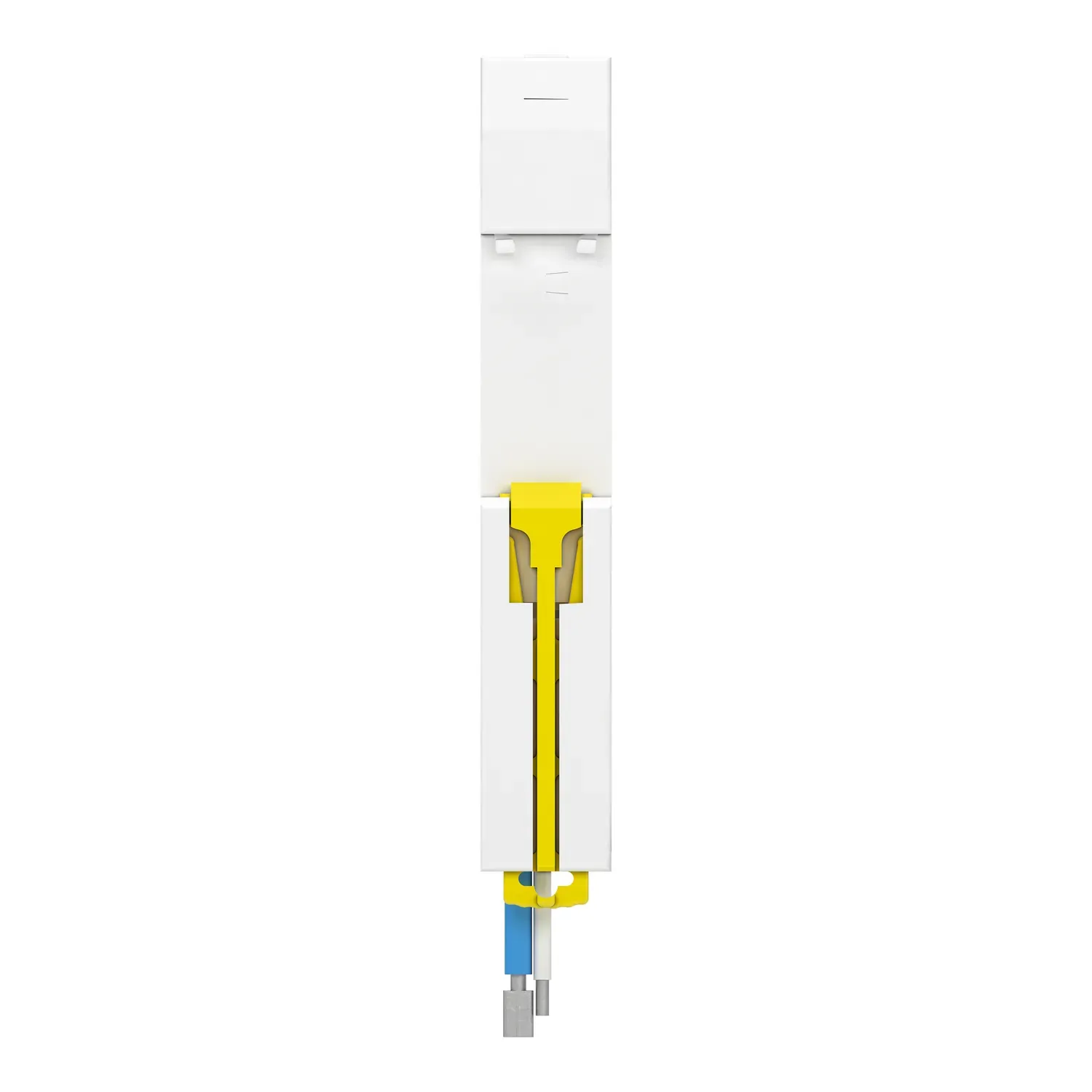

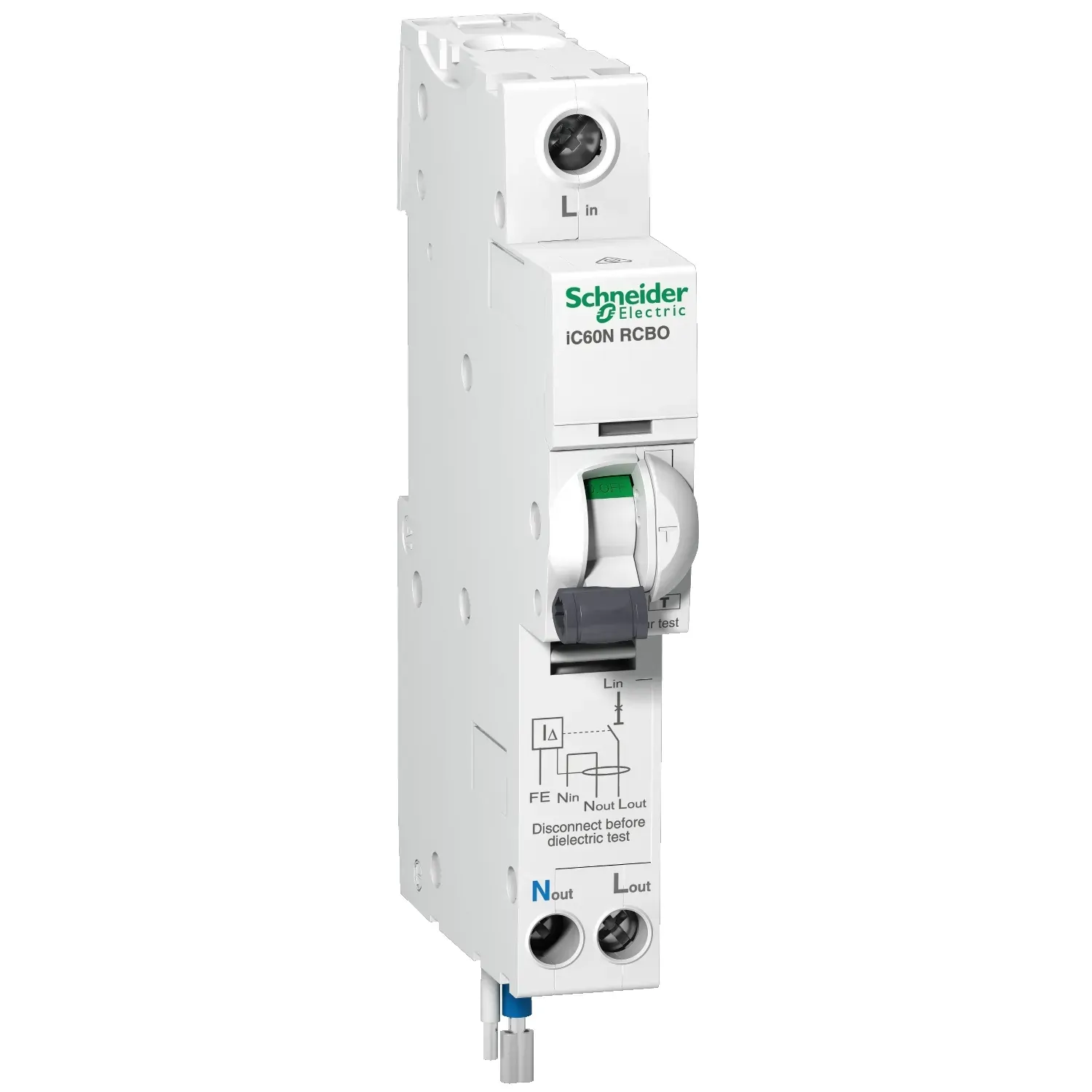

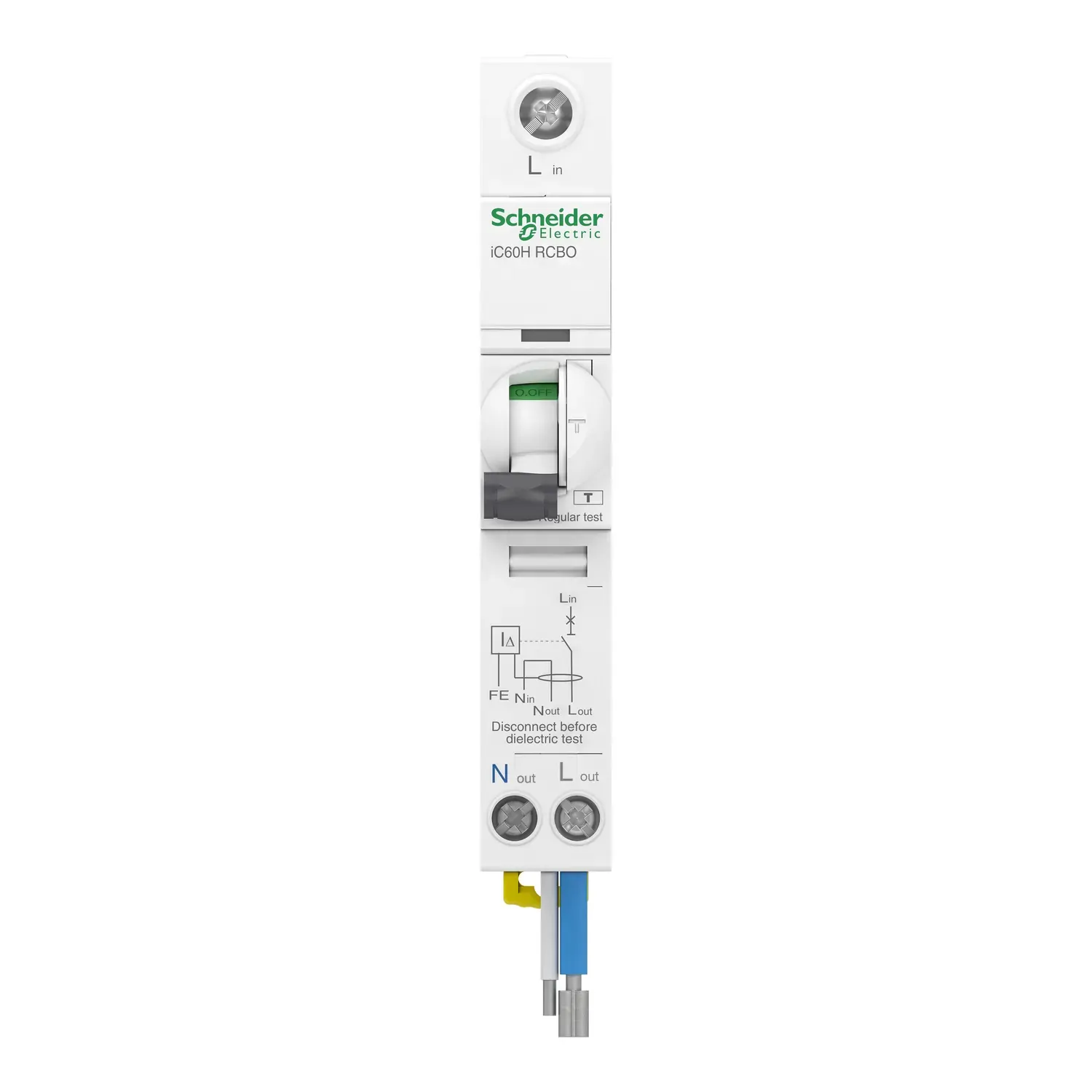

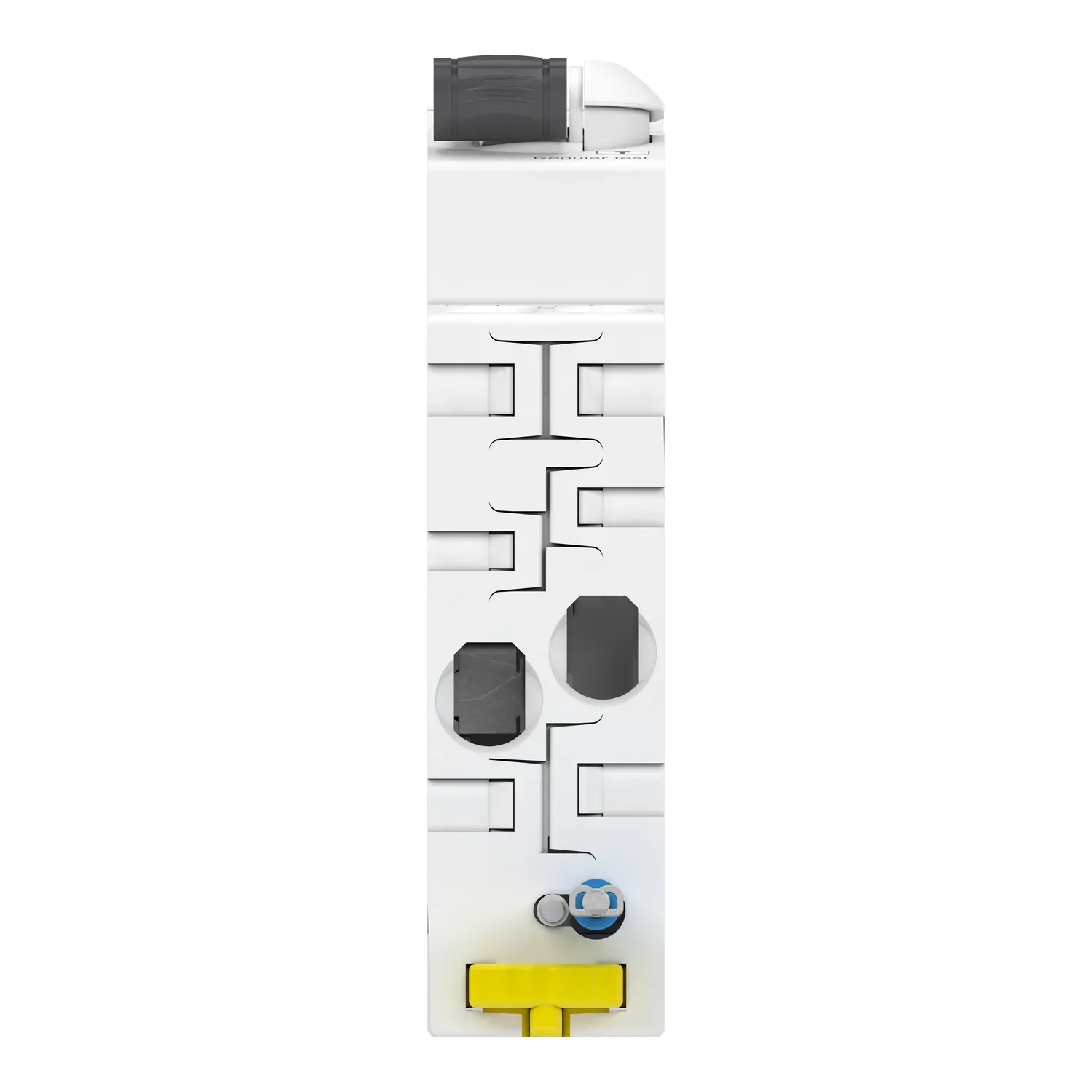

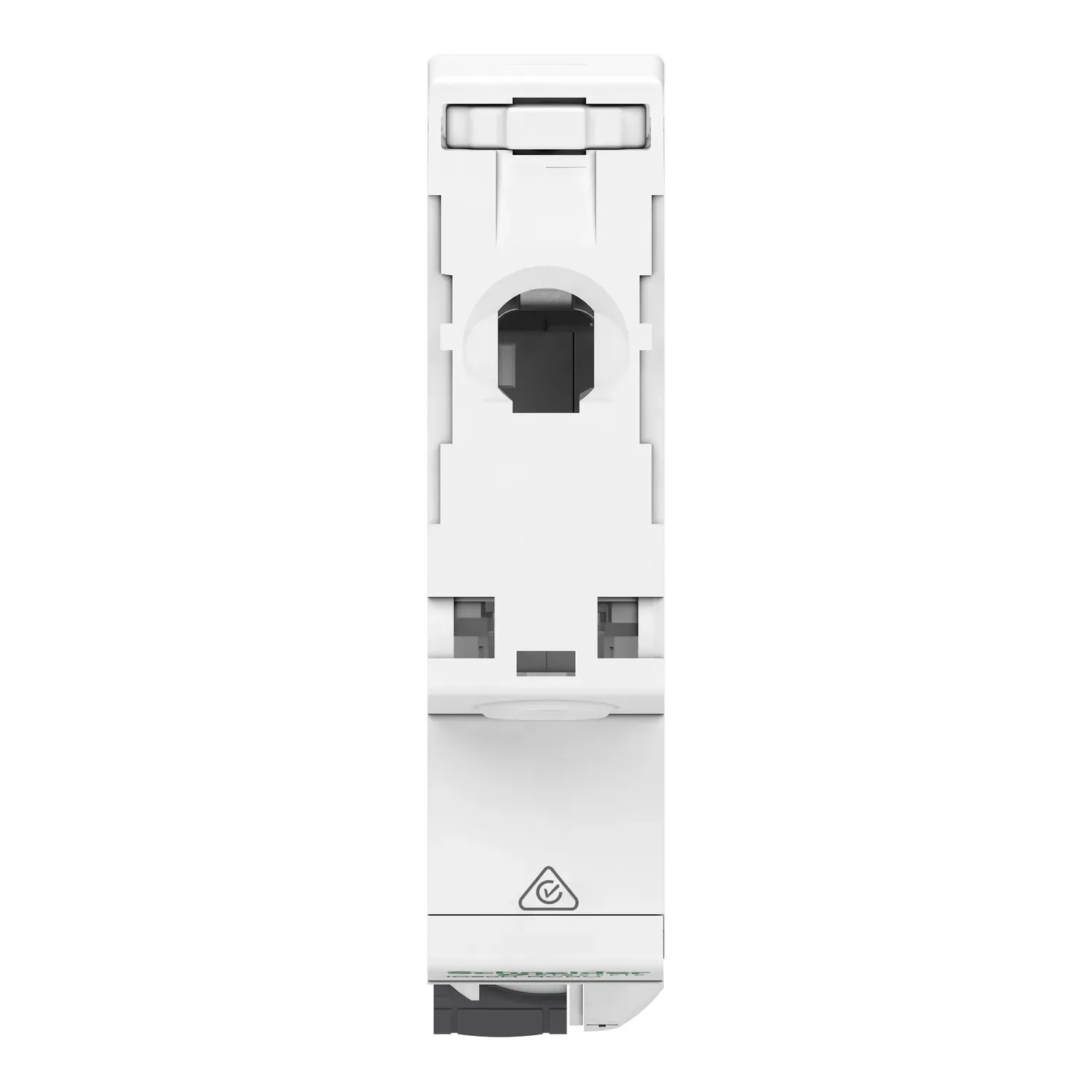

The Schneider A9D61810 is a compact DIN-mounted RCBO that provides combined residual current (earth leakage) and overcurrent protection in one device. With a 10A rating, 30mA sensitivity, and C Curve tripping, it's ideal for protecting final sub-circuits on 230/240V AC networks, particularly where inductive loads like lighting or small appliances are used.

This 1P+Ns RCBO is Type A, detecting both AC and pulsating DC residual currents. It features a 6kA short-circuit breaking capacity, thermal-magnetic trip unit, and instantaneous tripping for quick fault response. The padlockable toggle, clear ON/OFF indicator, and screw-clamp terminals ensure safe operation and reliable installation.

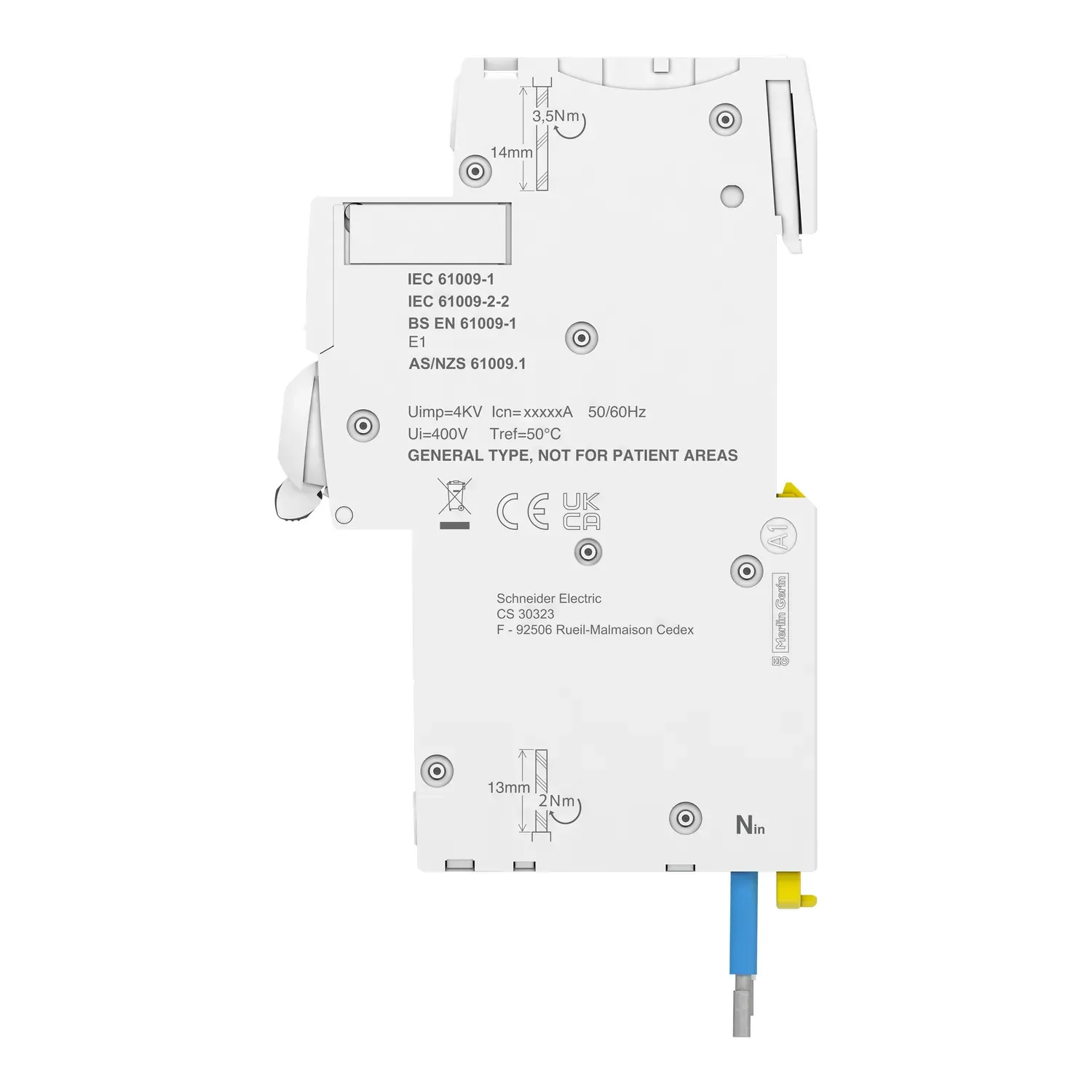

It complies with AS/NZS 61009.1 and IEC 61009-2-2, and is designed for residential and commercial boards requiring robust and compact circuit protection.

A9D61810 Features

• 10A Type A RCBO: Residual current with overcurrent protection for active + switched neutral.
• 30mA earth leakage sensitivity: Protects users from electric shock.
• 6kA breaking capacity: Suitable for general applications with moderate fault current levels.
• Thermal-magnetic trip: Reliable protection against overloads and short circuits.
• Padlockable toggle: ON/OFF locking facility for safe maintenance procedures.
• Standards compliant: Conforms to AS/NZS 61009.1 & IEC 61009-2-2.

A9D61810 FAQ

Q: Can this RCBO be used in TN systems?
A: Yes, it is designed for TN earthing systems.

Q: Does this RCBO offer a visual ON/OFF indicator?
A: Yes, it includes a local ON/OFF indicator with padlock provision.

Q: Is this unit suitable for isolation?
A: Yes, it is suitable for isolation applications.
