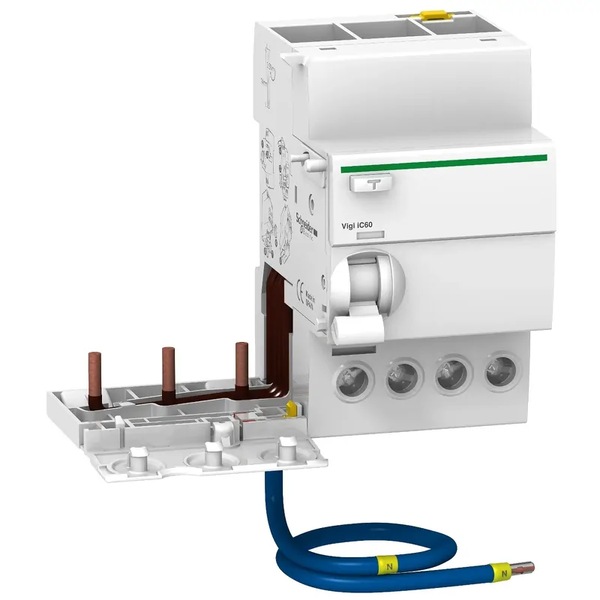

The Schneider Electric A9V02763 Acti9 Vigi iC60 is a modular earth leakage add-on block designed to enhance electrical safety. With 30mA sensitivity, it protects against electric shocks, indirect faults, and fire hazards. Its voltage-independent tripping ensures reliable operation regardless of external power conditions.

This 3P+N unit operates at 400-415V AC and must be paired with an Acti9 iC60 circuit breaker for full protection. A VisiTrip indicator helps quickly identify fault trips, while the DIN rail mountable design ensures easy installation. Featuring tunnel-type terminals for secure wiring and compliant with IEC 61009-1 and IEC 61009-2-1 standards, it delivers both safety and convenience. The unit is IP20 rated (IP40 when enclosed) and has a compact size of 108mm x 91mm x 73.5mm.

• 63A 3P+N earth leakage protection – Shields against electrical shocks and fire risks.
• 30mA sensitivity, Type A – Detects both AC and pulsating DC residual currents.
• Voltage-independent technology – Works reliably without requiring an external power source.
• VisiTrip indicator – Displays fault tripping for quick troubleshooting.
• DIN rail mountable – Clips onto DIN rails for effortless setup.
• Compliant with IEC standards – Meets IEC 61009-1 and IEC 61009-2-1 for safety and performance.

Q: Is this add-on block compatible with all circuit breakers?
A: No, it is specifically designed for use with Schneider Acti9 iC60 circuit breakers.

Q: What does the VisiTrip indicator do?
A: It provides a visual signal when a fault trip occurs, making diagnostics easier.

Q: What is the mounting method?
A: It is DIN rail mountable with a clip-on design for quick installation.
