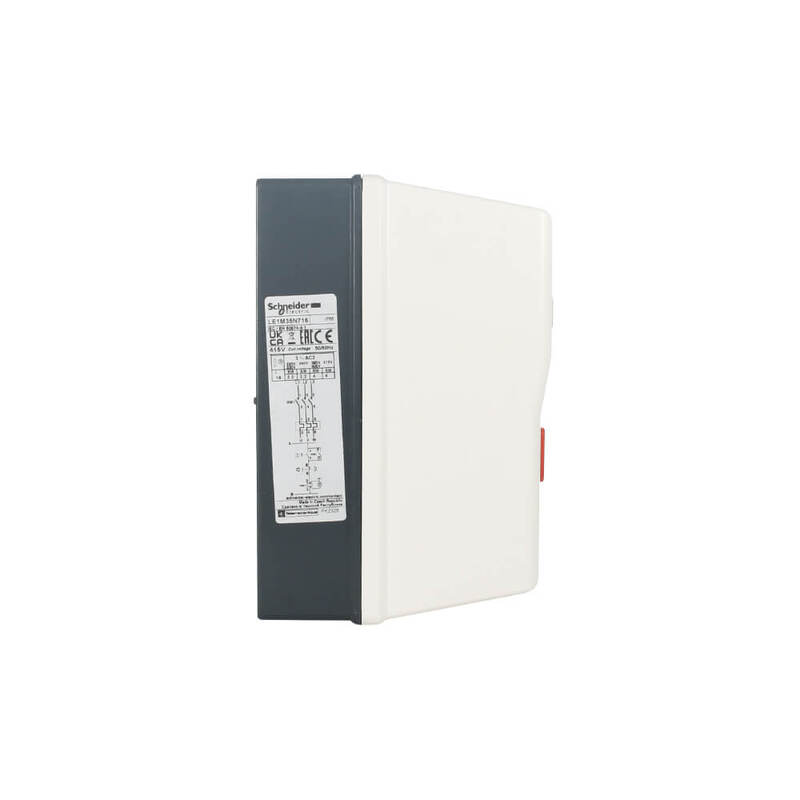

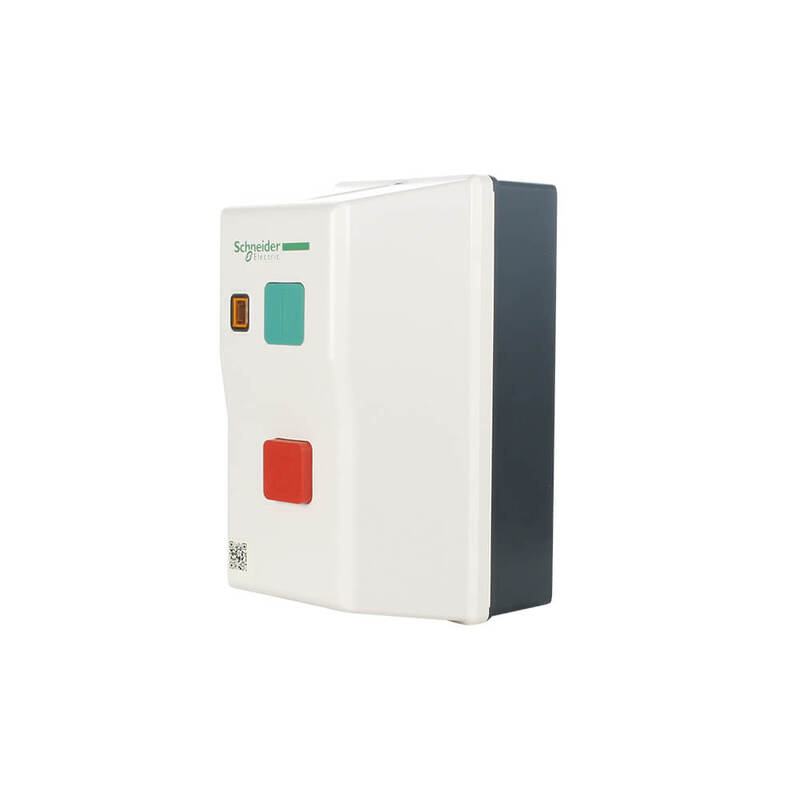

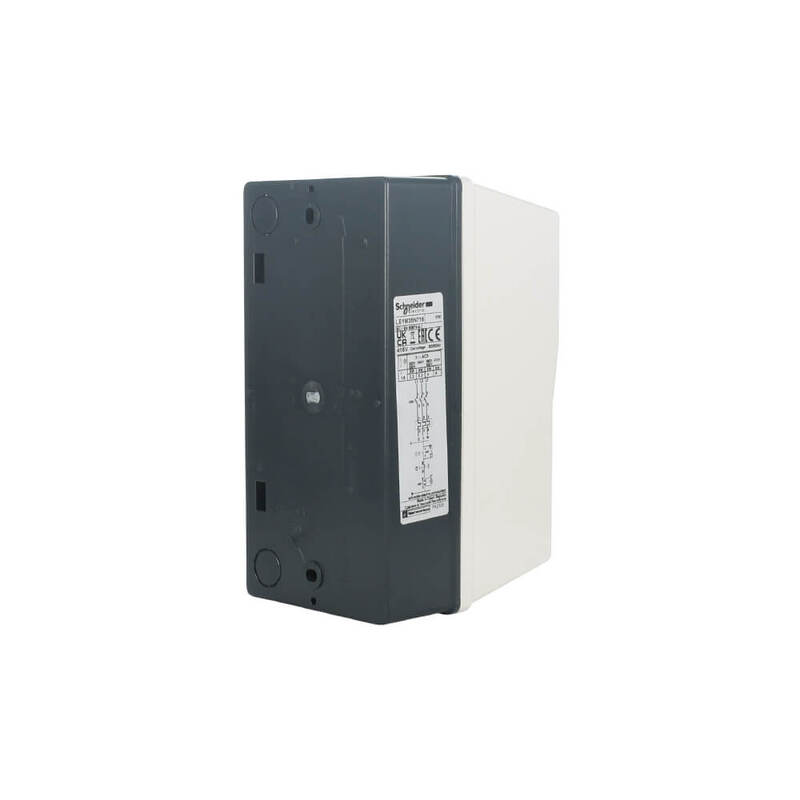

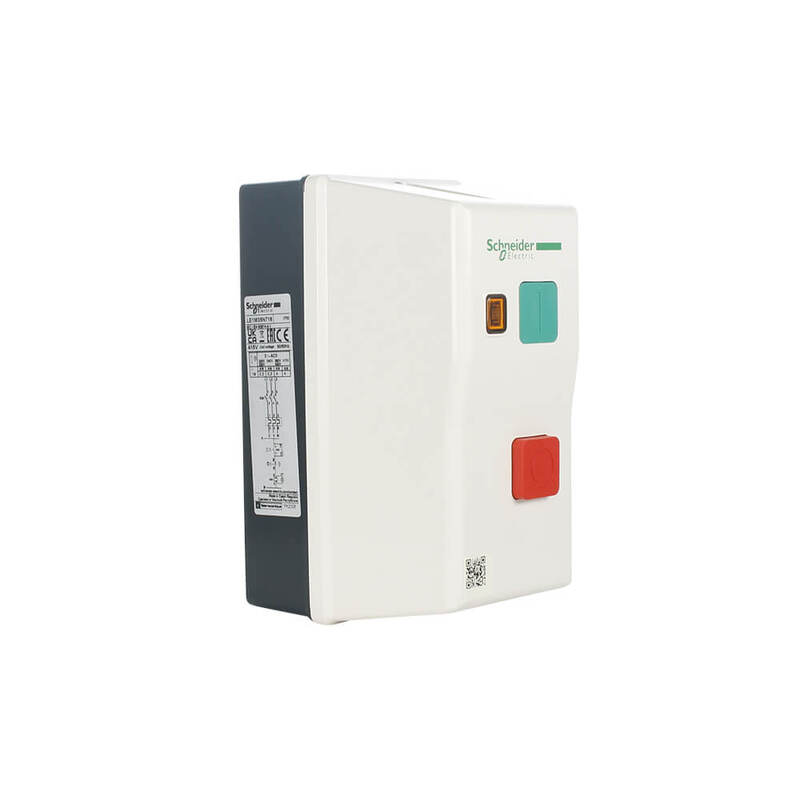

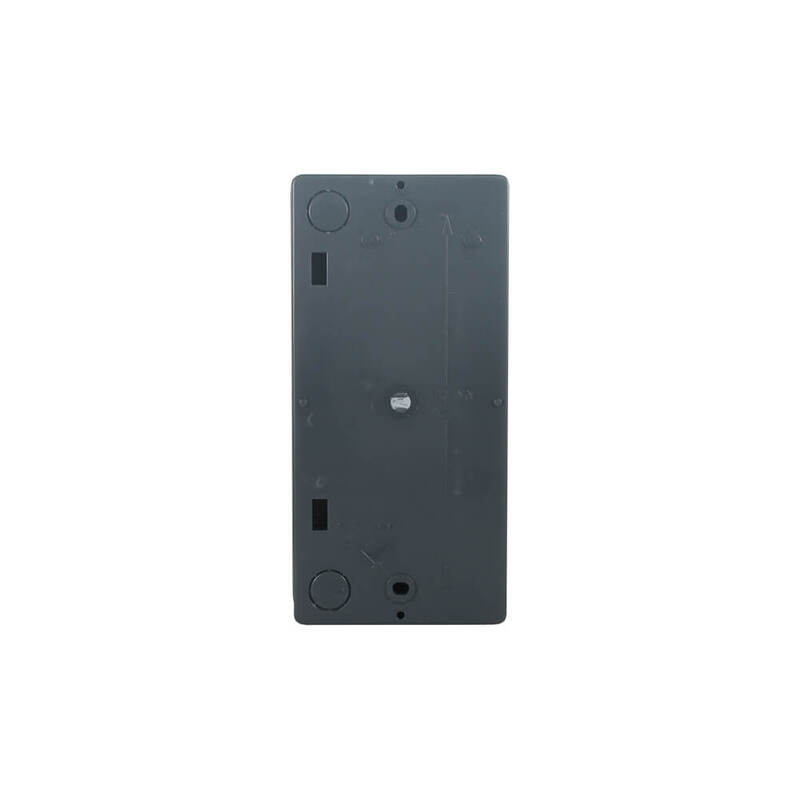

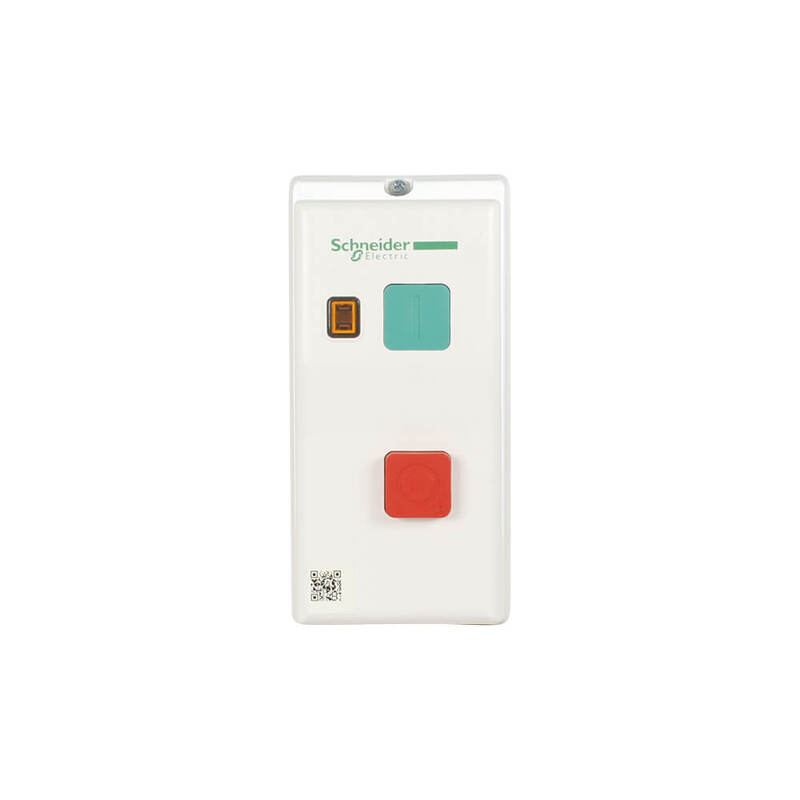

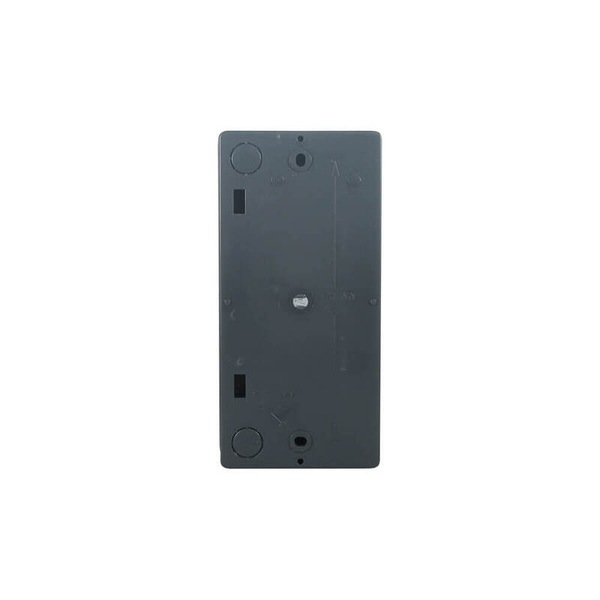

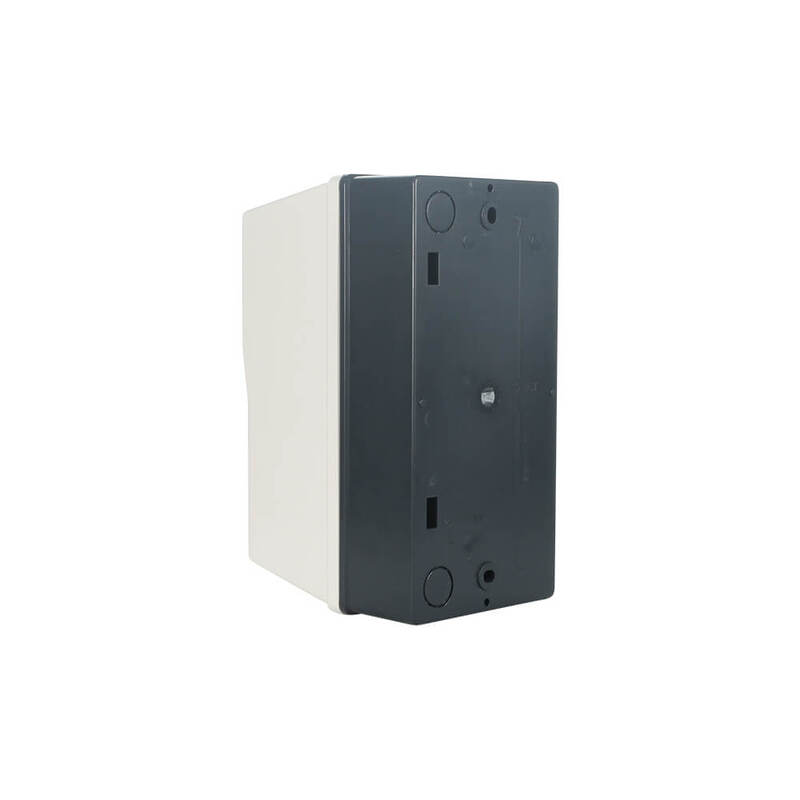

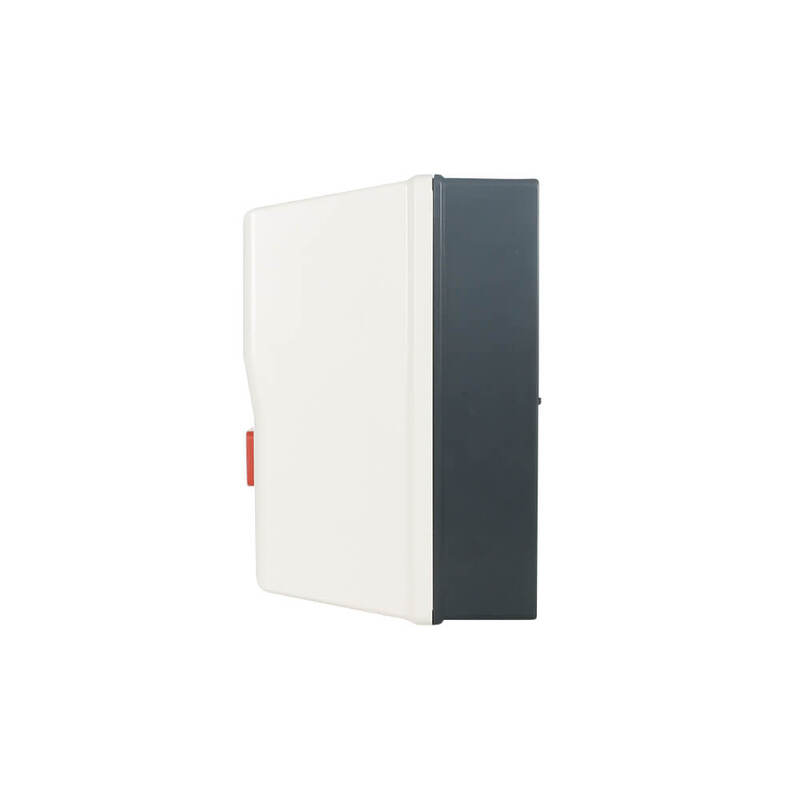

Schneider Electric LE1M35N716 - TeSys enclosed DOL starter 8-11.5A 415V

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 2 items left!
$113.07

Collect 113 Everyday Rewards points

Log in to MyDeal to link your card
$15.95 Australia-wide

Dispatch in 2 business days

Sold & shipped by Sparky Direct Pty Ltd
Secure ways to pay at checkout
Schneider Electric LE1M35N716 | TeSys enclosed DOL starter 8-11.5A 415V

The Schneider Electric LE1M35N716 TeSys enclosed Direct On-Line (DOL) starter is designed to provide reliable motor protection and easy operation. Housed in a durable polycarbonate enclosure, this starter offers high-level protection against water, dust, and mechanical impact, making it ideal for industrial environments.

It operates at 415V and has an adjustable current range of 8-11.5A, ensuring precise motor control and overload protection. The easy-to-use pushbuttons on the front and multiple resetting options (manual and remote) make this starter a practical and versatile solution for motor starting applications.

LE1M35N716 Features:
  • Durable Enclosure: Polycarbonate casing provides superior protection against water, dust, and mechanical impact.
  • Motor Protection: Includes overload relay for reliable motor protection against overload.
  • Easy Operation: Features pushbuttons for convenient control, with manual and remote reset options.
  • Environmentally Friendly: Designed with sustainability in mind.
LE1M35N716 FAQ:

Q: What is the operational current range for this DOL starter?
A: The Schneider LE1M35N716 operates in the current range of 8-11.5A.

Q: Is the enclosure durable?
A: Yes, the polycarbonate enclosure provides excellent protection against dust, water, and mechanical impact.

Q: Can the starter be reset remotely?
A: Yes, it offers both manual and remote resetting options.

Specifications:

Specifications Details
Range TeSys
Product or component type Enclosed DOL starter
Device application Standard
Utilisation category AC-3
Device composition Contactor
Earth terminal
Neutral terminal
Thermal overload relay
Thermal protection adjustment range 8…11.5 A
Motor power kW 2.2 kW at 240 V AC 50/60 Hz
4 kW at 415 V AC 50/60 Hz
2.2 kW at 220/230 V AC 50/60 Hz
4 kW at 380/400 V AC 50/60 Hz
[Uc] control circuit voltage 415 V AC 50/60 Hz
Control type Push-button start green I
Push-button stop/reset red O
Complementary
Local signalling Operating: LED (yellow)
Cable entry number 2 ISO20 top
2 ISO25 top
2 Pg 13 top
2 Pg 21 top
2 ISO20 bottom
2 ISO25 bottom
2 Pg 13 bottom
2 Pg 21 bottom
2 Pg 16 top
2 Pg 16 bottom
Width 78 mm
Height 160 mm
Depth 108 mm
Net weight 0.6 kg
General
Material ABS (acrylonitrile-butadiene-styrene)
IP degree of protection IP65 conforming to IEC 60529
Standards IEC 60947-4-1
Ambient air temperature for operation -5…40 °C
Product certifications UKCA

Warranty starts from Invoice Date

Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct

GTIN: 3389110781212

Estimated Delivery Time Frame:1-7 Business Days
