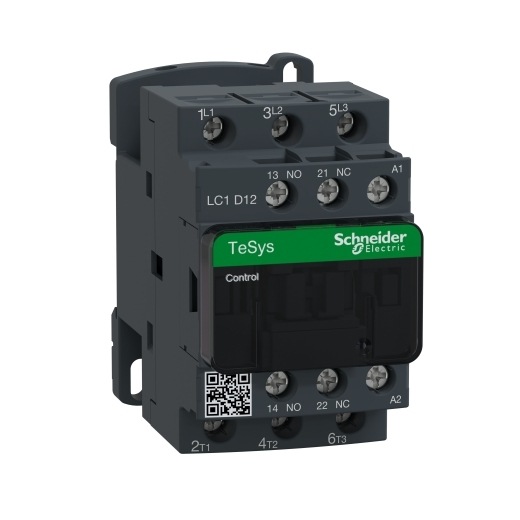

Schneider TeSys 3P Tesys D Contactor 12A Ac3 5.5Kw 1No 1Nc 240Vac Coil - LC1D12U7

Image 1
Hurry! 6 items left!
$48.37

Collect 48 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide

Dispatch in 2 business days

FREE SHIPPING when you spend over $495

Exclusive to products sold by Direct Wholesale Supplies

Sold & shipped by Direct Wholesale Supplies
Secure ways to pay at checkout
TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Features

AC & DC Coils 50/60 Hz available for whole range
DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A
DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil
Various types of connection available:
o Screw clamp terminals
o Everlink (40 to 80 A)
o Spring terminals (9 to 38 A and on control terminal up to 65 A)
o Lugs terminals
o Faston terminal (9 to 12 A)
High making and breaking capacity
1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors
Up to 30 million mechanical operation cycles
Electrical cycles up to 3600 cycles per hour at ambient temperature
No derating up to 3000 m altitude
Working temperature: -25 to 60
Dimensions: 4 width sizes available to cover all ratings
45 mm to 38 A
55 mm from 40 to 65 A
85 mm from 80 to 95 A
120 mm from 115 to 150 A

Applications


TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA
These contactors can be used to create motor starters for any type of application

GTIN: 3389110349344
