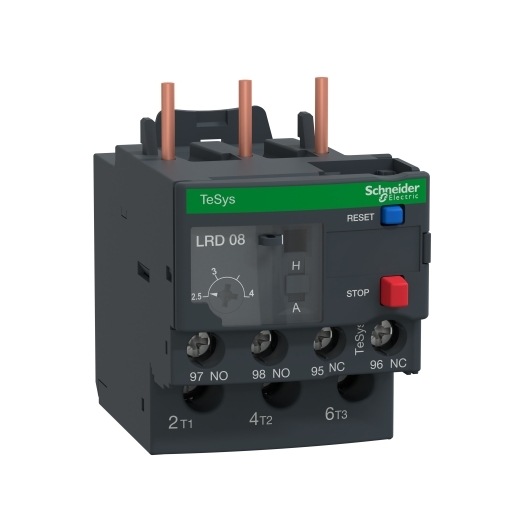

Schneider Tesys D Thermal Overload 2.5-4.0A Cl10A - LRD08

Image 1
Hurry! 2 items left!
$61.07

Collect 61 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide

Dispatch in 2 business days

FREE SHIPPING when you spend over $495

Exclusive to products sold by Direct Wholesale Supplies

Sold & shipped by Direct Wholesale Supplies
Secure ways to pay at checkout
Pay in 4 interest-free payments of $15.27 with PayPal

Popular Products

TeSys LRD thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 10A, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Features

Manual or automatic reset Sealable flap Pre-wiring kit Direct mounting with TeSys D contactors Terminal block for separate mounting Remote electrical reset available as an option Connectors: spring terminal, screw clamp, terminal block EverLink (LRD3) Class 10 A & 20

Applications

TeSys LRD relays are used across industry, infrastructure, building, etc., to provide: Protection against motor overload and loss of phase. The perfect complement of magnetic only circuit breakers to manage thermal protection for motors. Selectable manual, remote or auto reset tripping options for better process management.

GTIN: 3389110346787
