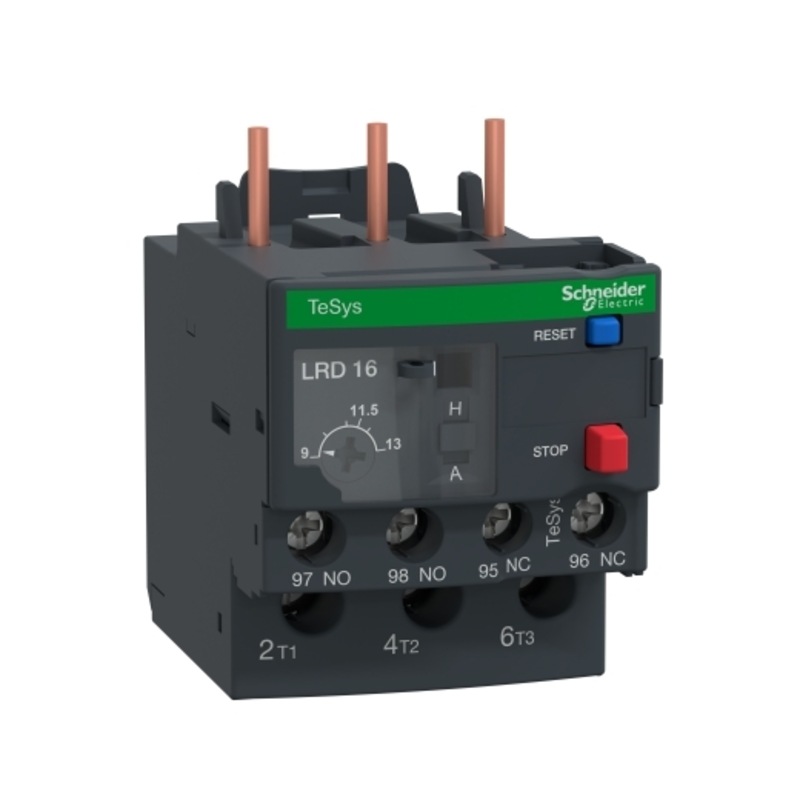

TeSys LRD thermal overload relay, 13A/690V, thermal setting range 9-13A, tripping class 10A, for protection of 3-phase motors 5.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D12-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Features

Manual or automatic reset
Sealable flap
Pre-wiring kit
Direct mounting with TeSys D contactors
Terminal block for separate mounting
Remote electrical reset available as an option
Connectors: spring terminal, screw clamp, terminal block EverLink (LRD3)
Class 10 A & 20

Applications

TeSys LRD relays are used across industry, infrastructure, building, etc., to provide:
Protection against motor overload and loss of phase.
The perfect complement of magnetic only circuit breakers to manage thermal protection for motors.
Selectable manual, remote or auto reset tripping options for better process management.
