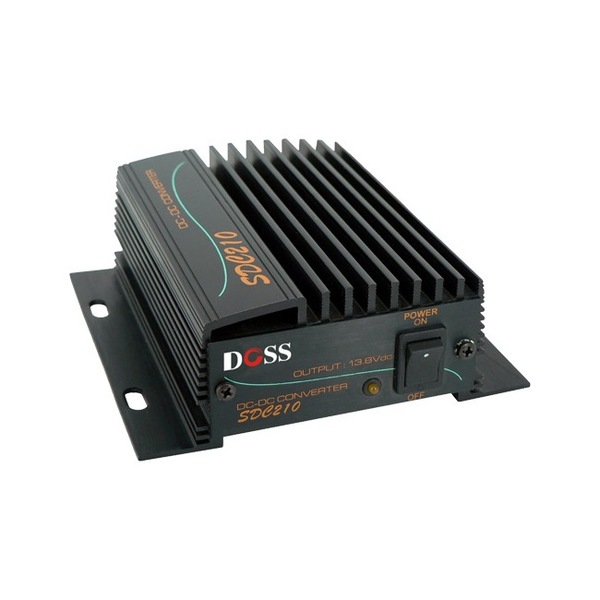

MANSON SDC210 DC-DC Converter Switching 24V Output 13.8V 10A Max 8A Contin 13.8V Regulated Output

Image 1
Hurry! 12 items left!
$76

Collect 76 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview
DC-DC CONVERTER SWITCHING 24V

This series of DC-DC Switching Mode converters are built to meet the high current applications at 13.8V.

In addition to the high efficiency, the low profile construction makes use of the heat sinks as main body of the robust, rugged housing of the unit. The OVP (Over Voltage Protection) protects sensitive electronic equipment.


Features
  • Input 22-30V DC, Output 13.8V DC, Output 8A (Cont.) / 10A (Peak)
  • 13.8V Regulated Output Voltage
  • 22-30V DC Input voltage
  • High Efficiency 88%
  • High Power Density
  • Output over voltage protection
  • Short Circuit and Overload Protection
  • LED Power ON indicator
  • EMC Interference Immunity
  • Power ON/OFF Switch

Specifications
Specifications

Input Voltage Range 22V to 30V DC
Output Voltage 13.8V DC
Continuous Output Current 8A
Maximum Output Current 10A
Ripple & Noise (P-P) 200mV
Load Regulation 500mV
Line Regulation 20mV
Output Voltage Protection Over Voltage Protection
Efficiency 88%
Protection Short Circuit Protection, Overload Protection
Indicators Power On LED
Input Connection Type Cable
Output Connection Type Cable
Cooling System Natural Convention
Input Fuse Type Standard Car Blade Fuse
Approvals CE EN55014, EN55022
Dimensions (W×H×D) 125mm × 47mm × 20mm
Weight 0.55 Kg

Weight: 0.8
