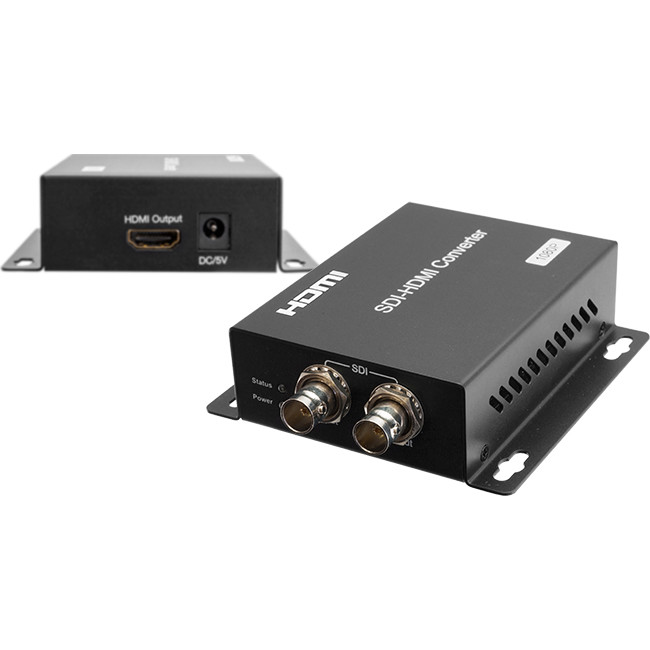

DOSS SDI2HDMI SDI To HDMI Converter SDI/HD-SDI To HDMI SDI TO HDMI CONVERTER

DOSS SDI2HDMI SDI To HDMI Converter SDI/HD-SDI To HDMI SDI TO HDMI CONVERTER

Limited Stock

$116

Collect 116 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

CCTV systems are moving towards digital video transmission via SDI or HD-SDI. With this in mind, and the fact most consumer Full HD Displays only have HDMI inputs, the SDI2HDMI performs a vital role in monitoring your digital CCTV system from your home entertainment system.

The SDI loop-out means you can connect your camera to your home video distribution system and your Digital CCTV system simultaneously without lag!

Why would I need to connect my CCTV system to my TV?

Most modern TVs feature a PIP (or Picture in Picture) mode where an alternate video input can be displayed on top of your current picture. This means you can keep an eye on your football game while checking your CCTV system to see who is at the door!

Features

SDI/ HD-SDI to HDMI
Equalized Looping SDI/ HD-SDI output
Supports 1080p@23.9/ 24/ 25 / 29.97/ 30/ 50/ 59.94/ 60Hz
1080i@50/59.94/60Hz
720P@50/59.94/60Hz
576i @50Hz
480i@59.94/ 60Hz
HDCP 1.4 Compliant
Uses 5V power (power adaptor included)

Specifications

Operating Temperature Range	-5 to +35°C(+23 to +95°F)
Operating Humidity Range	5 to 90%RH (No Condensation)
Input Formats	1080i @ 50/59.94/60Hz 1080p @ 25Hz 1080p @ 29.97Hz 1080p @ 30Hz 1080p @ 60Hz
Video Input	3G-SDI / HD-SDI / SDI
Outputs	HDMI SDI/HD-SDI Loop-out (75 ohm, unterminated)
HDMI	Standard Type A connector Video: 8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper) Audio: 24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
HDCP	Compliant HDCP
Power consumption	2.5W (Maximum)
Dimension (L×W×H)	95×95×29mm
Net Weight	245g

Click on images for larger version

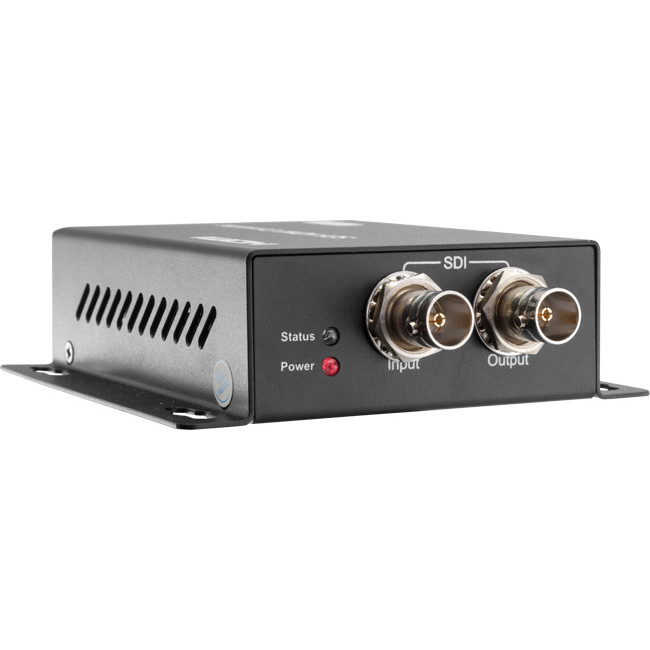

SDI input and output with LED indicators for power andstatus

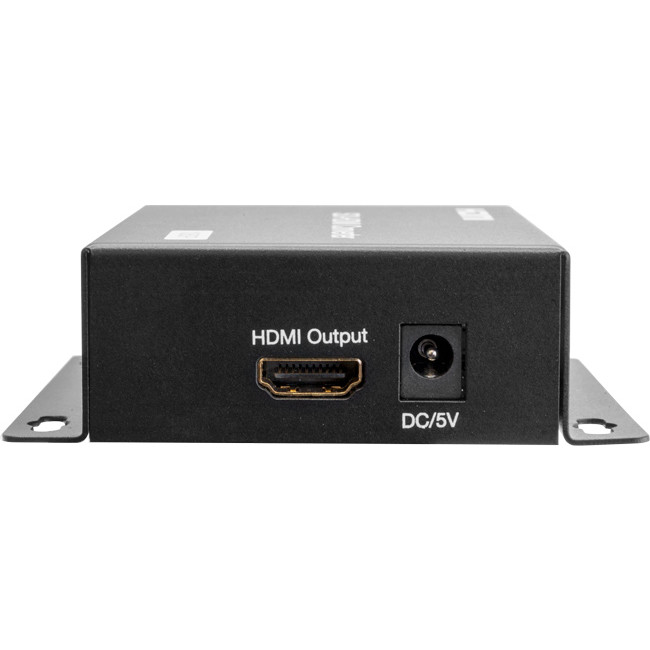

HDMI output and 5V DC power socket
