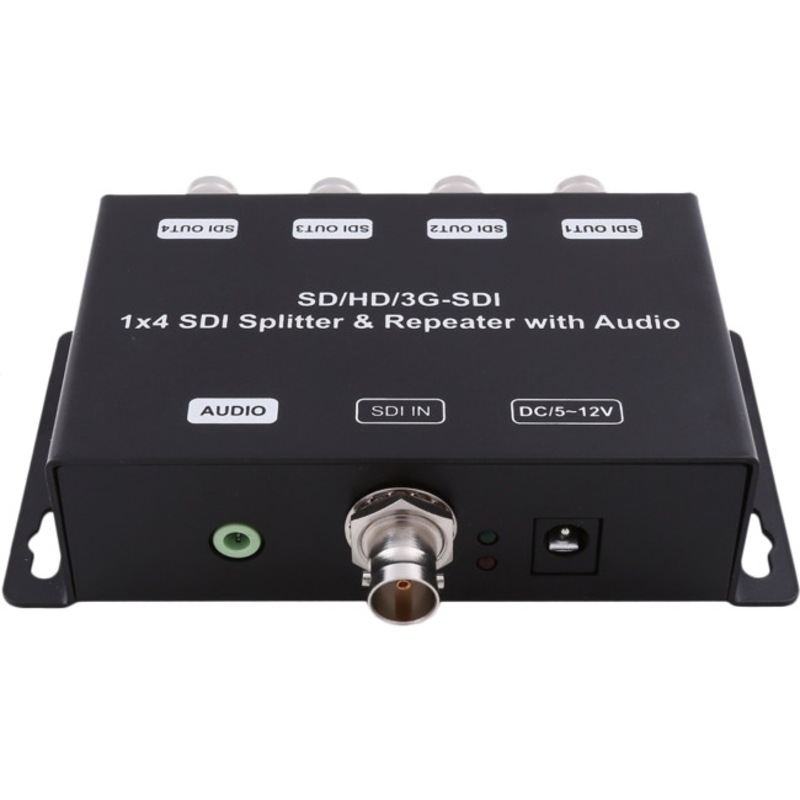

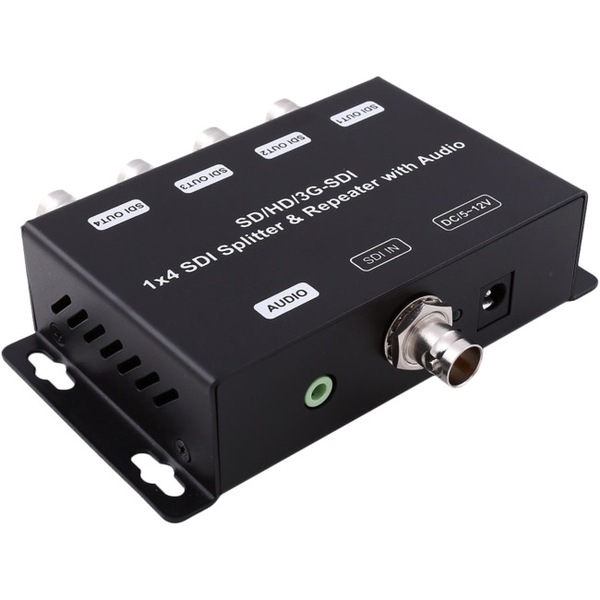

DOSS SDI4SP 4-Way SDI Splitter & Repeater 1-In 4-Out W/ Audio Extraction With Audio Extraction

DOSS SDI4SP 4-Way SDI Splitter & Repeater 1-In 4-Out W/ Audio Extraction With Audio Extraction

Limited Stock!

Price	$196
	Collect 196 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Features

Distributes 1 SDI input to 4 SDI outputs simultaneously
With Audio extraction (3.5mm stereo audio output)
Single unit can transmit up to 120m(Beldon 1694A)
Re-clocking function capability---unlimited repeater connection
Support SDI Standard :SD-SDI,HD-SDI, 3D-SDI
Data Rates: 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
DC 5V 1A (included, Power consumption less than 2W)
With mounting ears

Wiring diagram

Specifications

Re-clocking Function	Yes
SDI Standards	SD-SDI, HD-SDI, 3G-SDI
HD/SD-SDI Detection	Auto
Supported Protocols	SMPTE 259M SMPTE 292M SMPTE 424M
Data Rates	270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
Video Support	480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz, 1080p@23.98/24/25/29.97/30/50/59.94/60hz
SDI Signal Type	SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance	75 ohms
Cable Equalization	HD-SDI up to 120m SD-SDI up to 200m Unlimited repeater connection
Audio Sampling rate	48Khz
Impedance	75 ohms
Input	1x BNC [SDI]
Output	4x BNC [SDI], 3.5mm stereo audio jack
Power Adapter	5V1A DC
Power Consumption(Max)	2W
Dimension(LxWxH)	L115xW64xH30mm
Operating Temperature	0°C ~ 40°C
Storage Temperature	-20°C ~ 60°C
Relative Humidity	20~90% RH (no condensation)
Housing Material	Metal case

Weight: 0.537
