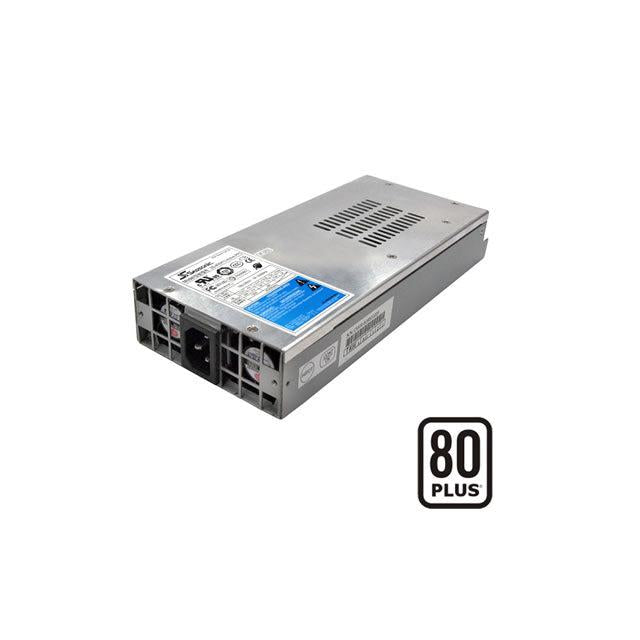

SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)
,gravity=Center,allowExpansion)
Collect 273 Everyday Rewards points
Collect 273 Everyday Rewards points
Features:
- Specification compliance: Intel EPS12V
- Forward converter circuit
- High efficiency and reliability for industrial level
- Easy swap connector design
- High reliability ball-bearing fan
- Low ripple & noise
- Smart & Silent Fan Control (S2FC)
- Zero minimum load on 3.3V rail
- Short circuit protection on all outputs
- Overvoltage protection
- Overpower protection
- 100% hi-pot test
- 100% burn-in, high temperature cycled on/off
- PFC harmonics compliance: IEC1000-3-2 EN61000-3-2 standards
Dimension: L235 x W100 x H40mm (9.3 x 3.9 x 1.6 )
Fan type: 38 x 38mm
Electrical Specifications:
- Input frequency: 50 / 60 Hz
- Inrush current, cold start: 100A max.
- Efficiency, 220-240VAC, full load: 83% typical
- Efficiency, 100-120VAC, full load: 80% typical
- Dielectric withstand, input to frame/ground: 1800 VAC, 1 sec.
- Dielectric withstand, input to output: 1800 VAC, 1 sec.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple/noise: 1%
- MTBF, full load: >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC, BSMI
EMC: CE, FCC, C-tick
Package contents:
1x SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)
GTIN: 4711173870449
