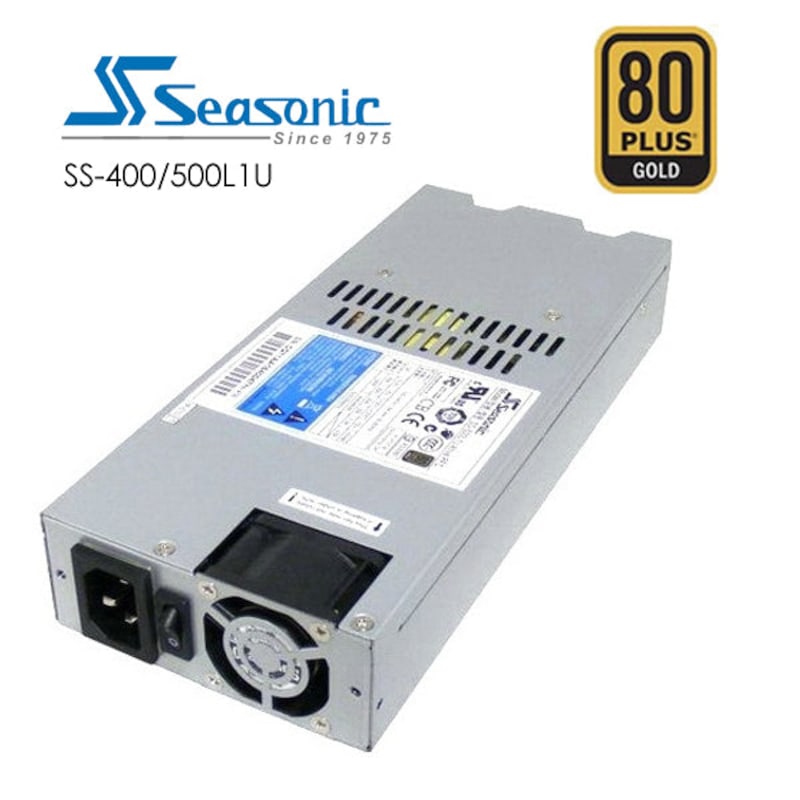

SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

Image 1
$369.98

Collect 369 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Auzzi Store
Secure ways to pay at checkout

Switch Mode Power Supply-Intel EPS 12V-SS-400/500L1U Active PFC



Features:



Specification compliance: Intel EPS 12V



DC-to-DC converter design



High efficiency and reliability



Low THD



Low ripple & noise



Super low noise fan control



Short circuit protection on all outputs



Overvoltage protection



Overpower protection



100% hi-pot test



100% burn-in, high-temperature cycled on/off



DC Outputs:



Model: SS-500L1U Active PFC



DC Outputs:





















































+3.3V



+5V



+12V(Combined)



-12V



+5Vsb



20A



20A



40A



0.3A



2.5A



100W*



480W



3.6W



12.5W



(Remarks: * Combined +3.3VDC & +5V DC maximum power)

Total Power: 500W



Input Type: Full range



Electrical Specifications:



Input frequency: 47/63 Hz



Inrush current, cold start: 100A max.



Efficiency at normal input voltage: > 87%



Line regulation: +/-1% typical



Load regulation: +/-5% typical



Cross regulation: +/-5% typical



Ripple/noise: 1%



MTBF, full load: >100K hours (Excluding the DC fan)



Power Factor Correction: Active PFC 99% typical



Certifications:



Safety: CUL, UV, CB



EMC: CE, Fcc, C-Tick



Specifications:



Dimension: L235 x W100 x H40mm



Connectors: Customized modular cables



Package contents:



1x SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

GTIN: 4711173871859
