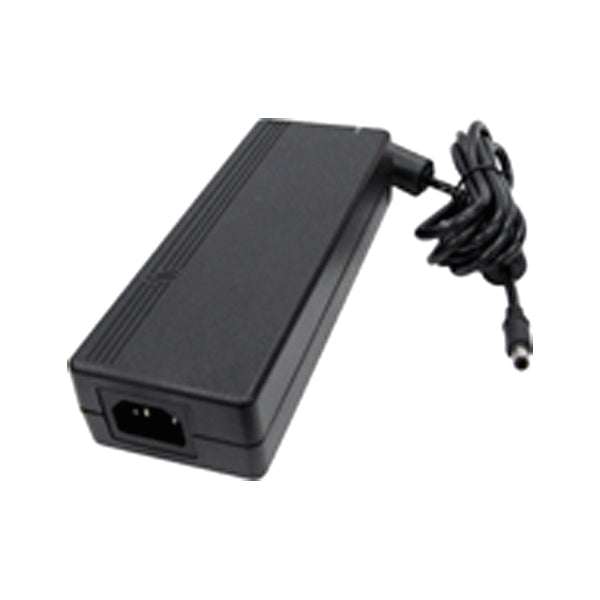

Seasonic Wall Mount Switching Adapter (SSA-1201-24)
,gravity=Center,allowExpansion)
Collect 131 Everyday Rewards points
Collect 131 Everyday Rewards points
Features:
Universal input
Japanese Capacitor
High efficiency 87%
Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
Overvoltage protection
Overcurrent protection
Short circuit protection
Over Thermal protection
No-load consumption: 0.5 W
Output Specifications:
Model | Output power | Min. Load | Max. Load | Total power | Efficiency |
SSA-1201-24 | 24V | 0A | 5 | 120W | 87% |
Dimension:
L174 W65 H37 mm (L6.85 W2.56 H1.46 inch)
General Specifications:
Input voltage range: 90~264 Vac
Input frequency: 47~63 Hz
Input current: 2A (rms)
Efficiency: 87% Average
Leakage current: 3.5 mA max.
Safety:
Safety | EMI/EMC | |||||||||||||||
CEC | CB | CUL | UL | CCC | DEMKO | FIMKO | NEMKO | SEMKO | TUV | cTUVus | VDE | PSE | BSMI | C-tick | CE | FCC |
V | V | V |
| V |
|
|
|
| V |
|
| V | V | V | V | V |
(V = certificate ready; P = certificate pending; V * = not apply to all models)
Package contents:
1x Seasonic Wall Mount Switching Adapter (SSA-1201-24)
MPN: V28-PSUSEASSA-1201-24
