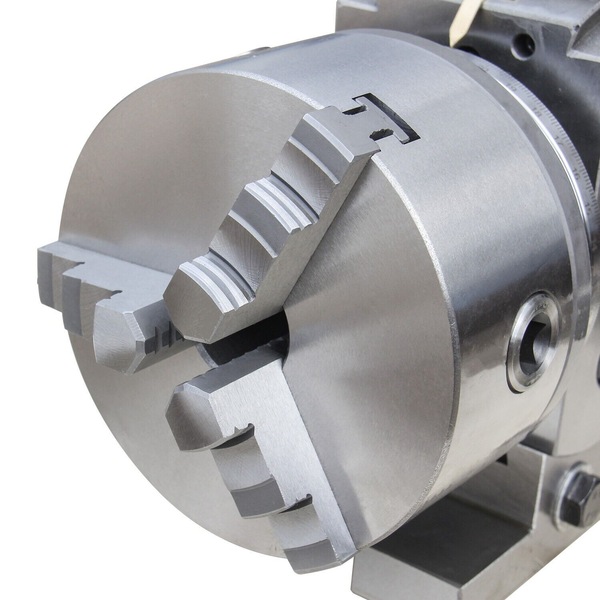

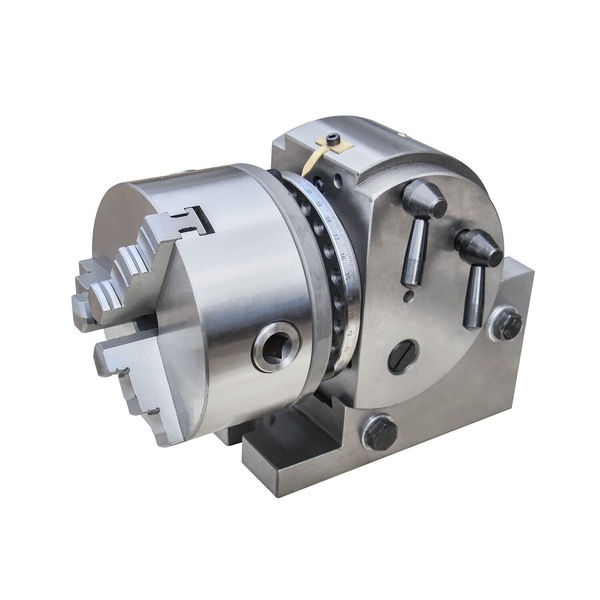

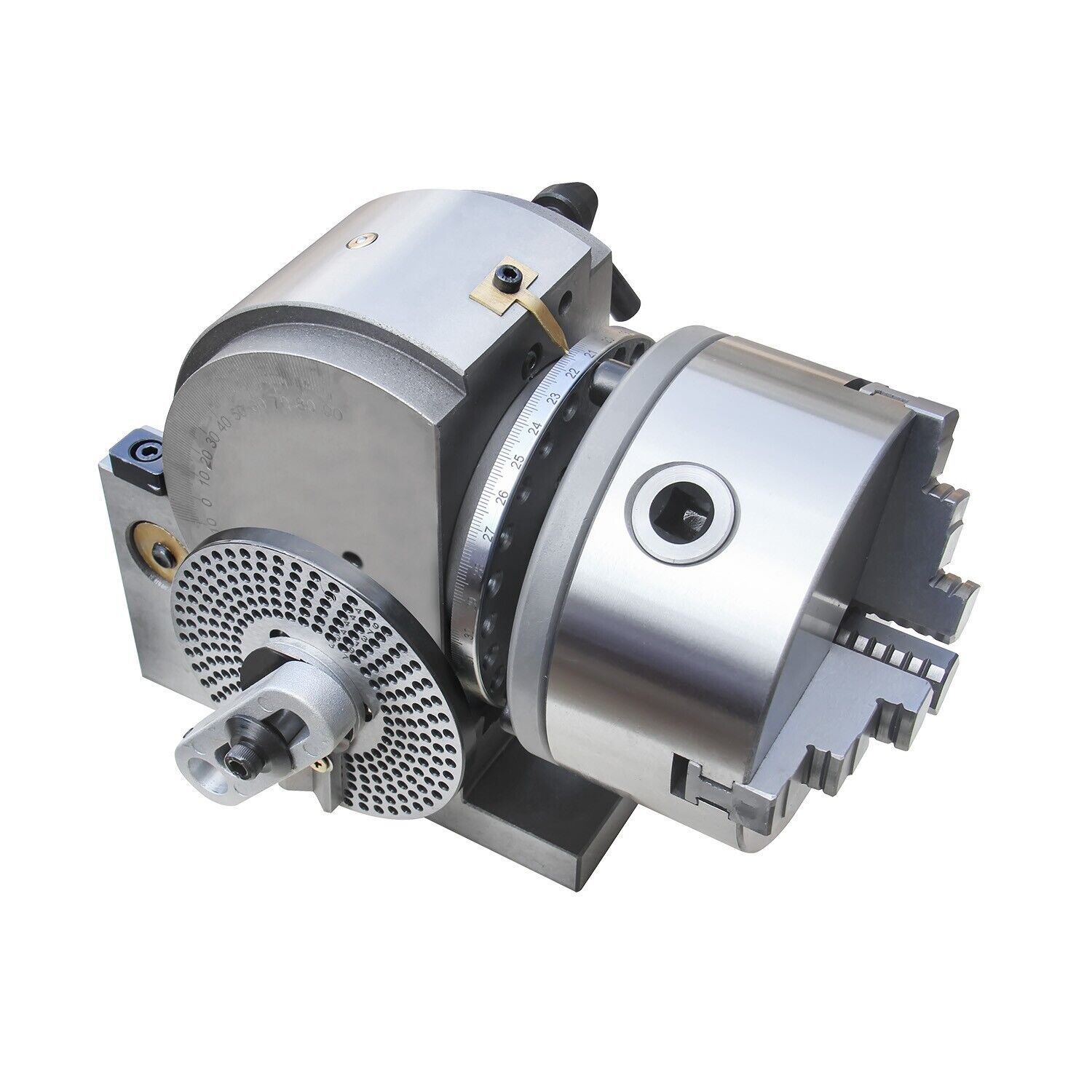

Industrial Semi-Universal dividing head with 3 jaw chuck, 128mm center height

Features

• BS-1 dividing head is suitable for direct and indirect indexing
• MT3 spindle taper
• The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexing
• Worm and worm wheel ratio 40:1

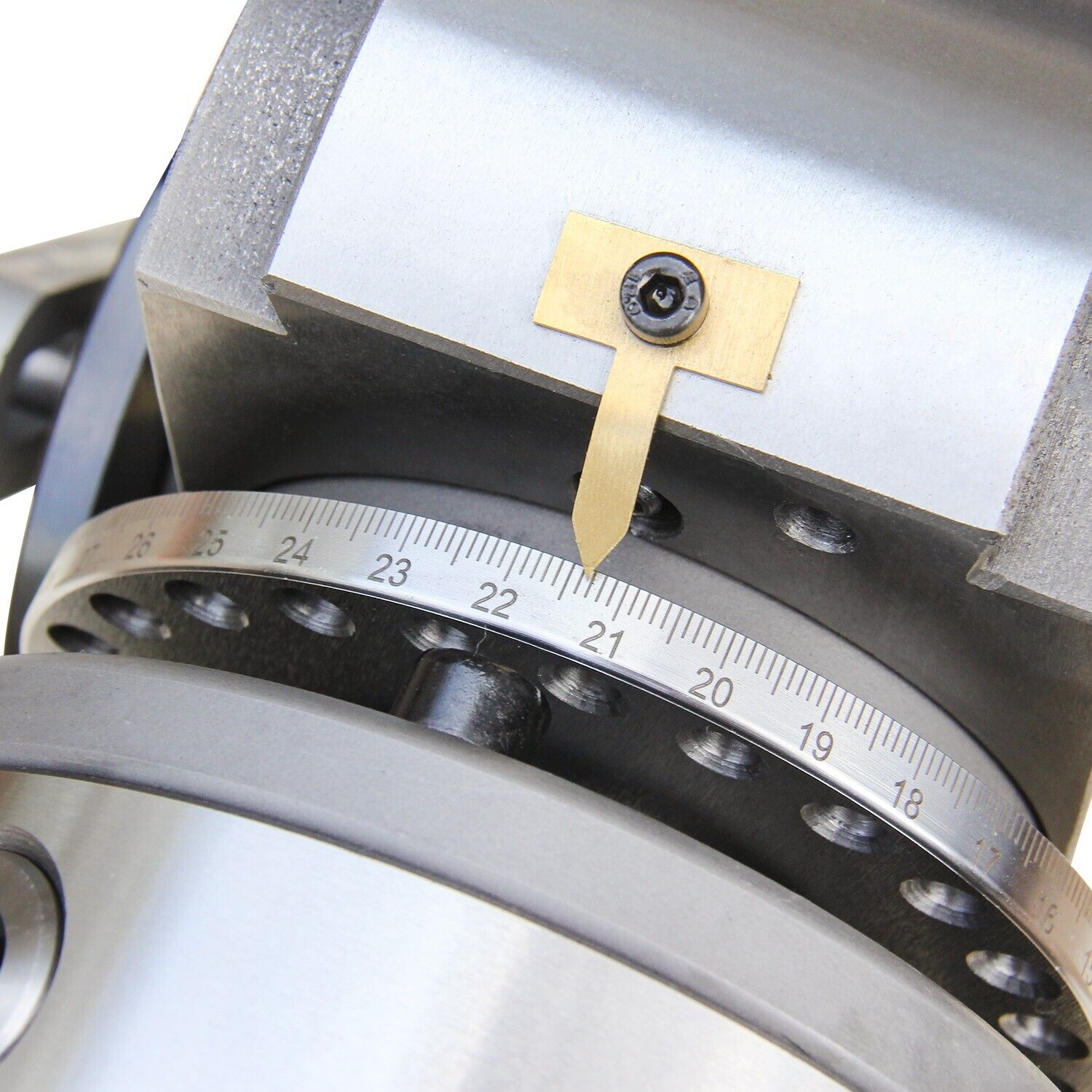

• Tilt from horizontal to vertical (-10° to +90°)
• Each divide from 2 to 50 and many divides from 51-380

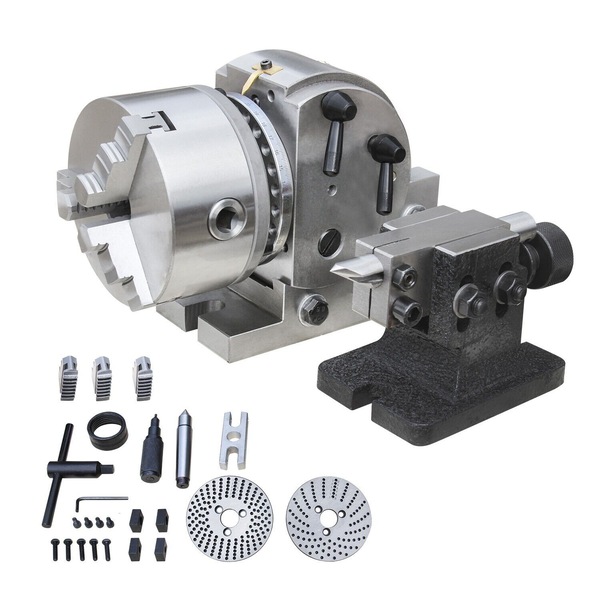

Standard Accessories

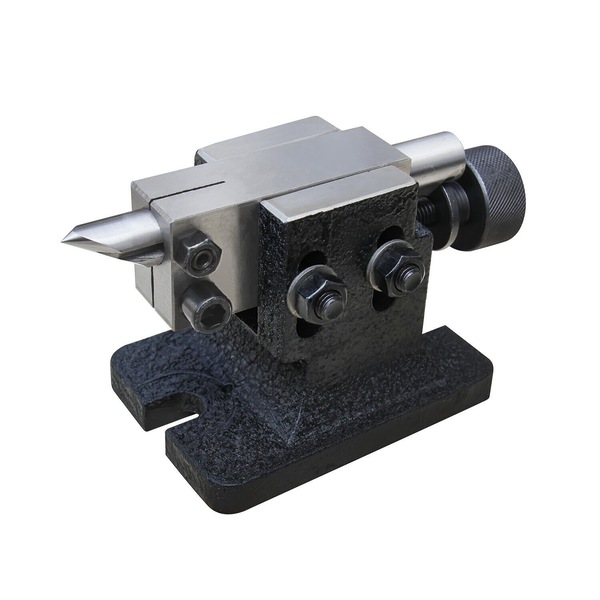

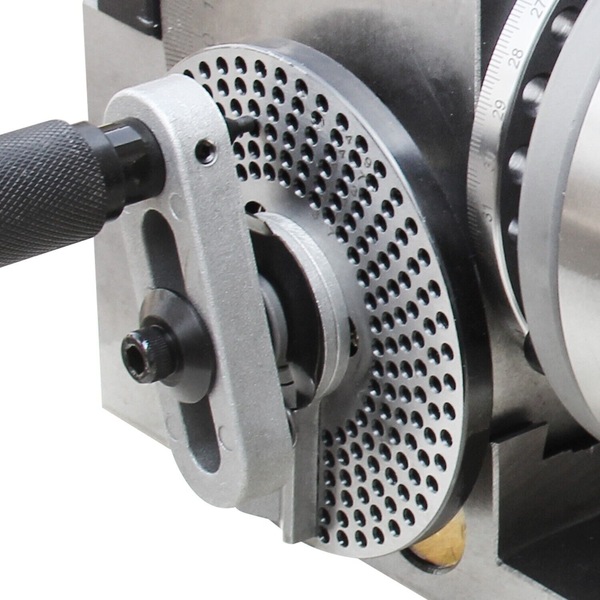

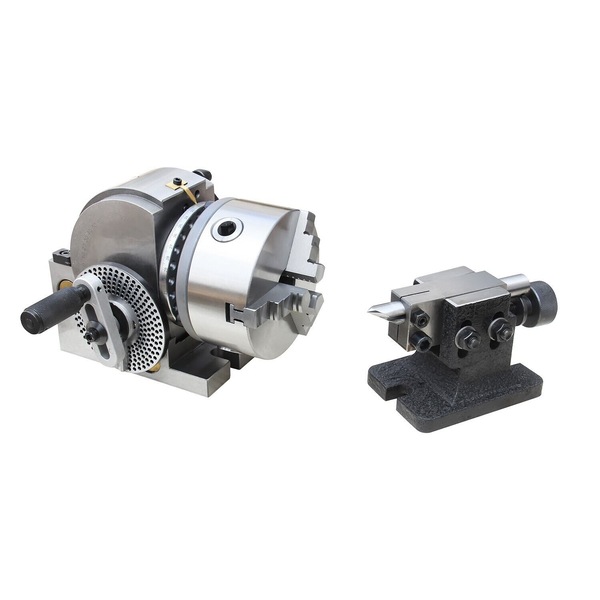

• Tailstock, Dividing plate, Dead center

ABC dividing plate specifications

• Plate A: 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm
• Plate B: 21 mm, 23 mm, 27 mm, 29 mm, 31 mm, 33 mm
• Plate C: 37 mm, 39 mm, 41 mm, 43 mm, 47 mm, 49 mm

Dimension of Dividing head

• A: 242 mm, B: 168 mm, H: 220 mm, ha: 128 mm, b: 206 mm, g: 113 mm, 16 mm

Dimension of Tailstock

• A1: 183 mm, B1: 87 mm, H1: 137 mm, ha1: 128 mm, b1: 158 mm, g: 110 mm, 16 mm
