Integrating LED technology with the traditional spotlight.
3 Colours at a flick of a dip switch

• Warm White 3000K
• Neutral White 4000K
• White 5000K

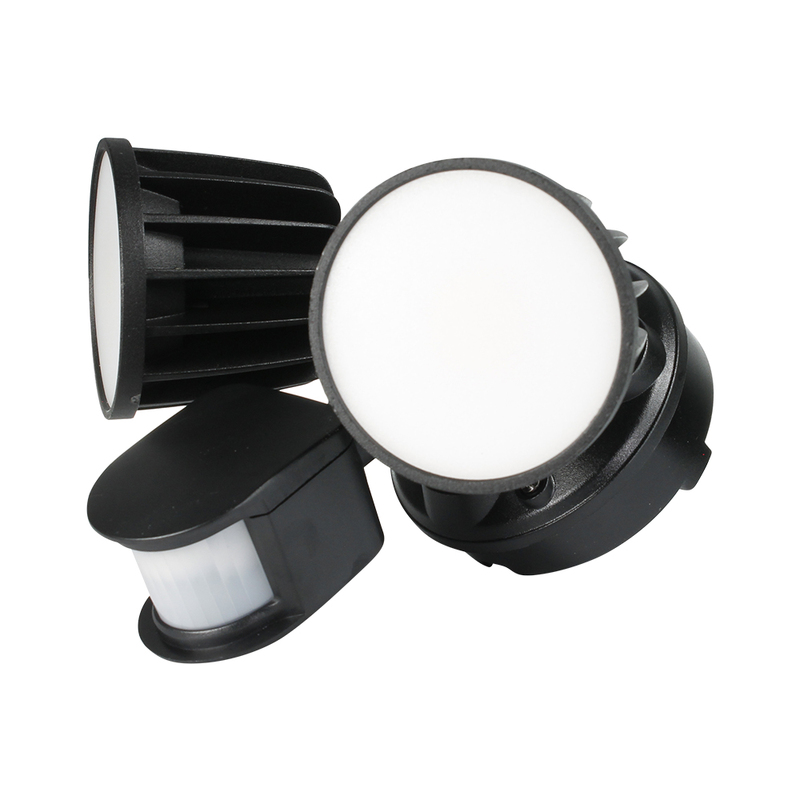

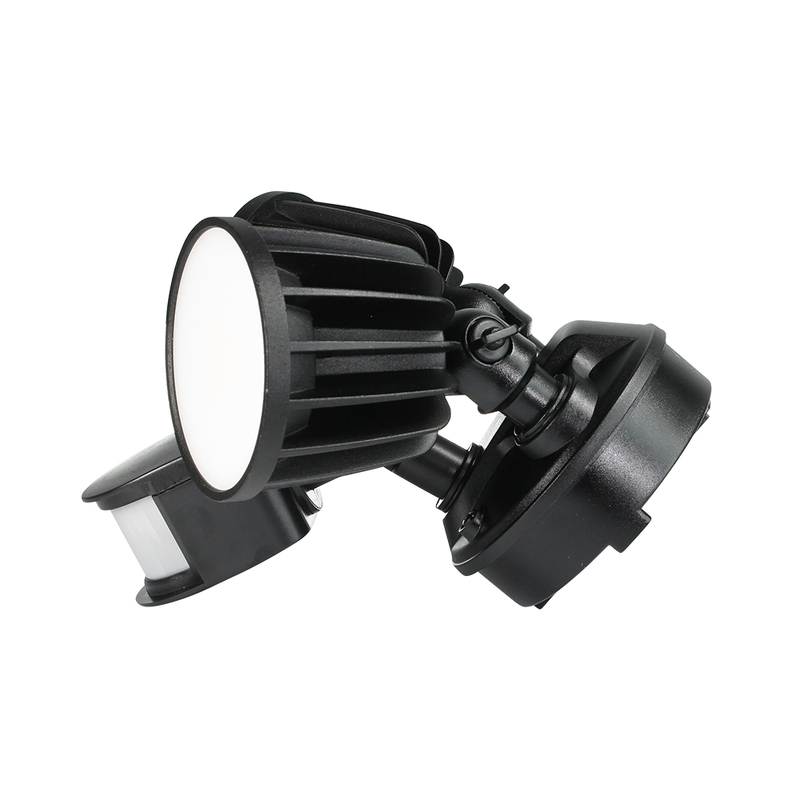

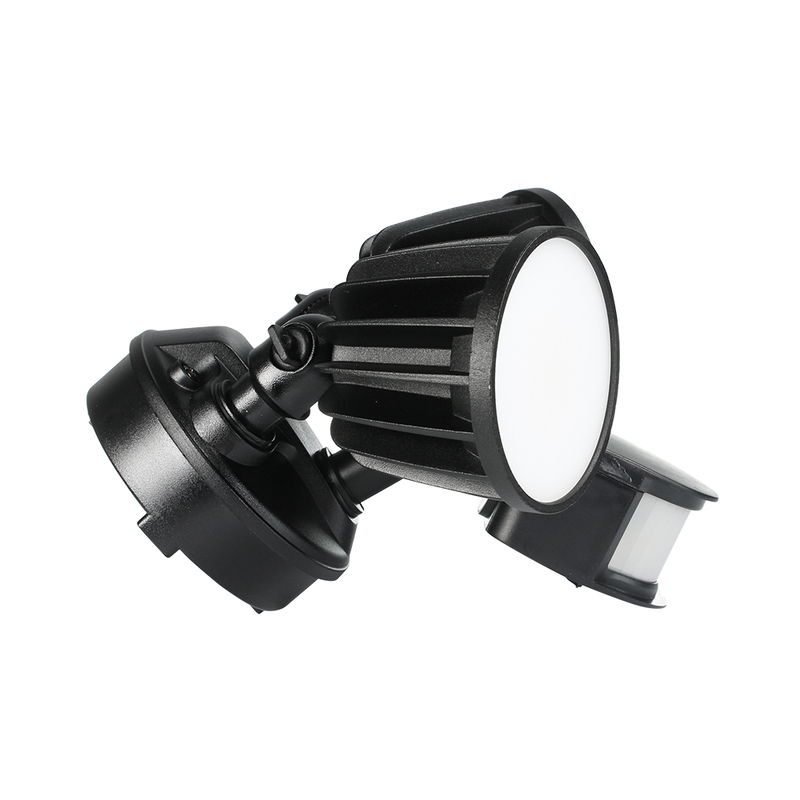

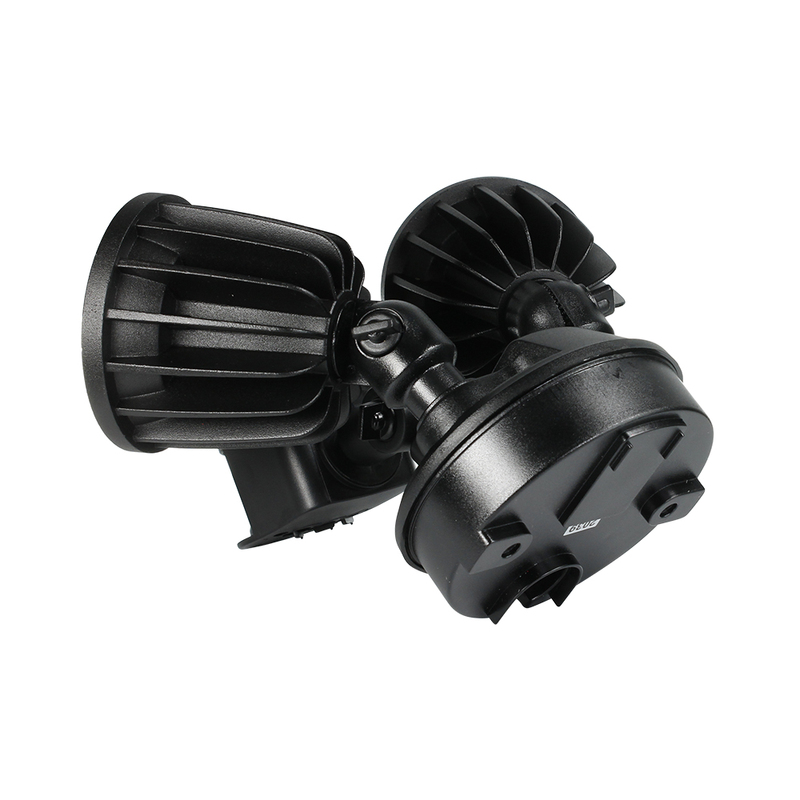

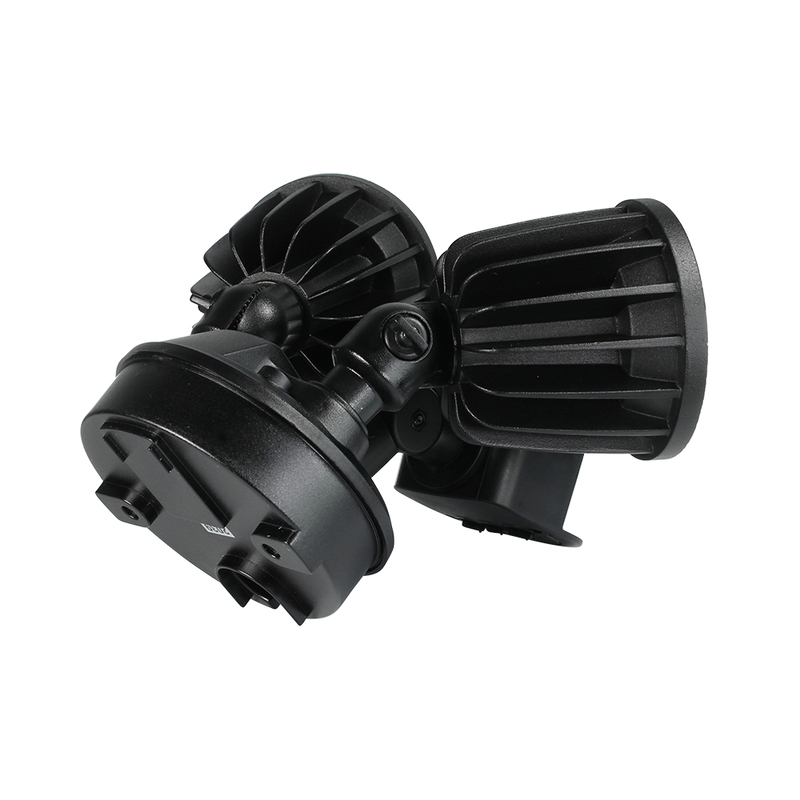

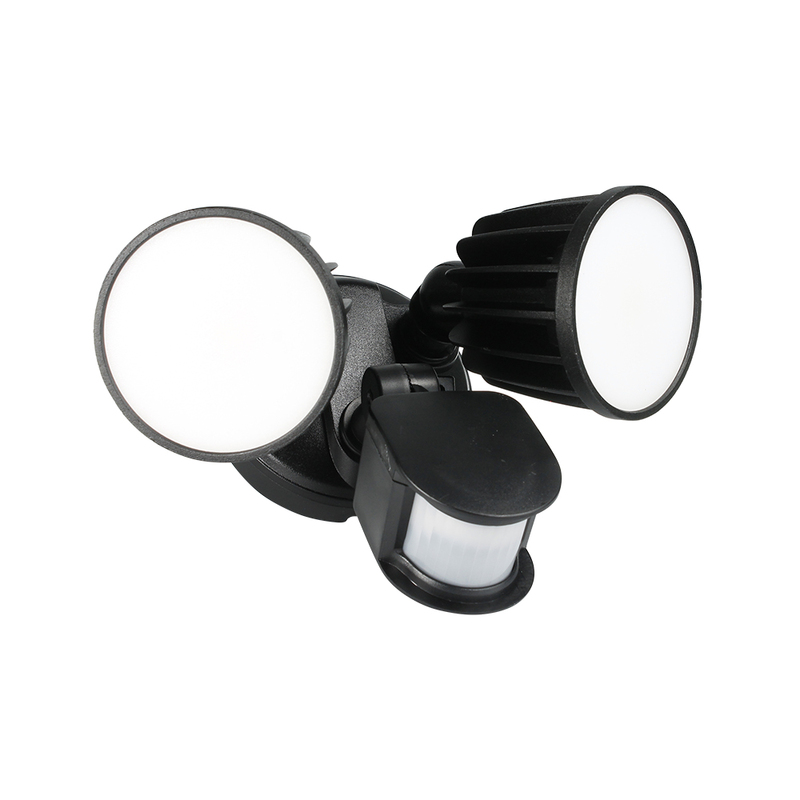

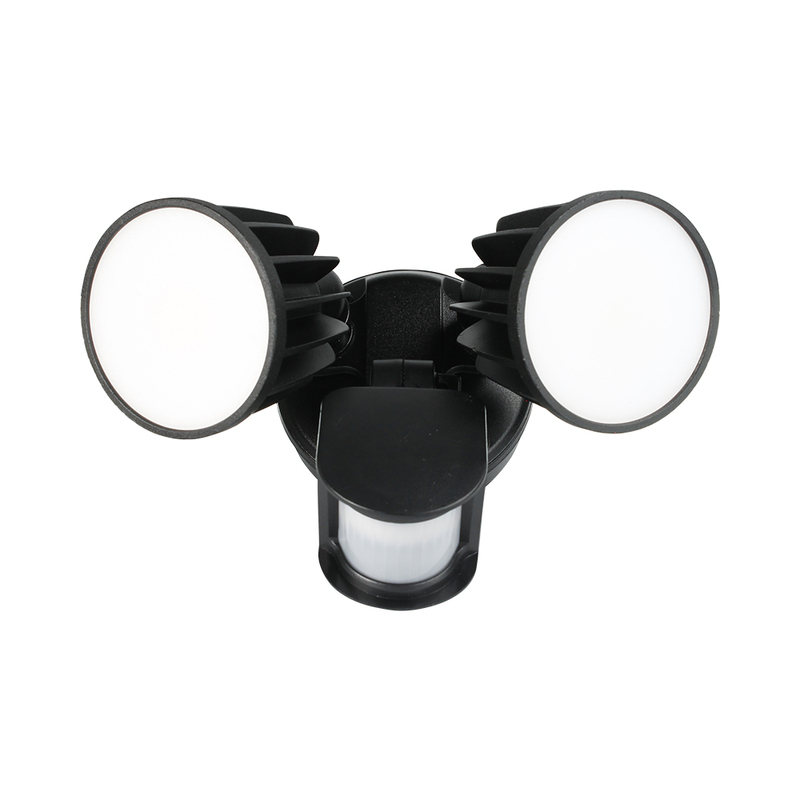

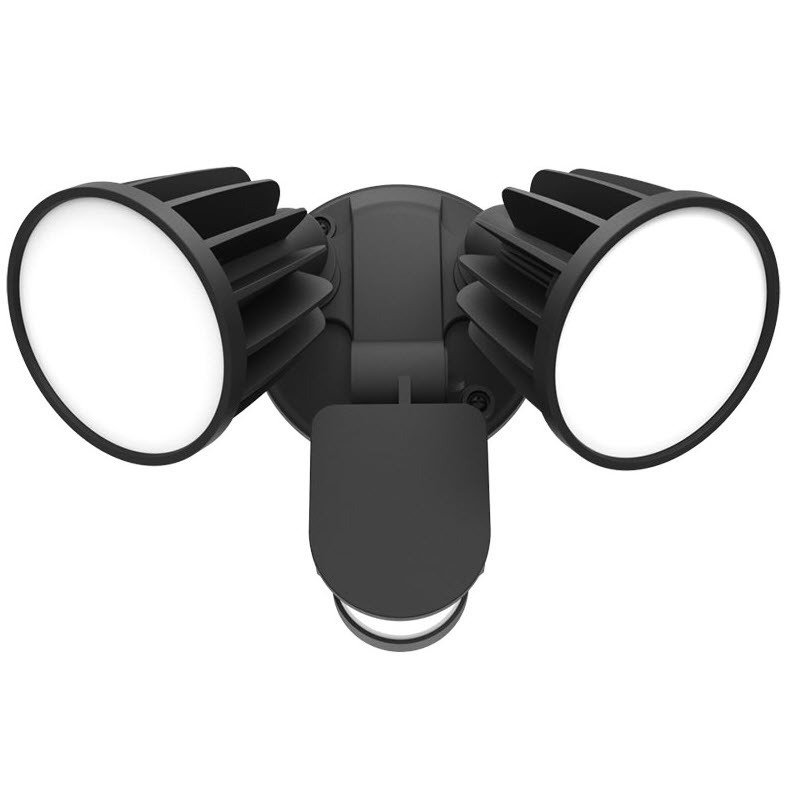

Wall Mounted LED floodlight with Tri Colour selectable colour temperature and PIR sensor

• Robust adjustable black aluminium optical head assembly

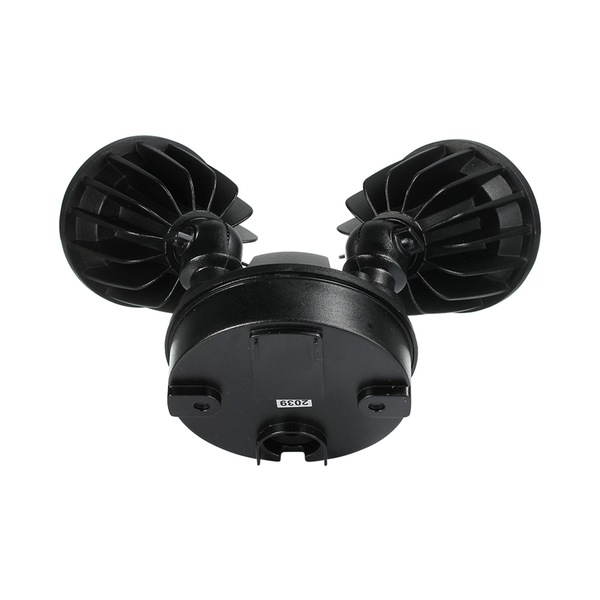

• Durable polycarbonate mounting base
• Opal polycarbonate diffuser, beam distribution 100 degrees, TC colour selectable 3000K/4000K/5700K
• High-efficiency SMD LED chips, integral non-dimmable LED driver
• Integral PIR motion sensor, detection distance 12m at 2.5 height meters, detection angle 180 degrees, manual over-ride function, time and light level adjustments see installation instructions.

SETTINGS:

• TIME controls the duration of time the fixture stays on once activated (MIN for shorter duration, MAX for longer duration)
• SENS controls the sensitivity of the Motion Sensor (MIN for lowest sensitivity, MAX for highest sensitivity)
• LUX controls the sensitivity of the Photocontrol Sensor (DAWN symbol is for the Daytime function, MOON symbol is for the Nightime function)

MANUAL OVERRIDE:

• To enable ‘Manual Override’ or ‘Permanent On’, simply switch off and on twice within six seconds. The lights will now stay on permanently. To return to ‘Automatic Mode’, switch the unit off and switch it on again after ten seconds. The unit will resume normal operation.
