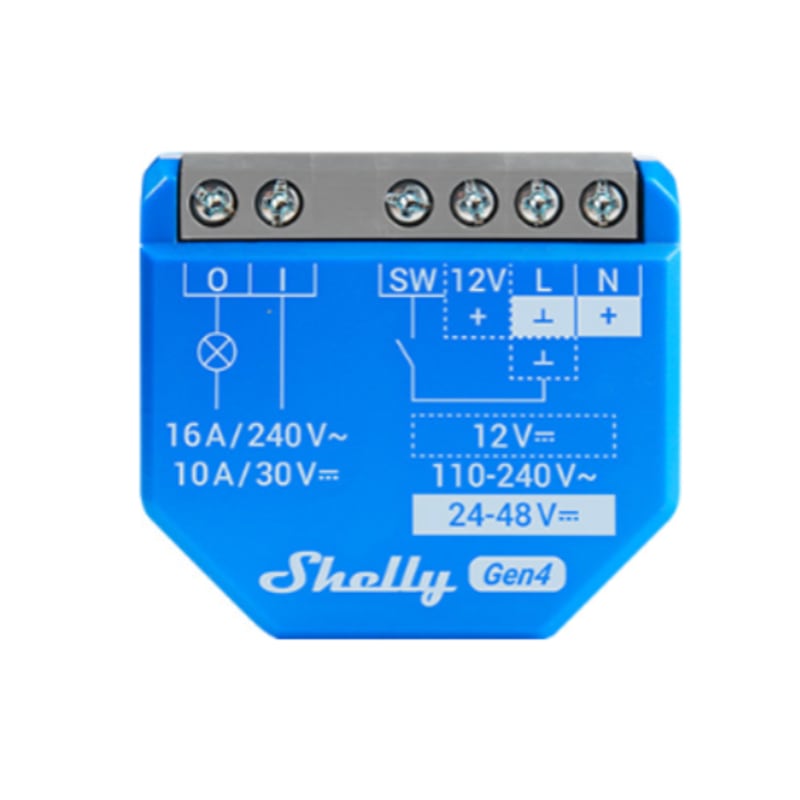

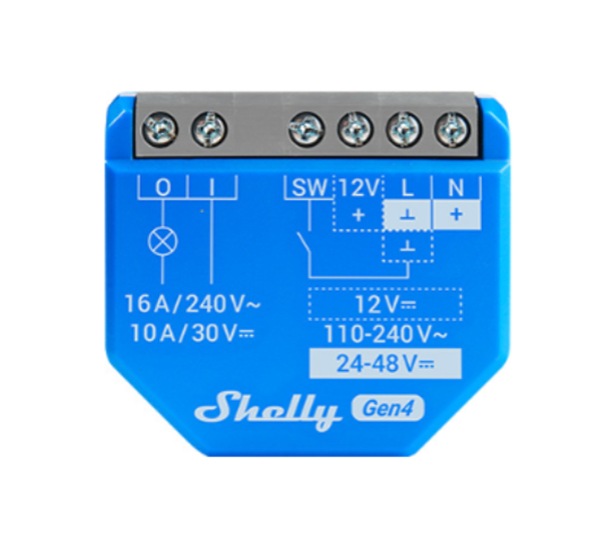

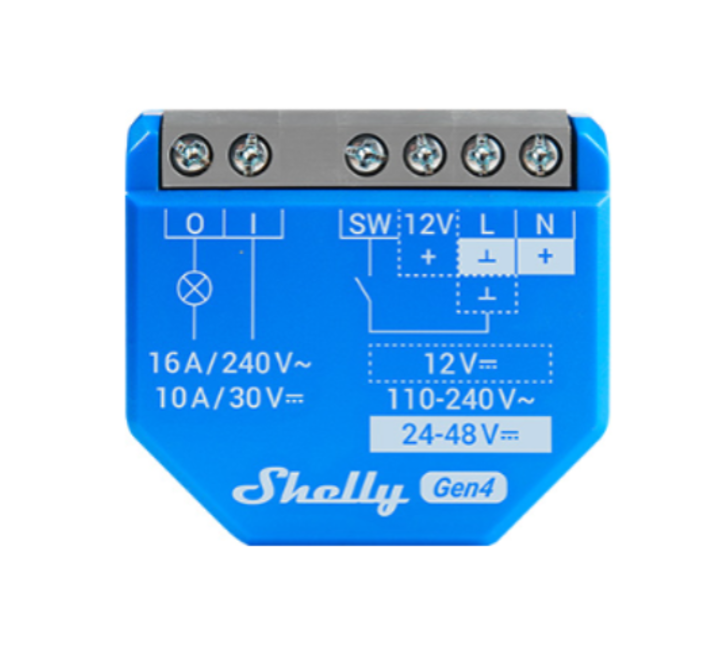

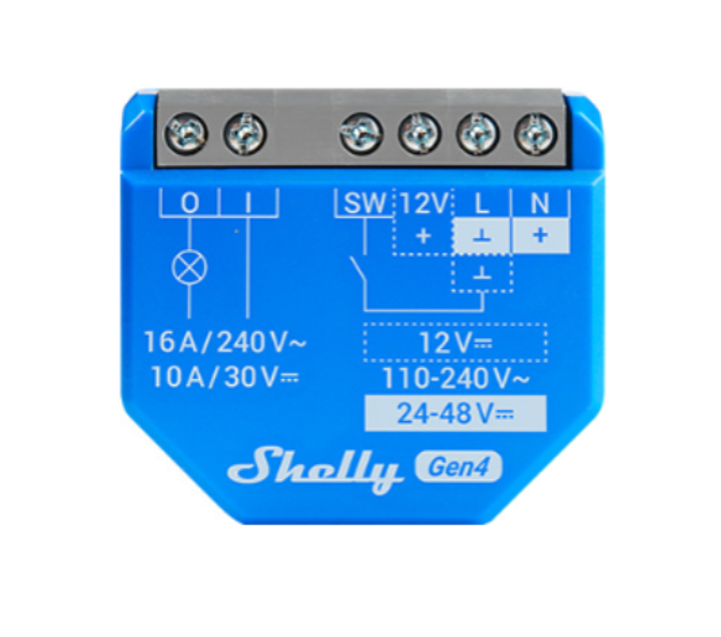

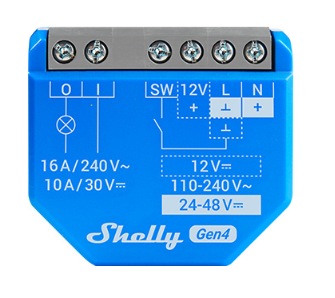

Shelly 1 Gen 4 - Smart Relay Switch

Shelly 1 Gen 4 is a compact smart switch with potential-free contacts, allowing remote control of electrical appliances via a mobile phone, tablet, PC, or home automation system. It can operate standalone within a local Wi-Fi network or integrate seamlessly with cloud-based home automation services.

With multi-protocol support, including Wi-Fi, Bluetooth, and Zigbee, the Shelly 1 Gen4 ensures a secure connection and flexible smart home integration. The device is also Matter-compatible, providing seamless interoperability with various ecosystems.

Key Features

•


  Wi-Fi Connectivity: Connects to your home Wi-Fi network, allowing remote control and automation.






•


  Smart Home Integration: Compatible with Google Assistant, Amazon Alexa, and Samsung SmartThings for voice control.






•


  Standalone or Cloud Control: Operates independently within a local network or through cloud services.






•


  Bluetooth & Zigbee Support: Enables easy setup and extended connectivity.






•


  Potential-Free Contacts: Suitable for switching low-voltage devices.






•


  Embedded Web Interface: Manage settings, monitor, and control directly from a web browser.






•


  BLE Gateway: Acts as a bridge between Shelly BLU devices and the wider Shelly ecosystem.






•


  Wi-Fi & Zigbee Range Extender: Expands network reach for better IoT connectivity.






•


  Advanced Scripting & Automation: Supports HTTP API, MQTT(s), WebHooks, UDP, and KNX net/IP.






•


  Scheduling & Virtual Components: Allows execution of complex automation scenarios.






•


  Overheating Protection: Ensures safe operation under load.




Use Cases

•


  Remote Appliance Control: Turn appliances on/off remotely.






•


  Home Automation: Automate power appliances for convenience and energy efficiency.






•


  Smart Building Integration: Suitable for residential, commercial, and municipal applications.




Technical Specifications

Physical

•


  Size: 37x42x16 mm






•


  Weight: 26g






•


  Mounting: Wall console






•


  Material: Plastic (Blue casing, Grey terminals)




Electrical

•

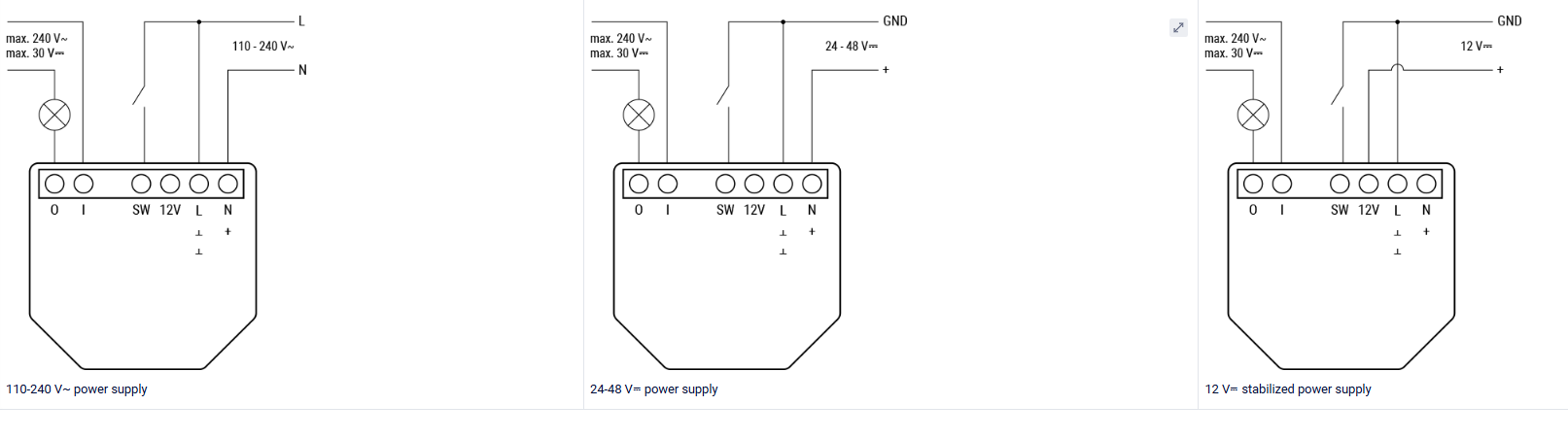

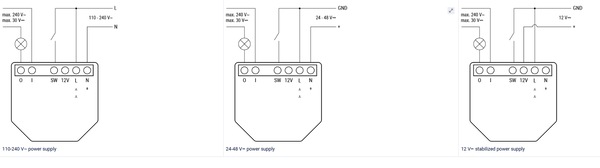

  Power Supply:








  •


    110-240V AC






  •


    24-48V DC






  •


    12V DC











•


  Power Consumption: <1W






•


  Max Switching Voltage: 240V AC / 30V DC






•


  Max Switching Current: 16A (AC) / 10A (DC)




Connectivity

•


  Wi-Fi: 802.11 b/g/n (2.4GHz)






•


  Bluetooth: 5.0






•


  Zigbee: 802.15.4 (Repeater included)






•


  Range:








  •


    Wi-Fi: Up to 30m (indoor) / 50m (outdoor)






  •


    Bluetooth: Up to 10m (indoor) / 30m (outdoor)






  •


    Zigbee: Up to 100m (indoor) / 300m (outdoor)









User Interface & Controls

•


  One Control Button:








  •


    Press & hold (5s) - Enable Bluetooth/AP mode






  •


    Press & hold (10s) - Factory reset






  •


    Press (5 times) - Switch between Matter & Zigbee mode






  •


    Press (3 times) - Zigbee inclusion mode











•


  LED Indications: Wi-Fi/Bluetooth status, Cloud connection, OTA updates




Firmware & Automation

•


  Scripting Support: Advanced automation via Shelly Script Language






•


  Schedules & Webhooks: 20 schedules & 20 webhooks (5 URLs per hook)






•


  MQTT & HTTP API: Supported for custom integrations




Package Includes

•


  1x Shelly 1 Gen4






•


  1x User Manual
