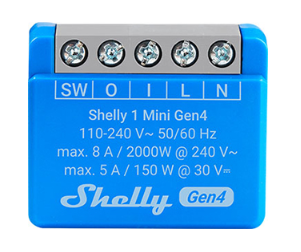

Shelly 1 Mini Gen4 - Compact Smart Switch with Zigbee, Wi-Fi & Bluetooth

Upgrade your smart home with the Shelly 1 Mini Gen4, the latest compact smart switch featuring potential-free contacts, Zigbee connectivity, and an improved processor. This enhanced version of the Shelly 1 Mini Gen3 allows seamless control of electrical appliances via a mobile phone, tablet, PC, or home automation system. It operates independently on a local Wi-Fi network or connects to cloud home automation platforms, ensuring flexible remote management.

Key Features

•


  Wi-Fi, Zigbee & Bluetooth Connectivity - Ensures reliable communication and flexibility in smart home setups.






•


  Matter Compatibility - Works with the latest smart home standard for seamless integration.






•


  Remote Control & Monitoring - Manage appliances from anywhere with internet access.






•


  Dry Contact Relay - Control low-voltage devices effortlessly.






•


  Compact Size - Easily fits into standard electrical wall boxes, behind power sockets, and light switches.






•


  Embedded Web Interface - Monitor and configure the device with ease.






•


  BLE Gateway & Zigbee Range Extender - Expand your smart home network.






•


  Smart Home Platform Integration - Compatible with Google Assistant, Amazon Alexa, and Samsung SmartThings.






•


  Schedules & Automation - Set up time-based automations for a smarter home experience.




Use Cases

•


  Smart Appliance Control - Turn electric appliances on/off remotely.






•


  Space-Saving Retrofitting - Install behind existing switches and sockets.






•


  Home Automation - Enhance your smart home ecosystem with automated controls.






•


  Wi-Fi & Zigbee Extender - Strengthen your home automation network.




Technical Specifications

Electrical

•


  Power Supply: 110-240V AC






•


  Relay: Dry, NO contact






•


  Max Output Power: 2000W (240V AC) / 150W (30V DC)






•


  Power Consumption: <1.2W






•


  External Protection: 10A max rated current




Connectivity

•


  Wi-Fi: 802.11 b/g/n/ax, up to 50m range outdoors






•


  Bluetooth 5.0: BLE Gateway enabled, up to 30m range






•


  Zigbee: 802.15.4, up to 300m range outdoors




User Interface

•


  Reset Button for manual operation






•


  LED Status Indicators for easy troubleshooting




Physical & Environmental

•


  Dimensions: 29x34x16 mm






•


  Operating Temperature: -20oC to 40oC






•


  Mounting: Standard electrical wall box






•


  Material: Durable plastic shell




Integration & Automation

•


  Supported Platforms: Google Home, Alexa, Samsung SmartThings






•


  APIs & Protocols: HTTP API, MQTT, Web Hooks (HTTP/HTTPS), KNX net/IP






•


  Advanced Features: Scripting, Virtual Components, Over-the-Air (OTA) Updates




Package Includes:

•


  1x Shelly 1 Mini Gen4






•


  User Manual
