WiFi-operated energy meter with contactor control

Individually monitor the consumption of any of your home appliances, electric circuits and office equipment (lights, sockets, security systems, heating and cooling, etc.). Monitor consumption of your whole home or generated electricity from solar panels with a one of its kind WiFi-operated energy meter with contactor control functionality.

•



  Wi-Fi Connected




  Shelly EM can connect directly to any Wi-Fi network, no HUB required or can operate as an Access Point.







•



  Power Supply




  Shelly EM is compatible with all major international voltage standards.







•



  Dual Power Metering




  Shelly can monitor energy consumption in real time for 2 circuits simultaneously (up to 120A each).







•



  Mobile App Control




  Turn devices on/off directly from your smartphone or tablet. You can manage Shelly EM output from Shelly app, MQTT or Rest API.







•



  Contactor Control




  Shelly EM has integrated 2A 230V 50/60Hz relay output for contactor control.







•



  Over-consumption and Excess-energy Protection




  Shelly EM can automatically notify and/or switch off the circuit if consumption or energy reaches the preset limit.







•



  Embedded Web Server




  Turn on/off and monitor consumption directly from its interface without the need of any additional controller or hub, thanks to the embedded web server







•



  Sunrise/Sunset Schedules




  Shelly EM can automatically turn on/off based on the sunrise and sunset hours.







•



  Weekly Scheduling




  Create custom daily schedules for your devices.





Specification

POWER

• Power supply: 110-230V 10, 50/60Hz AC




• Power metering: Two channels, up to 120A each




• Contactor control: Maximum load: 2A at 230V 50/60Hz




• Electrical consumption: < 1W




•

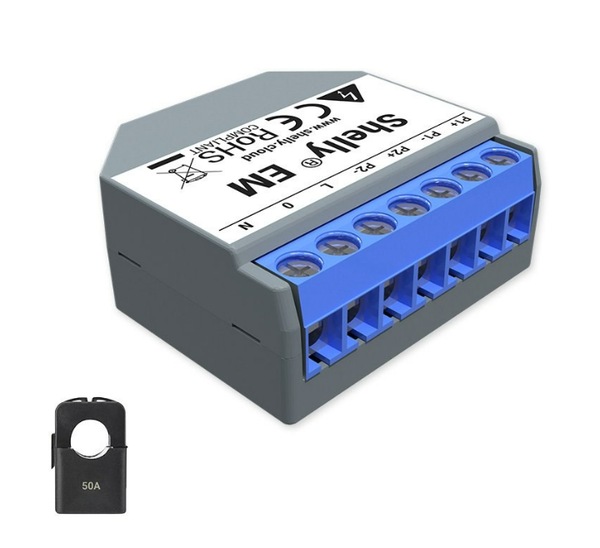

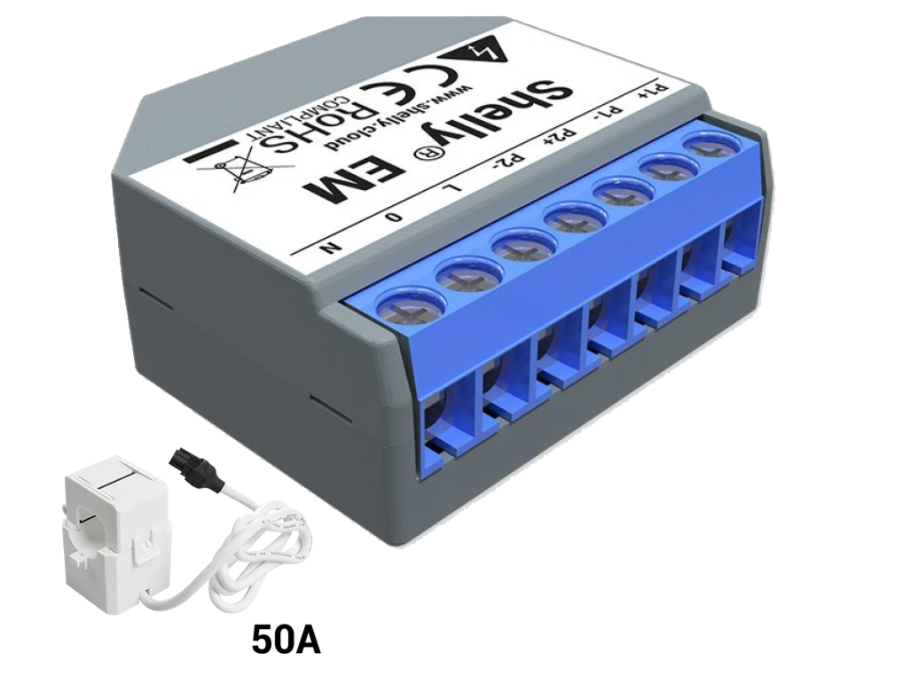

  Includes 1x 50A clamp


FEATURES

• Consumption history: 365 days built-in energy history (Wh)




• Complies with EU standards* RE Directive 2014/53/EU
  * LVD 2014/35/EU
  * EMC 2004/108/WE
  * RoHS2 2011/65/UE




• Working temperature: -40oC to +40oC




• Additional features* Overpower shutdown
  * Consumption limit


CONNECTIVITY

• Wireless/WiFi Protocol: 802.11 b/g/n (2.4 GHz)




• Frequency: 2400 - 2484 MHz




• Operational range (depending on local construction)* up to 50 m outdoors
  * up to 30 m indoors




• Radio Signal Power: 1mW


DIMENSIONS

• (H x W x L)39 x 36 x 17 mm
