Shelly Pro 1
1 CIRCUIT WI-FI RELAY SWITCH WITH DRY CONTACTS

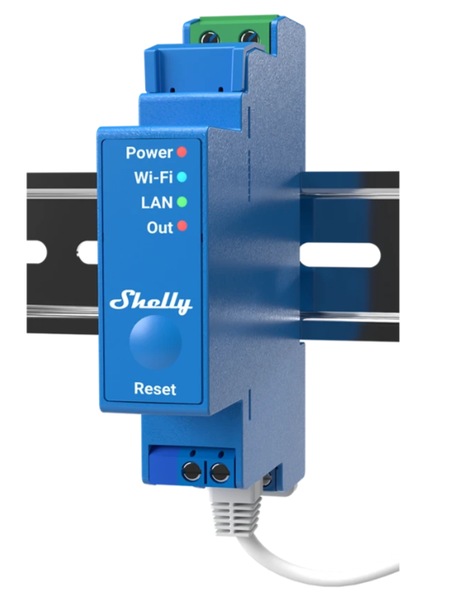

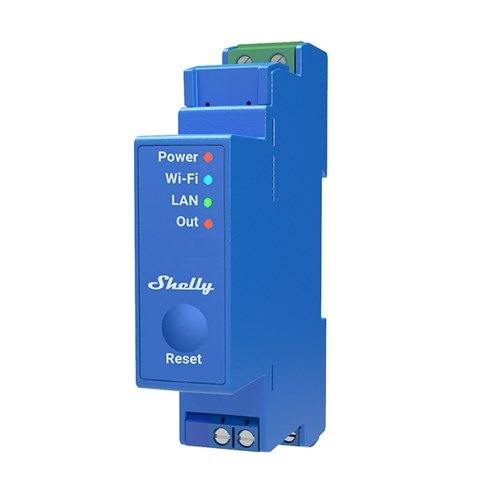

Shelly Pro 1 is a DIN rail-mountable smart relay with potential-free contacts. Enhanced with all the Gen2 firmware flexibility and LAN connectivity, it provides professional integrators with many more options for end-customer solutions. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly Pro 1 can be accessed, controlled, and monitored remotely from any place where the user has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
Shelly Pro 1 has an embedded web interface that can be used to monitor and control the device as well as adjust its settings.
Features:
- Power supply: no more 12 VDC option.
- Relay: no more DC switching
- Connectors: 3-terminal connectors are replaced by 2-terminal ones.
- PCBs: relay 2-layer PCBs are replaced by 4-layer ones for better thermal performance.
- LAN: improved high-voltage electrical distances
- Plastic shell: improved dielectric performance
Specifications:
| POWER | |
|---|---|
| Power supply AC | 110-240V, 50/60Hz |
| Maximum load | 16A |
| Channels | 1 Channel |
| SPECIAL FUNCTIONS | |
| Dry contacts | Yes |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Power measurement | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20oC to + 40 oC |
| Device power consumption | < 3 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Max RF output power | 13.35 dBm |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2483 MHz |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| Ethernet | Yes |
| DIMENSIONS | |
| Size | 18,5mm x 89,5mm x 68,5mm |
GTIN: 3800235268001
Reference ID: 10577169
