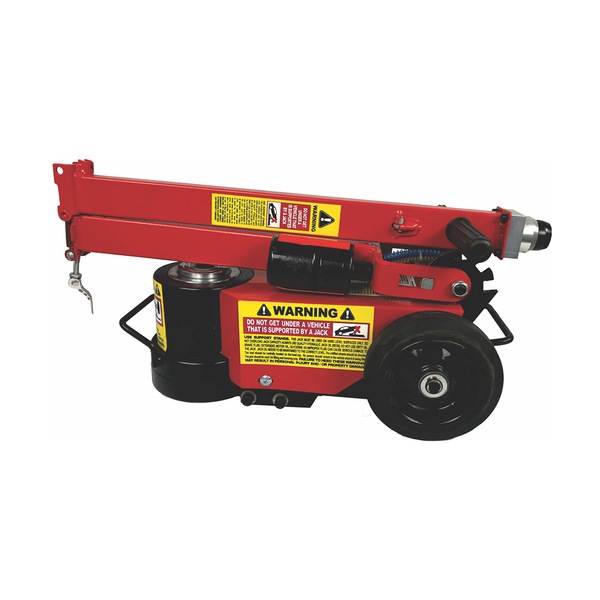

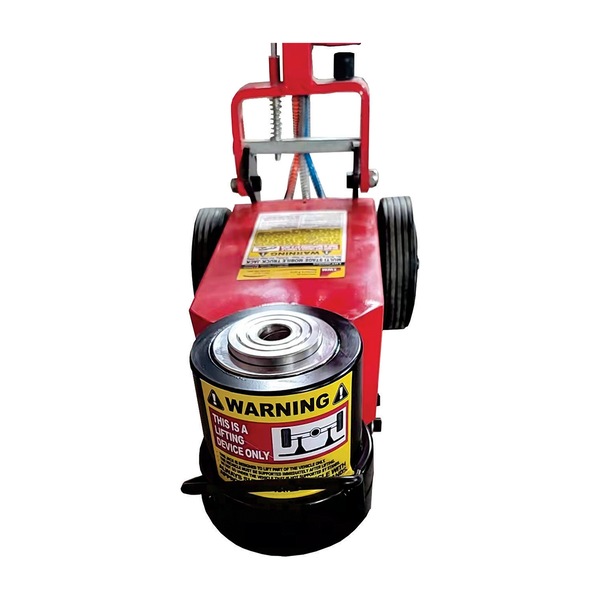

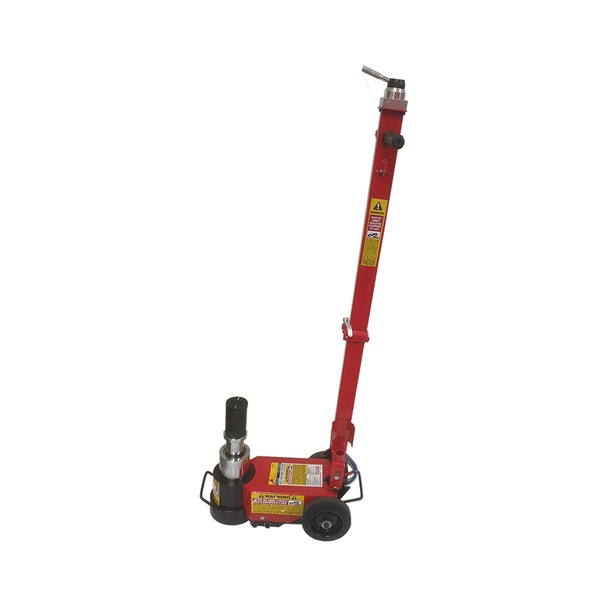

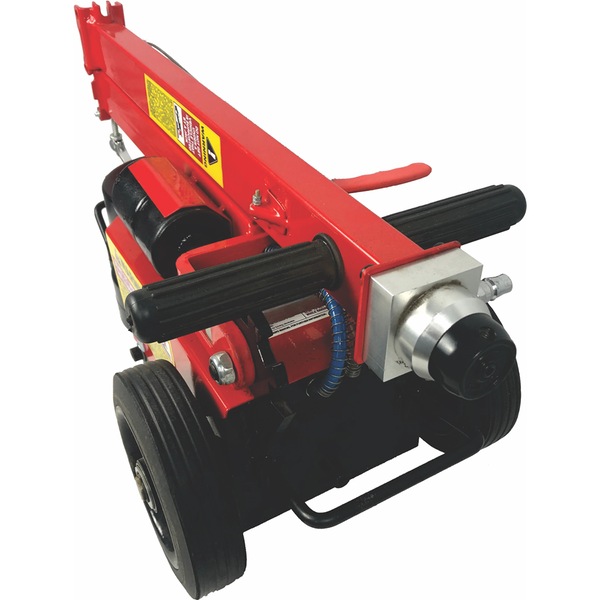

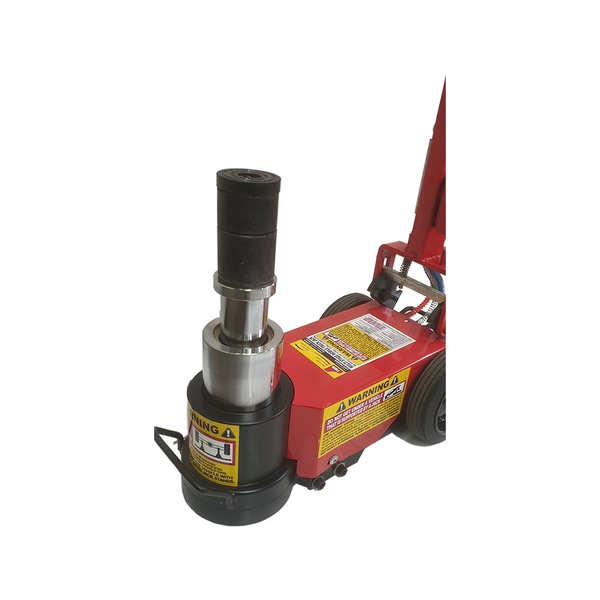

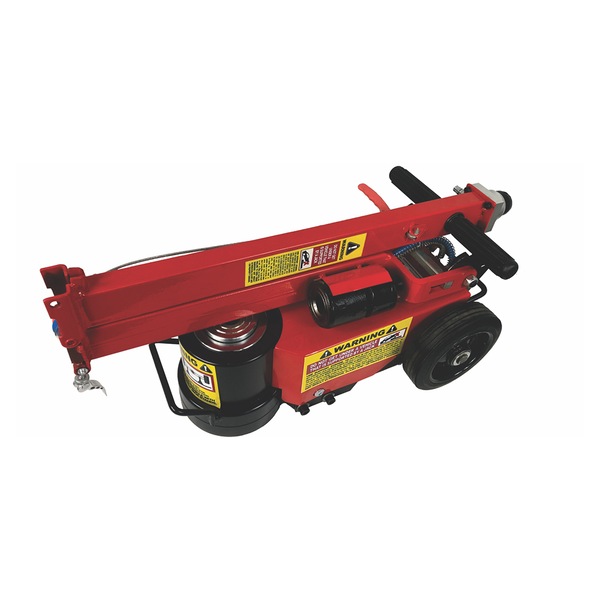

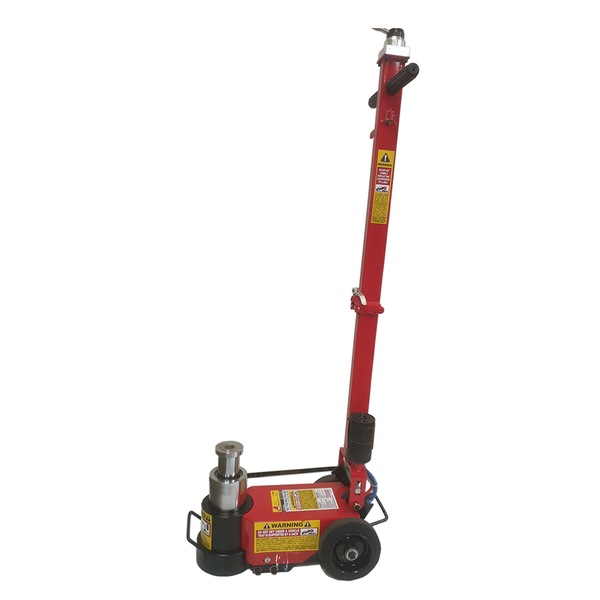

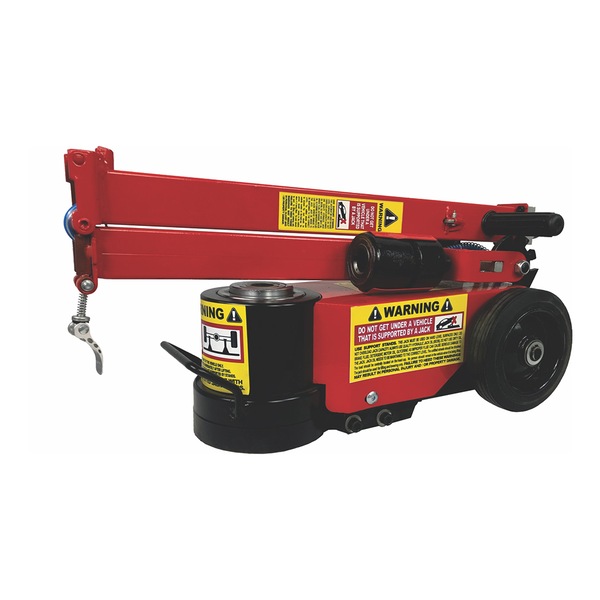

Short Body Multistage Jack 50/25



Heavy Duty use: Suitable for tractors, earthmoving equipment, forklifts, buses, trucks, and cars.

Air Hydraulic Operation

The overload and bypass safety valves prevent the jack from being used beyond the rated capacity and ram over-extensions.

An integral Descent Metering Valve maintains a controlled and safe lowering of the load.

The LHTJM5025SB has a self-retracting ram, as well as an integrated filter to protect the air motor.

Double-polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring.

Low profile of 170mm height to Maximum 330mm.



Specifications

  • Capacity50/25T
  • Stage 1: 50T - Stage 2 :25T
  • AirPressure:0.75~0.85Mpa
  • MinRamHeight: 170mm
  • MaxRamHeight: 330mm
  • Stroke:160mm

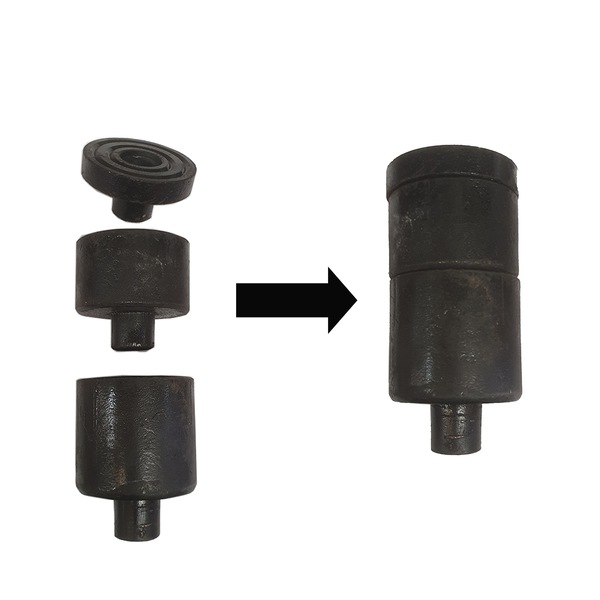

  • Extension Pins:38 & 55mm
  • Speed4.74m/s
  • Nett Weight: 40kgs
  • Gross Weight: 45kgs
  • Packing size 71*36*36cm

MPN: ATXLHTJM5025SB
