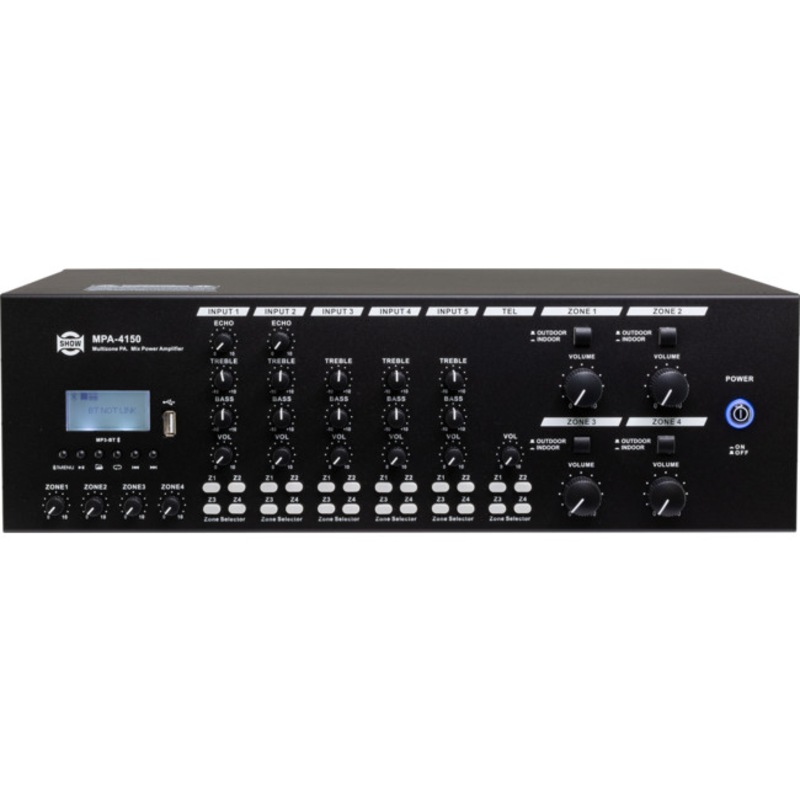

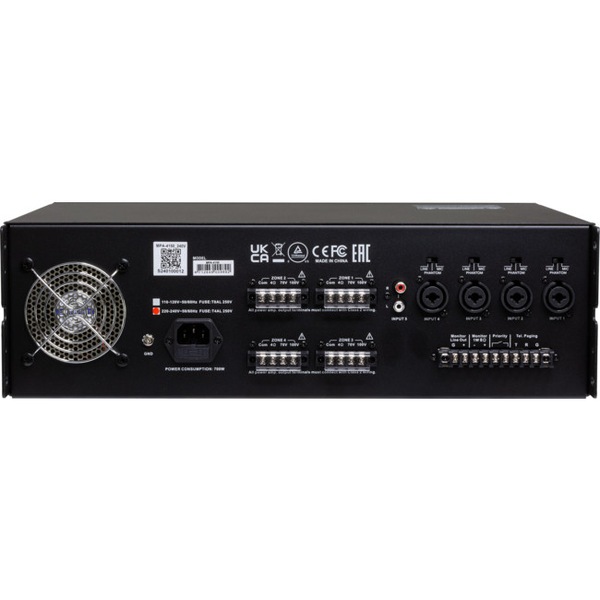

SHOW MPA4150 4 Zone Class D Amplifier With Mp3 USB Bt 150W*4 5 Line/Mic In

Image 1
Image 2
Hurry! 17 items left!
$1266.45

Collect 1266 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

The Class-D Professional PA Amplifier series is designed for hotels, supermarkets, and schools, featuring multi-zone audio control. It is suitable for use in wired audio systems, the announcement system supports both line and ohm formats, both indoor and outdoor formats.It supplies excellent sound quality with easy operation to achieve outstanding performance.

The series has 5 inputs and 4 outputs. Use indoor or outdoor buttons separately according to different usage environments to get better sound-quality effects. It has a built-in USB MP3 player and Bluetooth 5.0 connectivity. There is an Echo function on both inputs 1 and 2 and treble and bass tones can be adjusted for each of the 4 microphones separately.

Features
  • 4 Zone Class D PA Amplifier
  • 4 Line/Mic and MP3 player 5 inputs and 4 zone outputs
  • Rated output power: 150W x 4
  • Independent channel with 4-zone switch
  • Individual volume control for input 1 to input 4
  • Bass and treble control for input 1 to input 4
  • Echo function selection for input 1 and input 2
  • USB MP3 and Bluetooth 4 zone selection
  • Output options: 4 ohm/70V/100V
  • Monitor 1W 8ohm out and line out.
  • Master volume control for 4 zones
  • Indoor/Outdoor switch for 4 zones
What is in the box?
  • MPA4150 x 1pc
  • Power lead x 1pc
  • Manual x 1pc
  • Rackmount ear x 1 pair
Specifications
_ _ MPA4150 MPA4250
AC Power supply 110-120V~,220-240V~ 50Hz/60Hz _ _
Maximum power consumption sine wave 1kHz,THD ≤ 1%,LOAD 4 ohm 920W 1449W
Rated power consumption sine wave 1kHz,THD ≤ 1%,LOAD 4 ohm 700W 1000W
Rated output power sine wave 1kHz,THD ≤ 1%,LOAD 4 ohm 150W*4 250W*4
Sensitivity/Impedances MIC 1~4(balanced) -40dBV (±2dB) -40dBV (±2dB)
_ LINE 1~4(balanced) -5dBV (±2dB) -5dBV (±2dB)
_ AUX(unbalanced) -5dBV (±2dB) -5dBV (±2dB)
_ TEL -15dBV (±2dB) -15dBV (±2dB)
Max Input Level MIC 1~4(balanced) -20dBV -20dBV
_ LINE 1~4(balanced) +15dBV +15dBV
S/N ratio MIC >65dB >65dB
_ LINE >75dB >75dB
_ AUX >75dB >75dB
Bandwidth MIC+OUTDOOR 178Hz-7.96KHz 178Hz-7.96KHz
_ MIC+INDOOR 132Hz-7.96KHz 132Hz-7.96KHz
_ LINE+OUTDOOR 138Hz-12.6KHz 138Hz-12.6KHz
_ LINE+INDOOR 70Hz-12.6KHz 70Hz-12.6KHz
_ AUX+OUTDOOR 144Hz-17KHz 144Hz-17KHz
_ AUX+INDOOR 76Hz-17KHz 76Hz- 17KHz
THD+N 1/10 Rated Out/ 1W I /10 Rated Out/ 1W ≤ 1W ≤ 1W
Tone control BASS @ 100 Hz ±10dB ±10dB
_ TREBLE @ 10kHz ±10dB ±10dB
Phantom supply condenser microphone 18V 18V
Priority Sensitivity MIC+TEL -60dBv/3S -60dBv/3S
Crosstalk 500-20KHz <-60dB <-60dB
CMRR balance input >60dB >60dB
Noise all VR MAX <30mv <30mv
Dimension (WxDxH) _ 638x543x188mm (25.12" x 21.38" x 7.40")
Weight _ 17.85Kg (39.35 lbs) 21.05Kg (46.41 lbs)

Weight: 17.85
