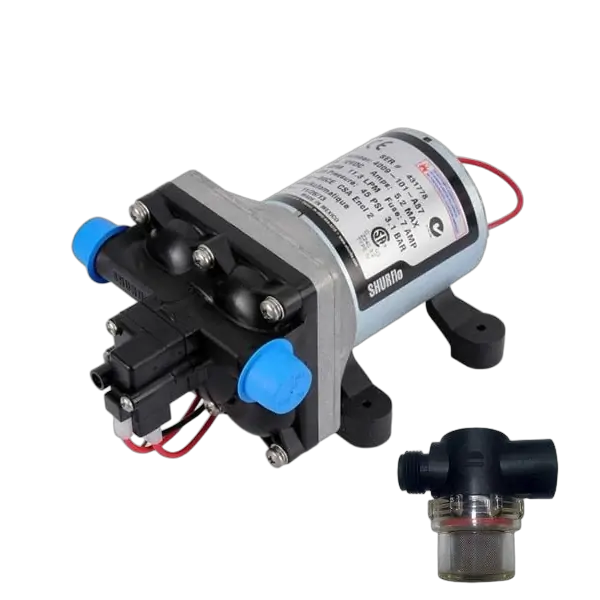

Shurflo 4009 Water Pump & Twist On Filter Pack 12v

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
$209.99

Collect 209 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Secure ways to pay at checkout

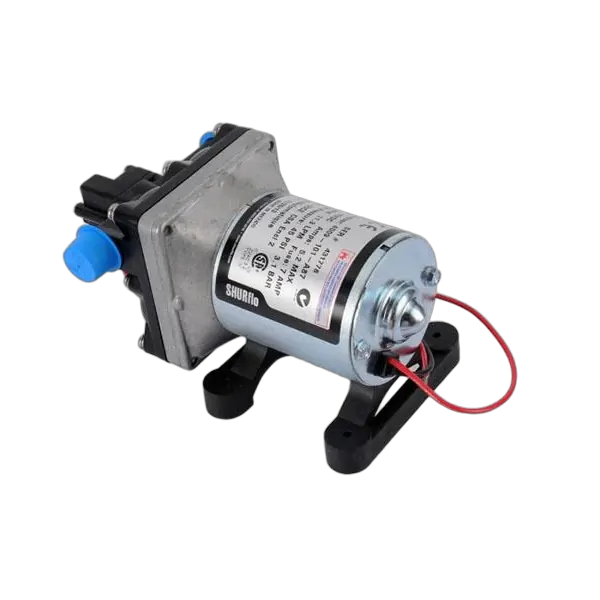

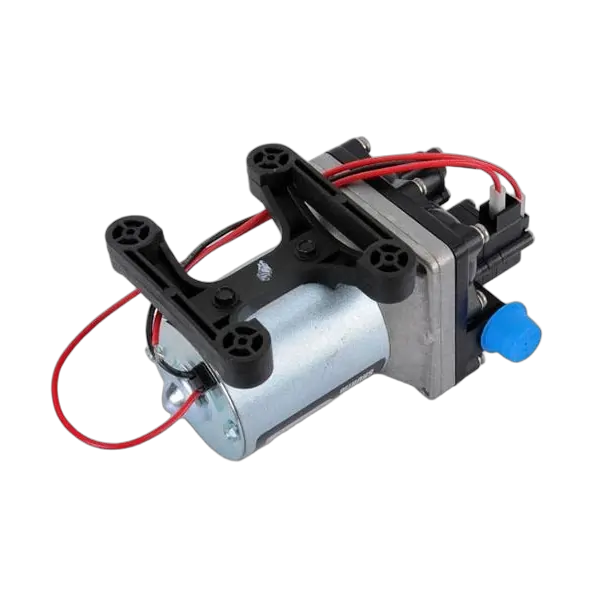

Shurflo 4009 12v Water Pump for Your Caravan or RV

If you plan on having running water in your camper or motorhome, then you’ll need a reliable 12-volt water pump. The Shurflo 4009 series water pump design is created with a one-piece diaphragm and internal by-pass ensuring a long life and max performance. Constructed for high flow demand, this updated Shurflo 4009 water pump has low noise emissions and no rapid cycling. Meaning, when the pressure switch turns on and off very quickly, it can lead to premature water pump failure. The Shurflo 4009 is designed to last years without this ever being the case and can also run dry without any damage to the motor.

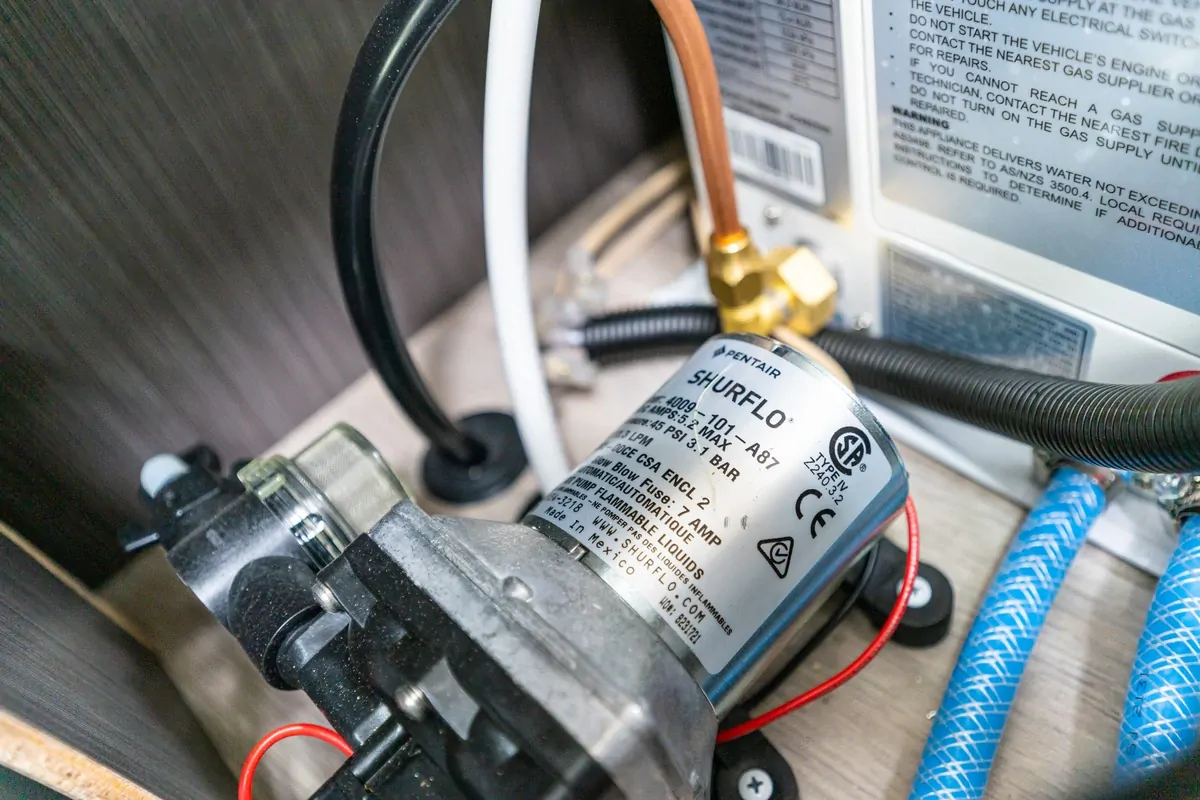

Shurflo have rapidly become the most popular supplier of affordable 12-volt water pumps on the market, ideal for boats, caravans, motorhomes and campers. This powerful device provides a running water source for sinks, washing machines and showers. Its easy, low-profile design can be mounted in any position to the inside of cabinetry and storage areas. It’s designed with a ½ inch BSP male thread, compatible with any twist-on ½ inch female water director (usually for 13mm tubing). It’s important to note that the pulling power of the Shurflo 4009 water pump is designed to be placed near the water source, so bear this in mind when mapping out a plumbing system in your camper. Absolutely anyone can follow the simple installation steps when setting up the Shurflo 4009 water pump for a quick solution to all the dirty dishes piling up in the sink.

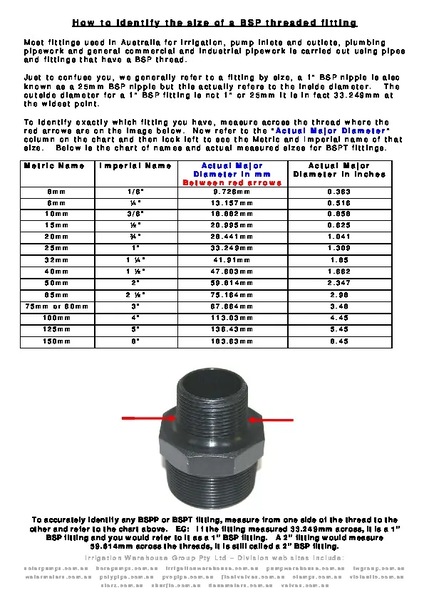

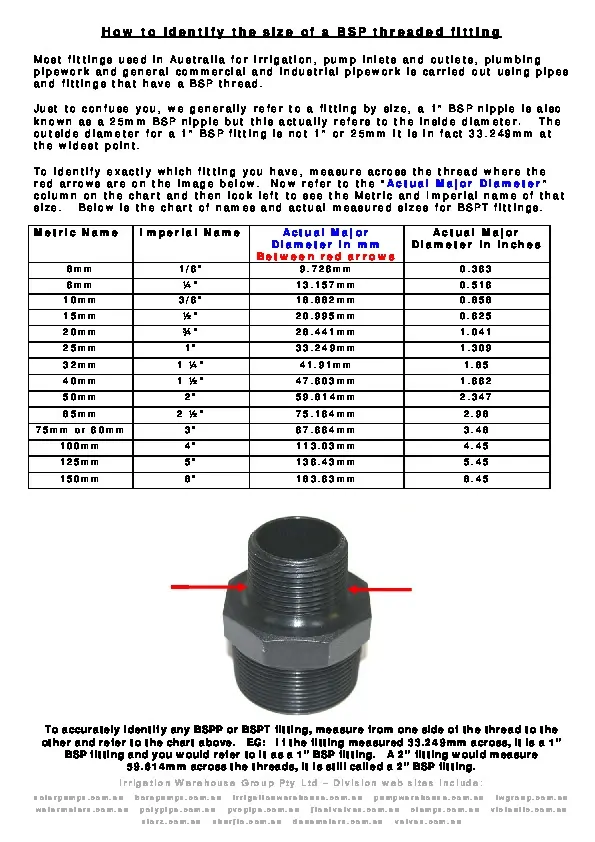

IMPORTANT: The fitting on the Shurflo 4009 is TAPERED and needs a TAPERED fitting like the Shurflo swivel hubs we sell here. You must install a Shurflo filter pack BEFORE the pump (water tank side) and DO NOT USE THREAD TAPE or it will void warranty. Please see PDF images above for more information on tapered fittings and BSP/NPT threads.

Product Features:
  • Four Independent Pump Chambers - The pump is super quiet and smooth operation
  • Adjustable Pressure Shut Off - Fine tuning for customer specific application
  • Self priming up to 1.8 meters (6 feet) vertical
  • O-ring Check Valve Design - Long life and consistent performance
  • Adjustable Bypass - Eliminates need for accumulator tank
  • Run Dry Capability - Long life consistent performance
  • CE & C-Tick compliant
  • Must be used with a filter before the pump
  • Must not use plumbing tape
  • Not warranted for commercial applications
  • Not warranted for outside use
  • Not warranted against dust ingress
  • Pressure switch adjustment tampering voids warranty
  • For intermittent external applications see Aqua king pump 005656-A
  • Includes the SHURflo twist-on filter

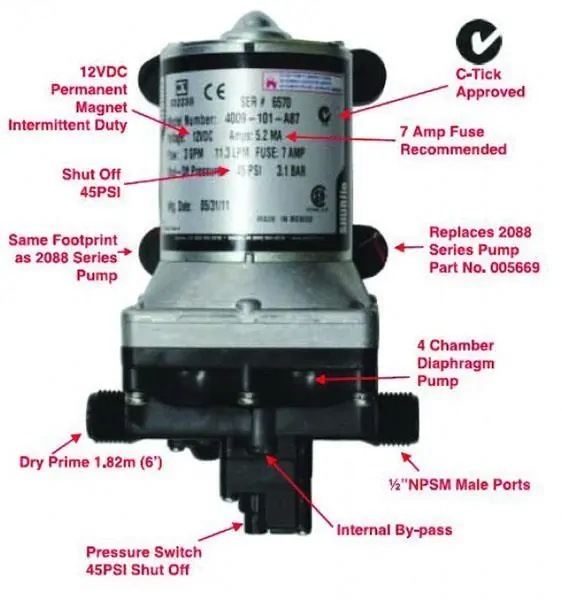

Specifications:
Pump:
  • Type: 4 Chamber Diaphragm Pump
  • Ports: 1/2” - 14 NPSM-Male
  • Inlet PSI: 30Psi (2.1Bar) Max
  • Shut Off Pressure: 45Psi
  • 12MM BSP fittings can be used
Electrical:
  • Motor: 12V DC Permanent Magnet, Intermittent Duty
  • Protection: Thermal Overload, Automatic Restart
  • Fuse: 7A Recommended
Materials:
  • Housing: Polypropylene
  • Hardware: Stainless and Zinc Plated Steel
  • Net Weight: 2.3kg
  • Dimensions (mm): 205L x 125W x 111H

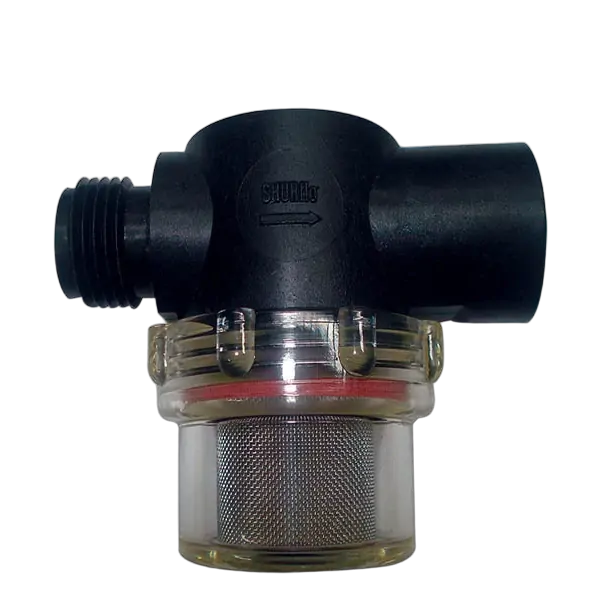

How do I maintain the filter that comes with my Shurflo 4009 pump?

Your Shurflo 4009 includes a twist-on filter to protect the pump from dirt and sediment. Install it on the tank side of the pump, as recommended by Shurflo, to keep debris out of the chambers. For best performance, clean the filter at the start of each season: unscrew the clear housing, rinse the mesh screen gently, and use a soft brush if needed. A clean filter helps maintain strong and consistent water flow.

What if my Shurflo 4009 pump is noisy or vibrating?

First, check the filter. A clogged screen can restrict flow and make the pump sound rough. If the filter is clean, make sure the pump is mounted close to your water tank. The Shurflo 4009 is designed to push water, not pull it long distances, so correct placement helps reduce noise and vibration.

How the Shurflo 4009 Compares to the Seaflo RV Supreme MK2
Feature Seaflo RV Supreme MK2 Shurflo 4009
Self-Priming Yes Yes
Run Dry Safe Yes Yes
Pressure 55 PSI 45 PSI
Power Draw 6.0 A 7.5 A
Technology Internal bypass Internal bypass
Mounting Pattern Industry standard Industry standard
Additional Features Filter and fittings Basic package

How to keep your warranty on the Shurflo 4009 freshwater pump
