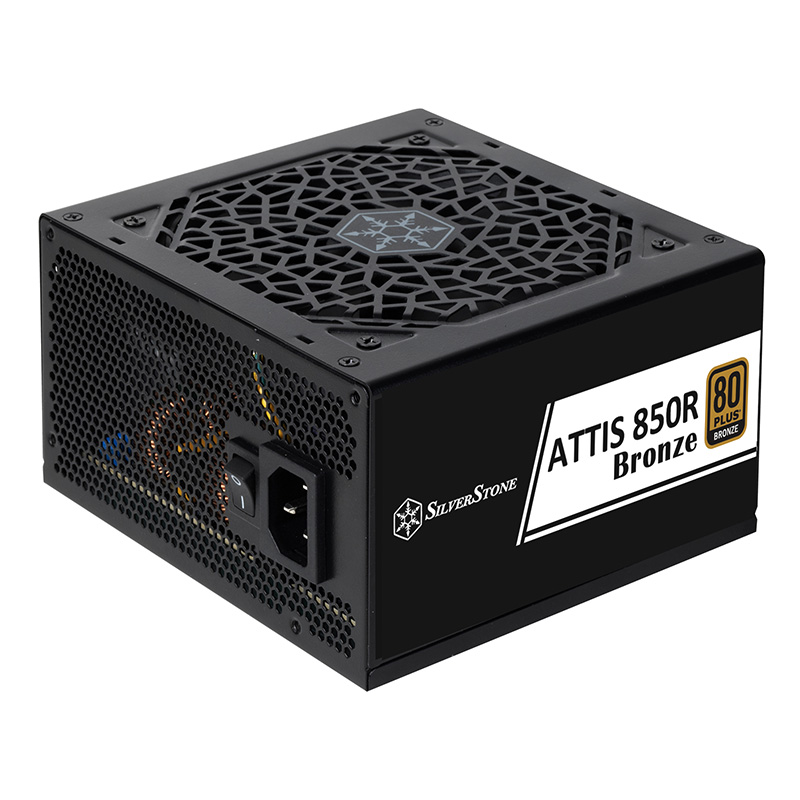

SilverStone 850W ATTIS 850R 80+ Bronze Power Supply (SST-AT850R-BF)

Image 1
Hurry! 5 items left!
$112

Collect 112 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout







SPECIFICATIONS:

Model (safety certification)

SST-AX0850FCBR-39L

Color

Black (lead-free paint)

Load Range

Output

Max.(Amps)

Min.(Amps)

Range (%)

Line   Reg.(%)

Ripple(mVp-p)

+3.3V

20A

0A

5%

1%

50mV

+5V

20A

0A

5%

1%

50mV

+12V1

70.8A

0A

5%

1%

120mV

+5VSB

3A

0A

5%

1%

50mV

-12V

0.3A

0A

10%

1%

120mV

Combined +3.3V & +5V

100W

Combined +12V

849.6W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0C ~ 50C

Protection

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Under Voltage Protection

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 4-Pin + 4-Pin ATX 12V connector

4 x 8 / 6-Pin PCIe connector

1 x 12+4-Pin 12V-2x6 connector

6 x SATA connectors

3 x 4-Pin Peripheral connector

Cooling System

Silent 120mm fan

Noise Level

18 dBA minimum

Form factor

ATX (PS2)

Dimension

150mm (W) 86mm (H) 140mm (D)

5.91" (W) x 3.39" (H) x 5.5" (D)

Weight

1.76 kg




SKU: 80060
