Silverstone Attis 750R 80 PLUS Bronze 750W ATX 3.1 ATX Power Supply, Fixed Cable [SST-AT750R-BF]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Limited Stock
$111.68

Collect 111 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Silverstone Attis 750R 80 PLUS Bronze 750W ATX 3.1 ATX Power Supply, Fixed Cable

ATTIS 750R Bronze
80 PLUS Bronze 750W ATX 3.1 ATX Power Supply
- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 50? operating temperature
- Japanese primary capacitor
- Silent running 120mm fan with 18 dBA minimum
- Multiple protection circuitry
- All black flat cables
- Active PFC+Double forward+DC to DC Design
Compliant with ATX 3.1 standards and supports up to 2X power excursion


Bronze Efficiency Certified
Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.

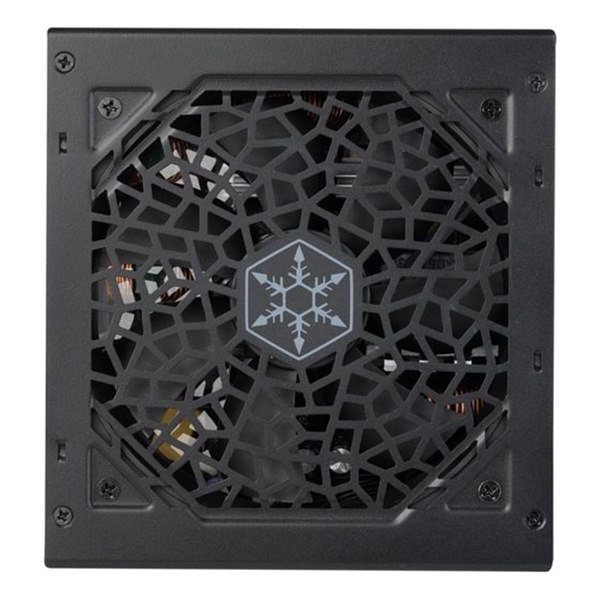

High Reliability Cooling Fan
The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.


Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking


Flat cables have much greater flexibility to allow for tighter folding and management of cables


Advanced protections for safety and security
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Product Specifications

Product No.

SST-AT750R-BF

Model (safety certification)

SST-AX0750FCBR-A

Color

Black (lead-free paint)

Max. DC Output

750W

Load Range

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62.5A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5~-7% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 50mV

Combined +3.3V & +5V

100W

Combined +12V

750W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection

Connectors

1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
4 x 8 / 6-Pin PCIe connector
6 x SATA connectors
3 x 4-Pin Peripheral connector

Cooling System

Silent 120mm fan

Noise Level

18 dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)

Weight

1.54 kg
- MPN: SST-AT750R-BF

GTIN: 844761027483
