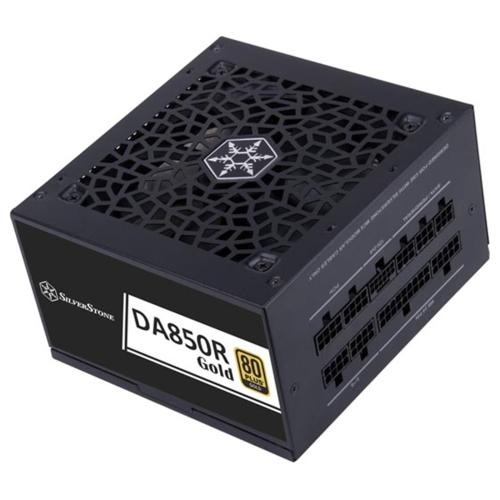

Silverstone DA850R Black 850W ATX 3.1 Power Supply 80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular [SST-DA850R-GMA]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Limited Stock
$169.62

Collect 169 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Silverstone DA850R Black 850W ATX 3.1 Power Supply 80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular

DA850R Gold
80 PLUS Gold 850W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- 80 PLUS Gold efficiency certification
- Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 50?operating temperature
- Silent running 120mm fan with advanced semi-fanless operation
- Compact design with a 140mm depth for easy integration
12V-2x6 PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12V-2x6) design is capable of withstanding power failure caused by a running graphics card's instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems


Specially designed cover designed to effectively dissipate the residual heat


Flat cables have much greater flexibility to allow for tighter folding and management of cables


Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

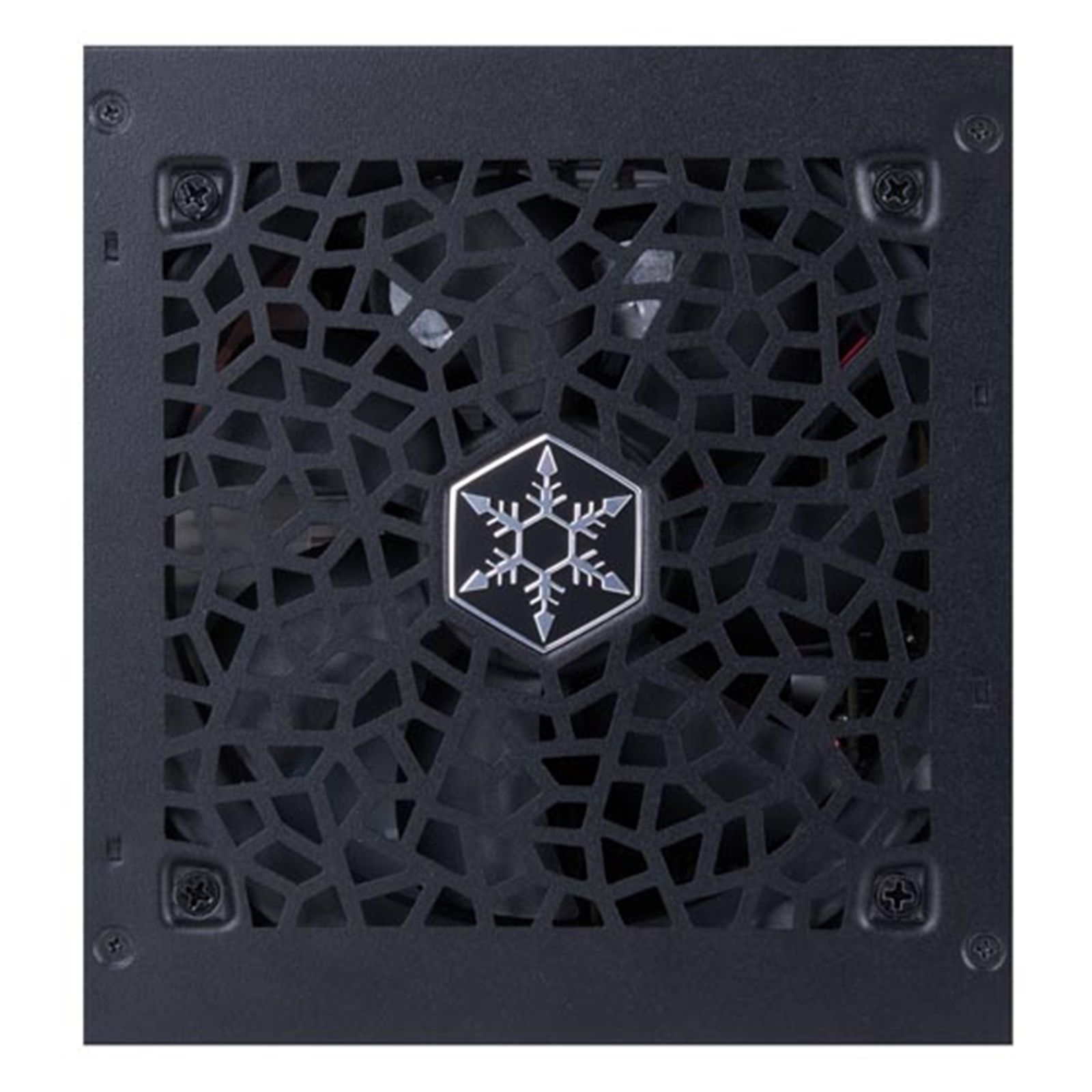

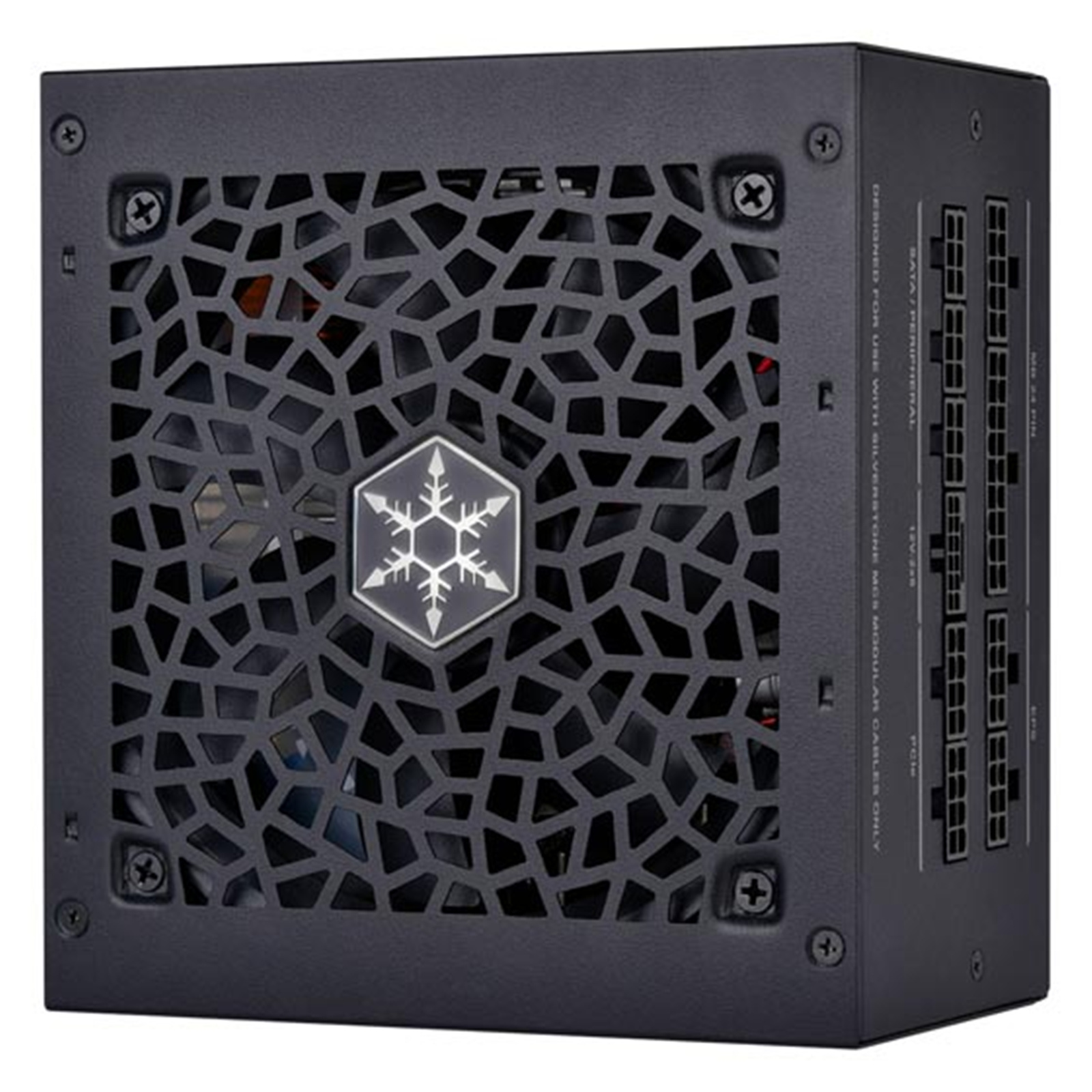

Silent running 120mm fan with advanced semi-fanless operation


Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking


Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection

Product No.

SST-DA850R-GMA (Black)

Model (safety certification)

SST-AX0850MCGD-D

Color

Black (lead-free paint)

Max. DC Output

850W

Power density

471W/L

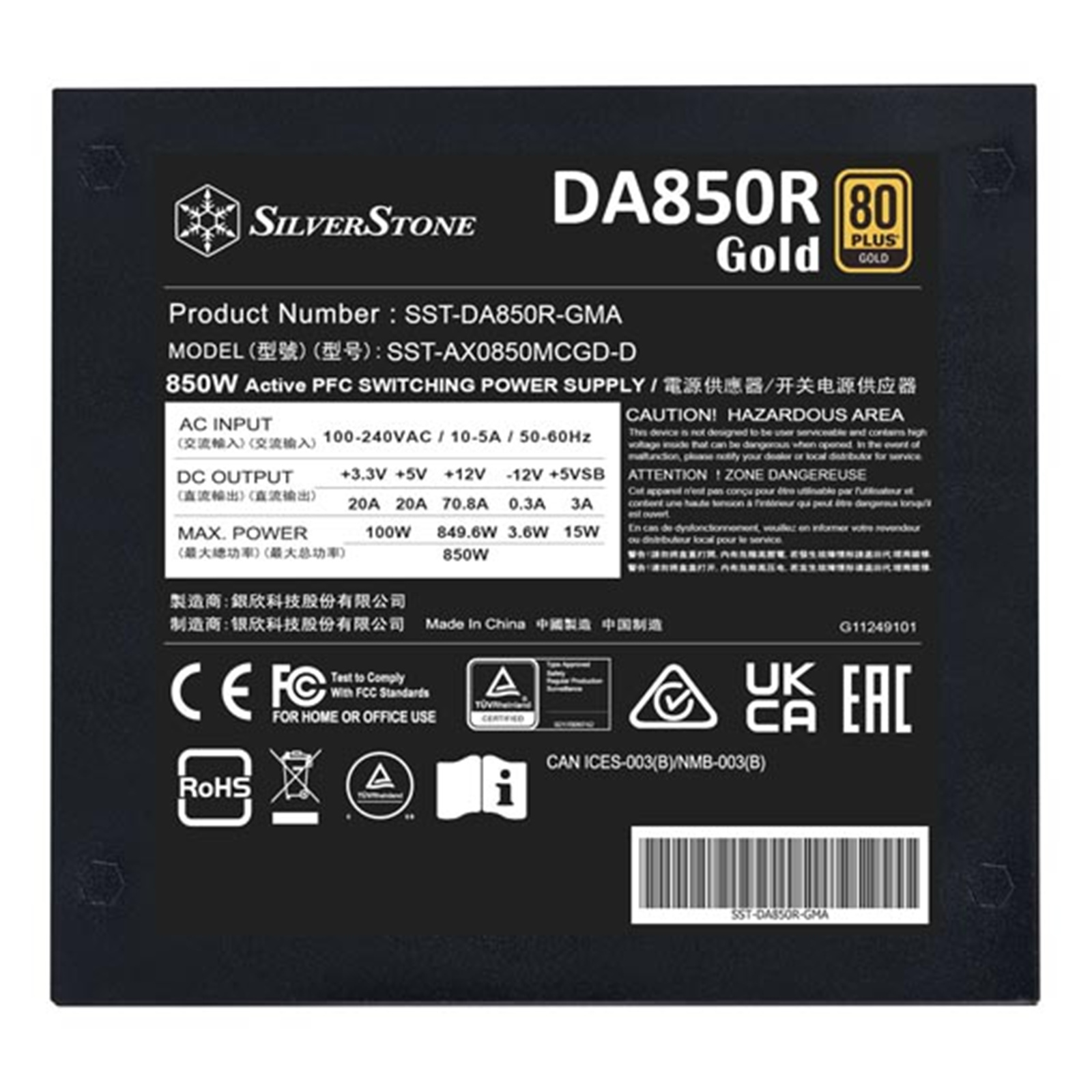

Load Range

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 70.8A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5%-7% ±5% ±8%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV

Combined +3.3V & +5V

100W

Combined +12V

850W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

=87% & <89%

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

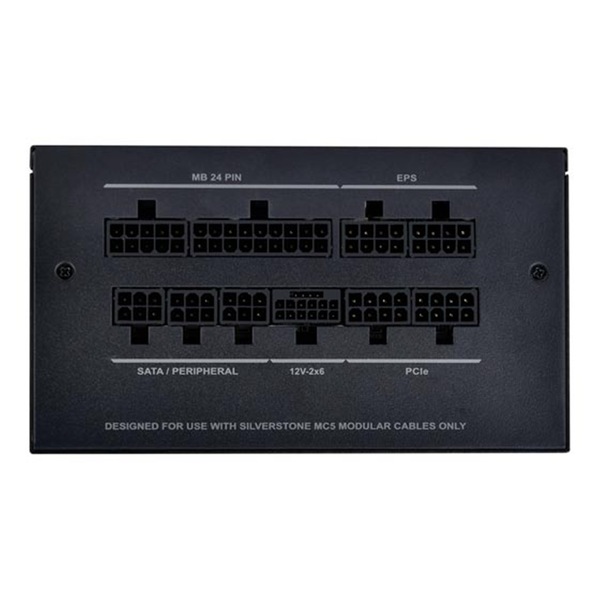

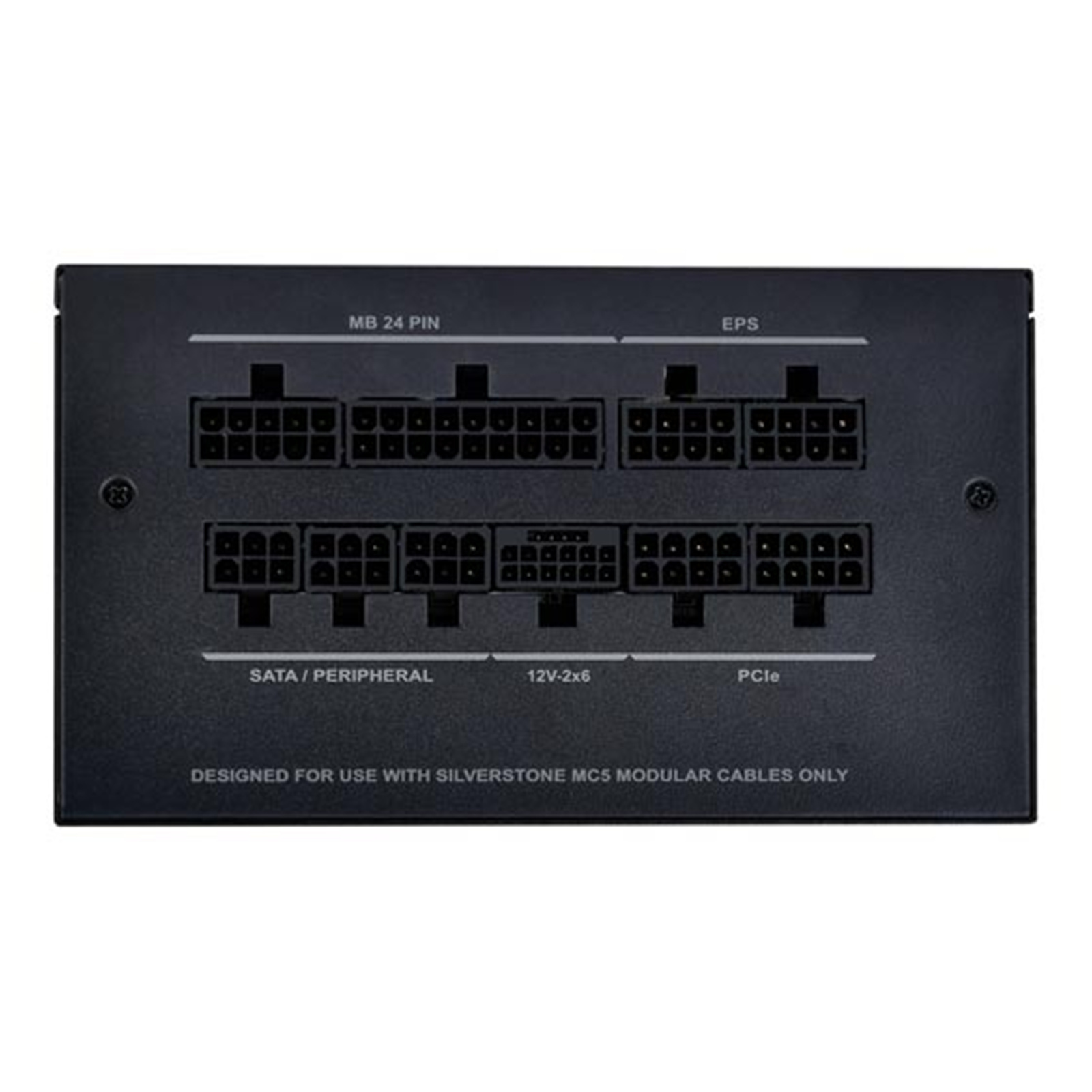

Connectors

1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
* DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables.

Cooling System

Silent 120mm fan

Noise Level

0 dBA minimum

Certification

80 PLUS Gold

Form factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

2.13 kg
- MPN: SST-DA850R-GMA

GTIN: 844761026844
