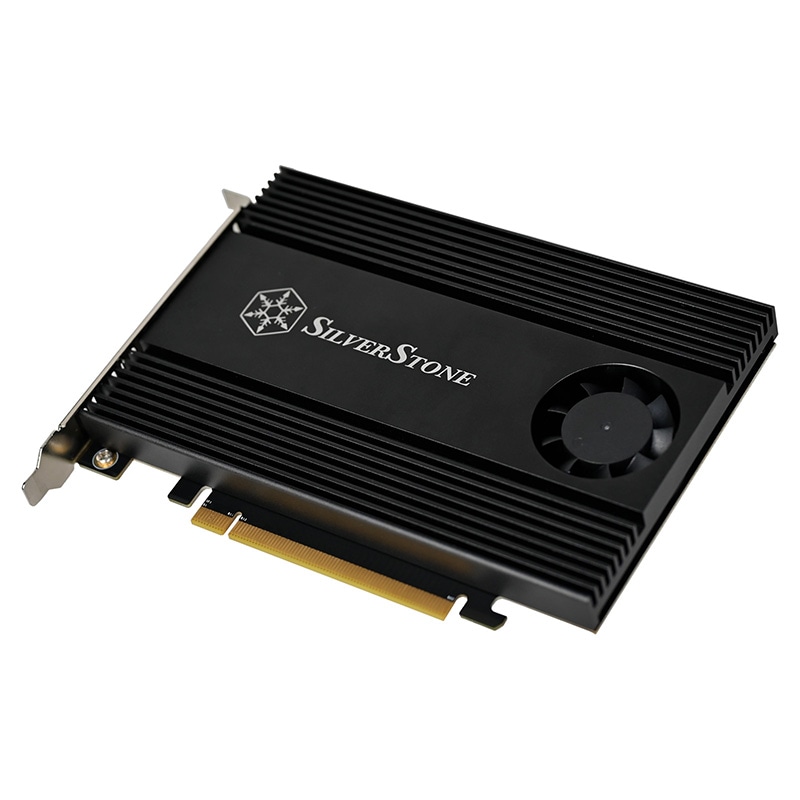

SilverStone ECM40 PCIe4.0 X 16 to 4X M.2 Adapter (SST-ECM40)

Image 1
Hurry! 3 items left!
$159

Collect 159 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

NOTE: The system requires PCI-E Bifurcation to add one more SSD. Please confirm that your motherboard supports PCI-E Bifurcation.




SPECIFICATIONS:

Color

Black

Controller-IC

TPS56221DQPT

PCB Level

UL 94-V0

Interface

PCI-Express x 16

SSD Interface

M.2 (NGFF) M Key

Number of Drives

4

Support Length of M.2 SSD

22x30mm, 22x42mm, 22x60mm, 22x80mm

Module Key

PCIe x 4 NVMe-based M key

LED indicator

The indicator lights will have two modes:

steady and blinking blue light, based on the signals from the motherboard and SSD.

Fan

Speed: 7000 RPM 10%

Dimension: 40mm(W) x 10mm(H) x 40mm(D)

Bearing: Dual ball bearing

Heatsink

Material: Aluminum

Dimension:

109.3mm (W) x 14.2mm (H) x 168mm (D)

4.3" (W) x 0.56" (H) x 6.61" (D)

Thermal Pad

Thickness: 1mm

Operating temperature: -25 ~70

Thermal conductivity: 3W/m.k

Quantity: 4

Dimension:

22mm (W) x 1mm (H) x 70mm (D)

0.87" (W) x 0.04" (H) x 2.76" (D)

Environment

Operating Temperature: 5C~55C

Operating Humidity: 20%RH~80%RH

Storage Temperature: -20C~50C

Storage Humidity: 20%RH~80%RH

Dimension

147.74mm (W) x 21.59mm (H) x 181mm (D)

5.82" (W) x 0.85" (H) x 7.13" (D)

Net weight

501g





SKU: 81905
