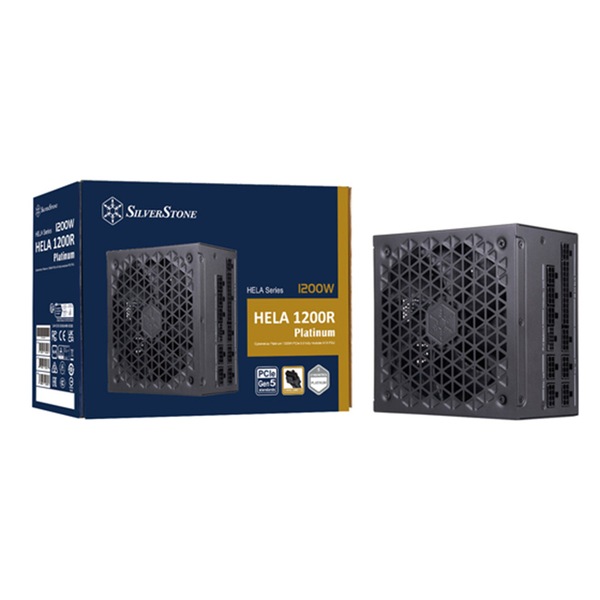

SilverStone HELA 1200W 80+ Platinum Power Supply (SST-HA1200R-PM)

Image 1
Best Price in the Last 14 Days
Hurry! 5 items left!
$315.80
You save $22.40Was $338.20

Collect 315 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout







SPECIFICATIONS:

Colour

Black (lead-free paint)

Max. DC Output

1200W

Power density

620W per liter

Load Range

Output

Max.(Amps)

Min.(Amps)

Range (%)

Line   Reg.(%)

Ripple(mVp-p)


+3.3V

22A

0A

3%

1%

30mV



+5V

22A

0A

3%

1%

30mV

+12V

100A

0A

+5/-7%

1%

70mV

+5VSB

2.5A

0A

5%

1%

40mV

-12V

0.3A

0A

5%

1%

40mV

Combined +3.3V & +5V

120W

Combined +12V

1200W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

87% & <89% overall efficiency

MTBF

100,000 hours

Operating temperature

0C ~ 50C

Protection

Over Current Protection

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Under Voltage Protection

Over Temperature Protection

No load operation

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

6 x 8 / 6-Pin PCIe connectors

1 x 12+4-Pin 12VHPWR connector

12 x SATA connectors

3 x 4-Pin Peripheral connector

1 x 4-Pin Floppy connector

Cooling System

Silent 135mm FDB fan

Noise Level

0 dBA minimum

Certification

Cybenetics Platinum

Form factor

ATX (PS2)

Dimension

150mm (W) 86mm (H) 150mm (D)

5.91" (W) x 3.39" (H) x 5.91" (D)

Weight

2.9 kg

Other

GPU Support list




SKU: 70058
