Simarine Quad Shunt 4x 25A Circuits

Simarine Quad Shunt 4x 25A Circuits

Hurry! 2 items left!

Price	$223.66
	Collect 223 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

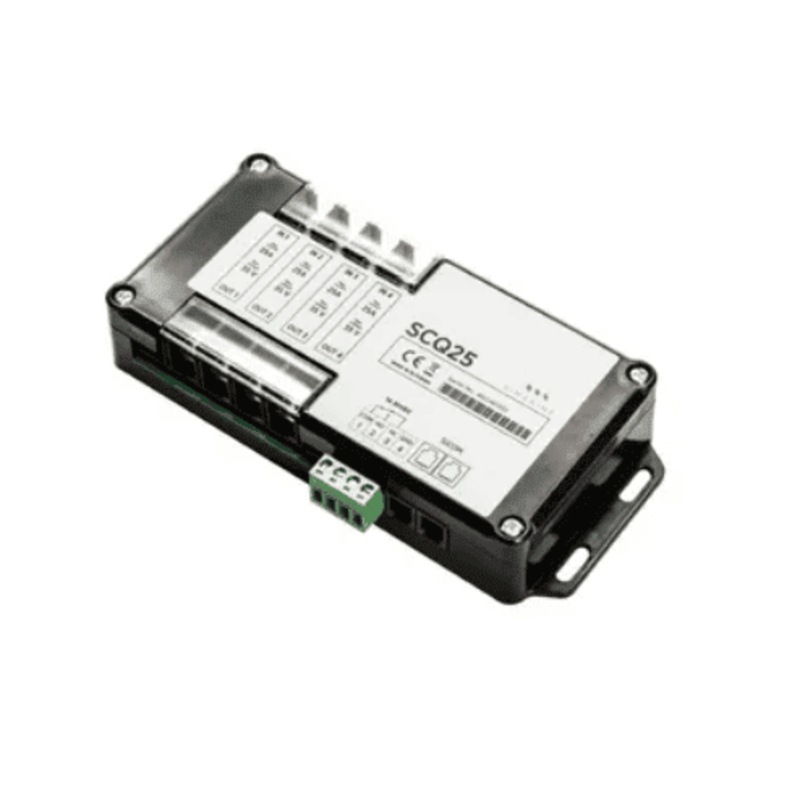

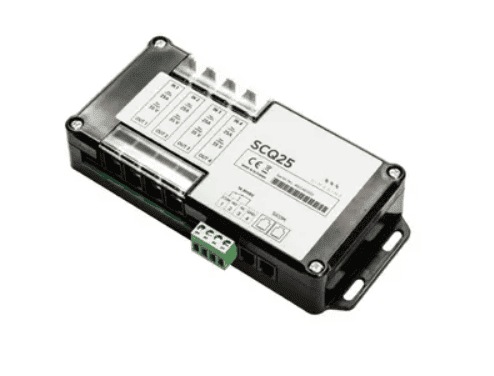

SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems.

Voltage inputs

Per channel 0,01 – 25 A
Resolution 0,01 A
Accuracy ± 0,6 %
Sampling rate 100 ms

Maximal current

Continuous 25 A
Peak current (<1 min) 35 A
Peak current (<5 sec) 50 A
Voltage drop at 25 A 35 mV
Maximum voltage on connections 35 V

Connectivity Up to

Current sensors 4
Relay Common Input (COM) 1
Relay Output Normaly Open (NO) 1
Relay Output Normaly Closed (NC) 1
SiCOM RJ9 Sockets 2

Installation and Dimension

Dimensions (length x width x depth) 182 x 80 x 32 mm
Weight 230 g

GTIN: 3830067940110
