Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz CM423V3

Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz CM423V3

Hurry! 18 items left!

$33.84

Collect 33 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Perth Computers and Office Supplies

Secure ways to pay at checkout

CBSI-CM423V3

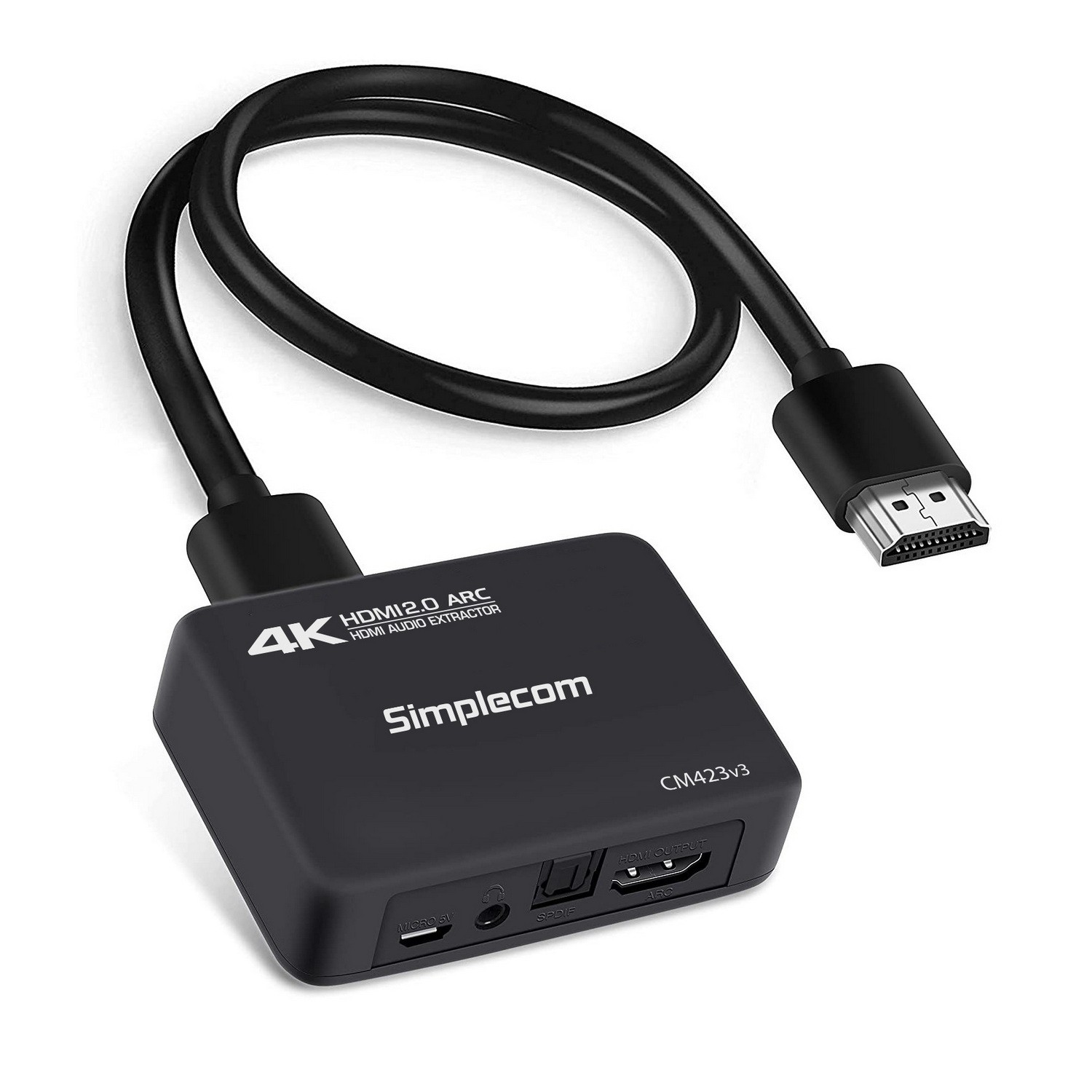

Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz

Optical SPDIF and 3.5mm audio output extracted from HDMI input
One HDMI output for HDMI pass-through
Ideal solution for connecting external speaker system with analog or optical input
SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio
HDMI 1.4b and HDCP 1.4 Compliant
Supports HDMI resolution up to 4K Ultra HD
Powered by USB, plug and play
Supports compressed and uncompressed audio format, such as DTS-HD, Dolby TrueHD, Dolby Digital, PCM, LPCM

Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz
CM423v3 is an HDMI 2.0 audio extractor that supports video resolutions up to 4K@60Hz and offers audio output via optical SPDIF or 3.5mm stereo. It also features ARC (Audio Return Channel) compatibility, allowing direct connection to an ARC-enabled TV. This makes it an ideal solution for outputting audio to an external speaker system with analog or optical inputs, especially for audio systems without HDMI inputs.
It allows you to extract embedded audio from an HDMI source or directly from an ARC-compatible TV, and output the audio separately through either a stereo connector or a digital optical SPDIF connector. It complies with HDMI 2.0b standards, and supports up to 18Gbps of bandwidth, perfect for home theatre setups, 4K gaming, or video streaming on a 4K display. This compact adapter can be placed behind your AV equipment and powered via USB, either from a wall charger or an available USB port on your TV.
Features
Compliant with the HDMI 2.0b standard for broad compatibility
Supports HDMI input audio extraction or HDMI ARC audio extraction modes
Supports 18Gbps bandwidth and HDMI input/output resolution up to 4K@60Hz
Allows HDMI input to be passed through to an HDMI output while extracting audio for external sound system
Supports HDMI ARC, allowing direct audio extraction from ARC-enabled TV
Optical SPDIF and 3.5mm audio output extracted from HDMI input or ARC
HDCP 2.2 compliant, ensuring compatibility with encrypted media
Powered by USB, micro USB port for power input
Supports compressed audio DTS Digital, Dolby Digital and uncompressed audio PCM, LPCM
Specifications
HDMI Version: HDMI 2.0b (backwards compatible)
HDMI resolution support: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
Input: 1x HDMI Input
Audio Outputs: 1x SPDIF (Optical), 1 x 3.5mm Stereo Audio (Analog)
Video Output: 1x HDMI output (HDMI pass-through)
ARC Support: Yes (with switch)
HDMI 3D Support: Yes
HDCP Version: HDCP 2.2
Max Bandwidth: 600MHz
Max Baud Rate: 18Gbps
Support Color Format: 24bit, 30bit, 36bit deep color
Digital audio Support: Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, LPCM
Max Input Cable Distance: 10m AWG26 HDMI standard cable
Max Input Cable Distance: 10m AWG26 HDMI standard cable
Power Input: Micro USB (5V/1A)
Dimension: 75 x 55 x 25mm (LxWxH)
Weight: 43g
Package Contents
1x HDMI Audio Extractor
1x 0.5M HDMI Lead
1x USB Power cable
1x Optical Audio Cable
1x User Manual
