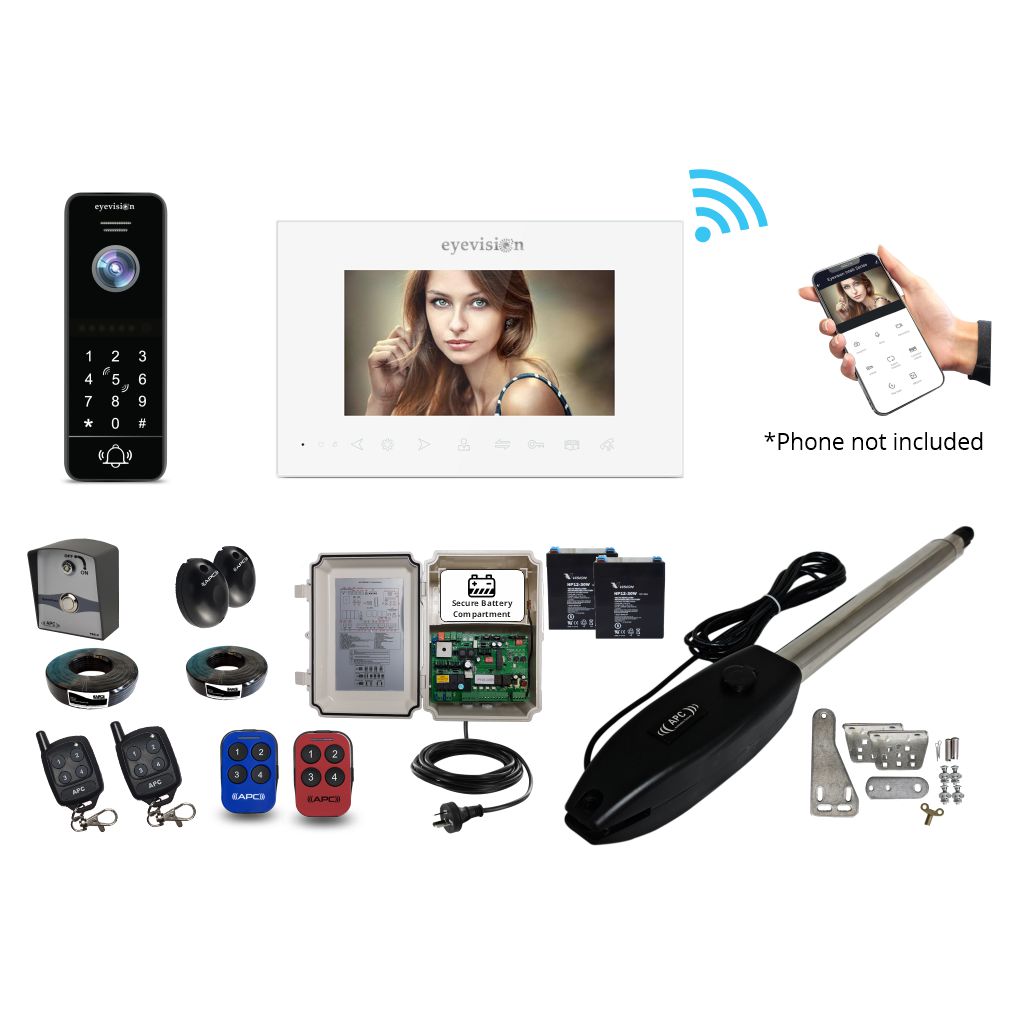

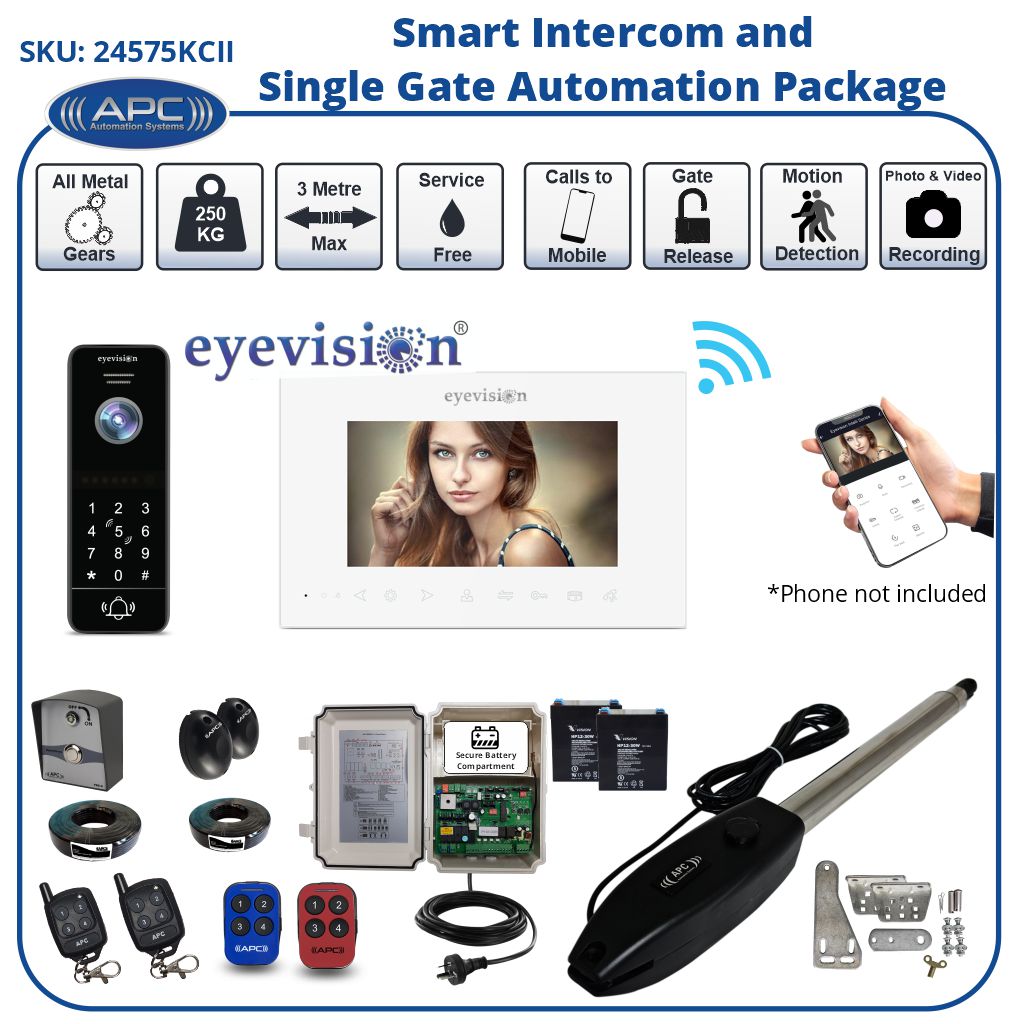

Heavy-Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in an emergency situation. The system can handle light and heavy gates up to 250kg maximum weight of up to 3m maximum lengths.

Emergency Clutch Override

Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.

All Metal Gears

Powerful and whisper-quiet 24V motor and all-metal gears

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A powerpoint

System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High-Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes

Safety Features

Adjustable Overcurrent adjustments
Safety Sensor connection input
Automatic Courtesy Light Output

Supplied with the automation kit the backup battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively, a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

• Up to 15 Metres, Infrared beam operating distance

• Only powers on when the command is given to close the gates

• Alignment led to assist in the installation process

• Weather sealed with the supplied cover seals

• Easy screw down wiring termination

Wired Push Button with Isolation Key

The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop the use of the push-button itself.

The push-button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using a pin number.

The Eyevision Intelli Series intercom is a feature-rich state of the art intercom system boasting every feature requested from an intercom system (and much more...).

Any visitor calls can be received by the APP on your smartphone or tablet along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built-in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.

Two outdoor stations can be connected for front-gate/front door/back door (with motion detection recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transferred to a different station if required. Within the home, you can selectively intercom between any of the installed indoor monitors. All monitors connected to the system can view any of the installed CCTV cameras (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a separate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.

The Intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.

System Capacity Capabilities

• Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
• Supports up to SIX indoor Monitors
• Common independent electric striker/automatic gate release feature
• Supports up to Two CCTV Cameras (CVI, TVI, AHD or CVBS up to 1.3MP)
• Supports Motion Detection for Outdoor Stations (uses it's own built-in sensor)
• Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
• Supports live video stream to a DVR

Indoor Monitor Base Features

• Built-in WiFi to connect to your home internet connection
• Tempered Glass with Touch Sensitive Buttons
• Simple easy to use user Interface
• Free to use Tuya Smart APP for all modern mobile phones and tablets
• 11 Languages to choose from
• Ultra Slim 18mm Depth
• 7" TFT LCD Monitor 1024x600 HD Resolution
• Built-in mute switch
• Intercom calls direct to Smartphone and Monitor Simultaneously
• Intercom internal call and Call transfer
• Calendar screen (time and date) option before entering the main menu
• Anytime REALTIME monitoring of any connected outdoor station/CCTV camera
• Set scheduled ring volumes for Morning, Afternoon, Evening and Night
• Can Enable/Disable Ringtone at the outdoor station

Special Features (Micro SD Required)

• Automatic recording for Motion Detection and Alarm events
• Digital Photo Frame on Standby
• MP3 Player
• Away Voice Message (Voicemail System)
• Custom ringtones

• Ultra-narrow 45mm Width fits onto any post, pier or fence
• 1.3MP AHD Cameras
• 120° Lense
• 45° Wedge Bracket for best mounting direction
• Built-in Keypad with common PIN CODE system
• Built-in IC Tag/Card Reader
• Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
• Lockout feature after too many incorrect PIN/IC tag uses
• Supports Exit Buttons
• Supports Fail Secure and Fail-Safe Electric Strikers
• Supports Automatic Gate Release

The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward-facing and the guest may be standing to its left or right side.

The wedge is a universal mount allowing for both left facing and right facing setups.
