Features:
?

Low-battery warning

Auto-Reset after tigger

Infrared Photoelectronic Sensor

Adopts MCU Auto-procassing Technology

Sound&Flash Alarm &LED indicating Alarm

SMT Manufacture Technology, Reliable stability

Dust-proof, Mothproof and Anti White light interference

Specification:
?

Material: ABS( flame retardant )

Color: White+Red

Power Supply: 2x 1.5V AA battery

Static current: <10μA

Alarm current: <35mA

Alarm indication: LED flashes in Red

Alarm Sound: 80dB/3m

Temperature:-10~50???/span>

Relative Humidity: ≤95%RH

Dimensions: 105X38mm (Dia.XH)

Detecting area: 80?z?at 6~12m installation height;?60?z?at installation height <6m

Installation:
?

1.Avoid installations in places with stagnating somoke, heavy dust, heavy water mist, heavy oil mist, great humidity(95%) and high wind speed(>5m/s)

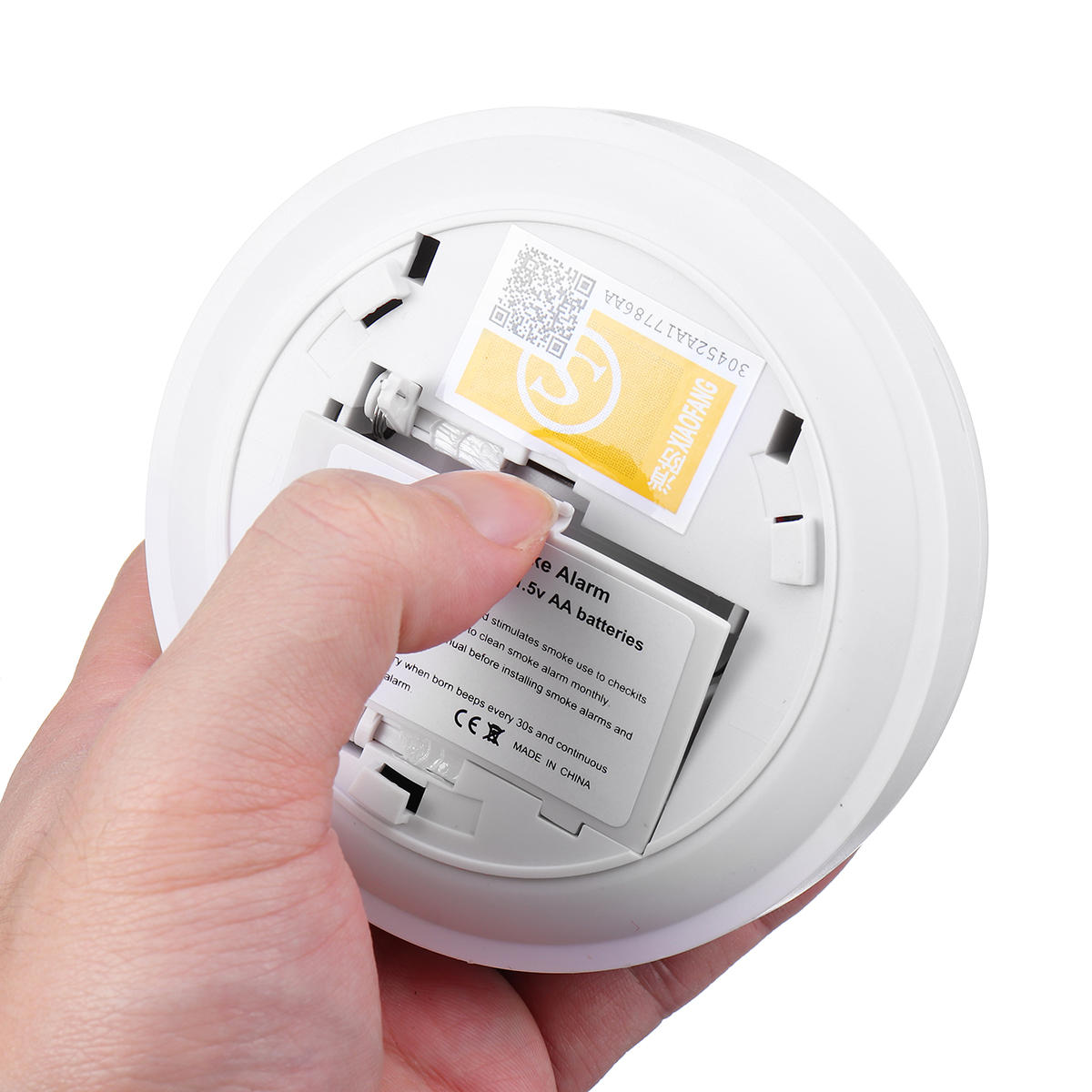

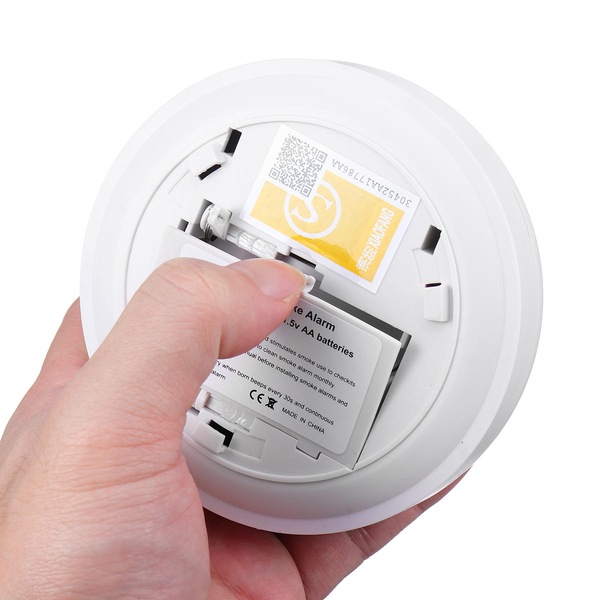

2.Insert the ready battery into the battery cabinet, notice the place of anode and cathode

3.Choose a proper position. Normally, the center of the detection area ceiling is recommended. Fix the detector base into the choosen position. Then put the detector into the base and twist to fasten it. Be sure it is fastened tightly

?

Usage:
?

1.Inserting the ready battery into the battery cabinet and keeping the battery power supply

2.Connecting the power, the detector enters into normal working status. The indicator flashes once per 30 seconds

?

Package included:
?

1 x Smoke Detector (battery not includede)

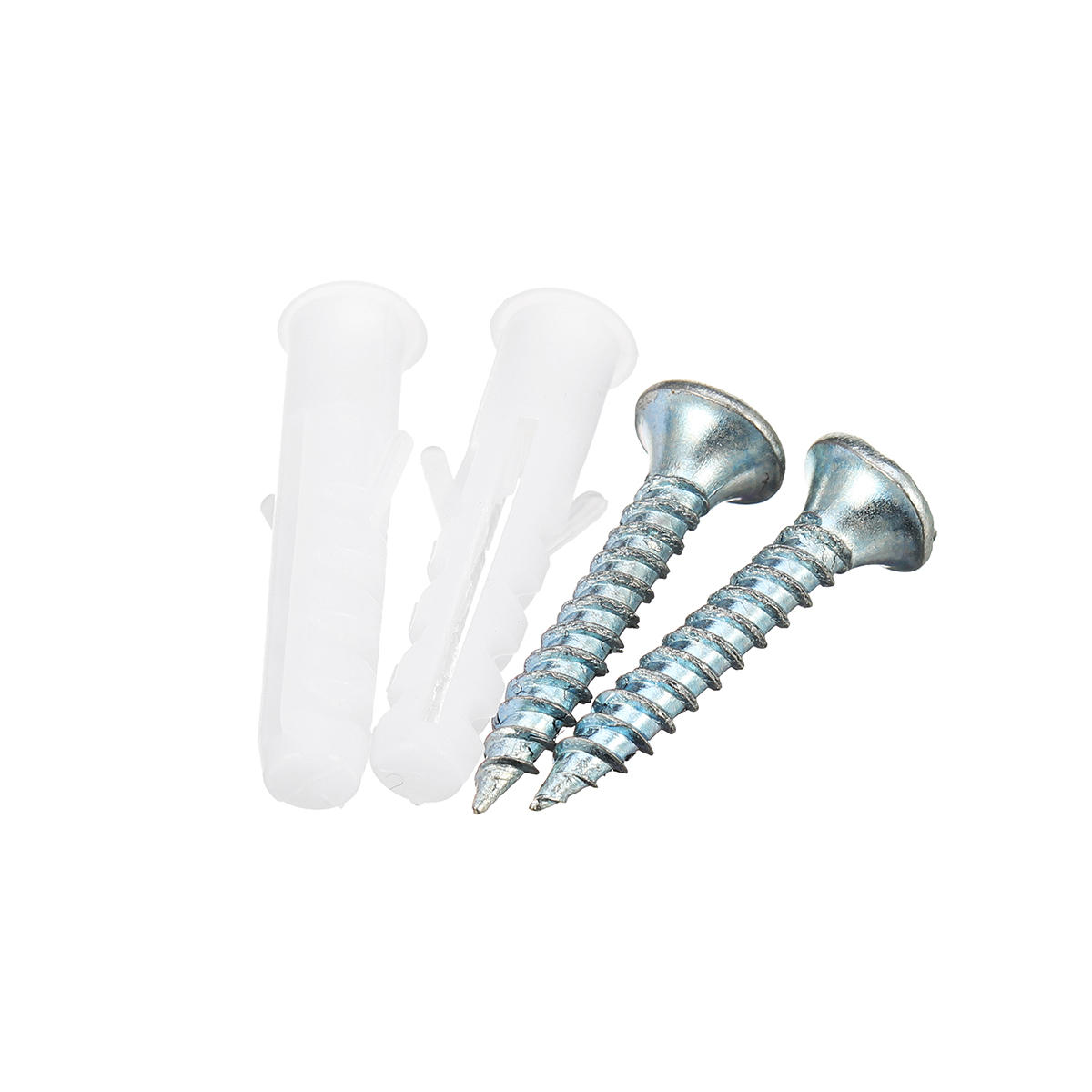

1 x Set Screw Accessories

1 x English Manual

?
