Features:
-Energy Harvest: It features conversion efficiency of up to 94 percent, higher than 75 percent of PWM solar controllers, and will intelligently achieve full charge.
-Innovative MPPT Tech: The maximum power point of multi wave peak will always be rapidly and automatically captured.
-Multi-Stage Charging: A multi-stage algorithm is designed to enhance battery performance and increase its lifespan.
-Upgraded Protection: PV/ battery reverse polarity, over-charge/ discharge, over load/temperature, back feeding night and short circuit protection are embedded.
-Durable Construction: Sturdy ABS housing is impact and shock resistant, and the cover protects terminals against corrosion and shorting.

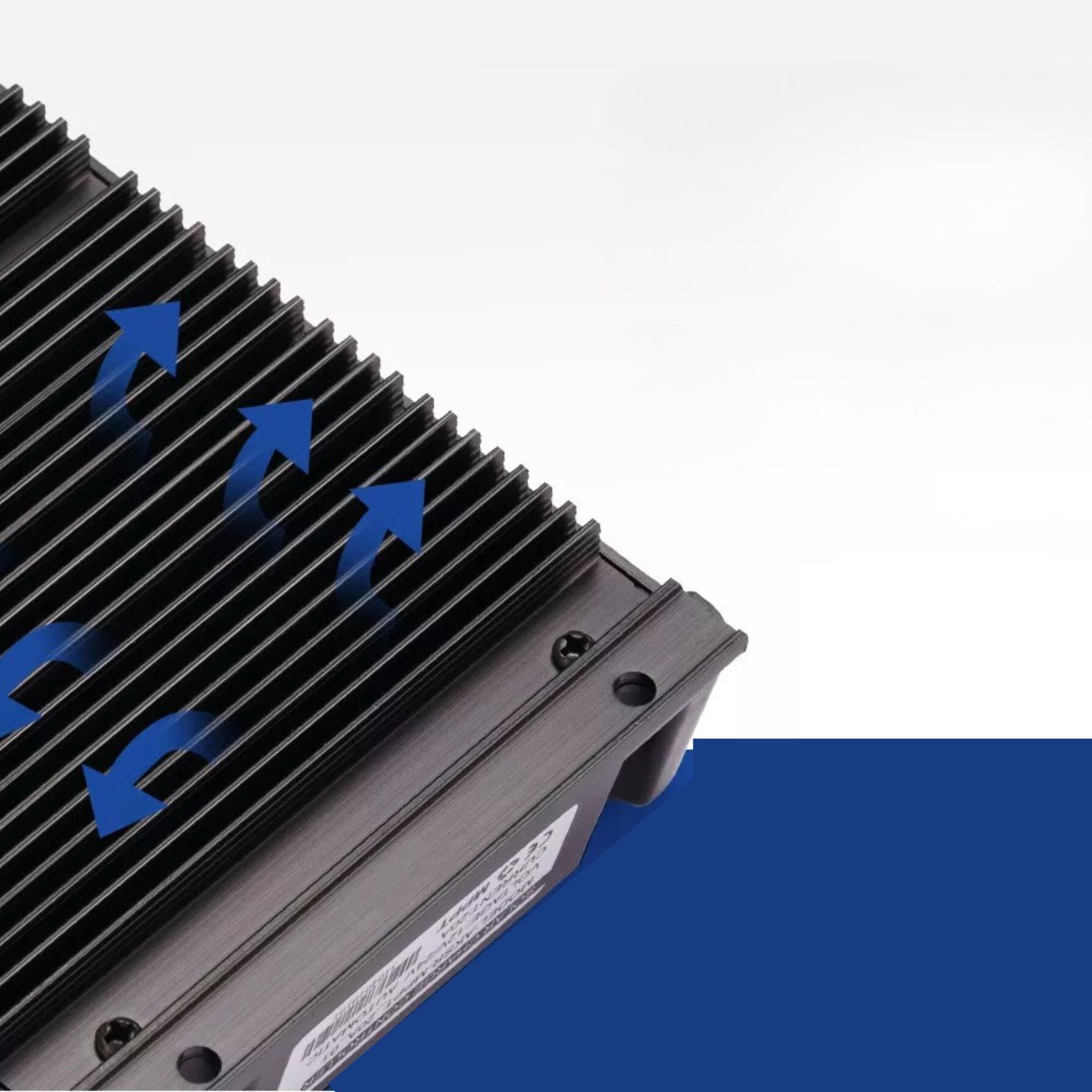

-Rapid Heat Dissipation: With MOSFET to allow larger currents, the upgraded aluminum heat sinks are designed to rapidly dissipate heat for smoother operation.
-Highly Compatible: This solar MPPT controller fits a variety of lead acid deep cycle batteries, including flooded, AGM and GEL, and LiFePO4 batteries.
-User Friendly Design: This MPPT controller features indicators for real-time status of solar panel, load & battery, and USB output for charging mobile devices.

Specifications:
-Model: CY1220-MT
-Rated charge current: 20A
-Rated discharge current: 20A
-Rated Voltage: 12V/24V auto work
-MPPT efficiency: Max: 99-percent
-Over load, short circuit protection: 1.5 rated current
-No load current: below 10mA
-Over voltage protection: 16V;x2/24v
-Charging voltage cut-off: 14.7V;x2/24v
-Discharge recovery voltage: 11.5V;x2/24v
-Over discharge voltage cut-off: 10.5V;x2/24v
-USB output: 5V 1A
-Operating temperature: -35degree C to plus 55degree c

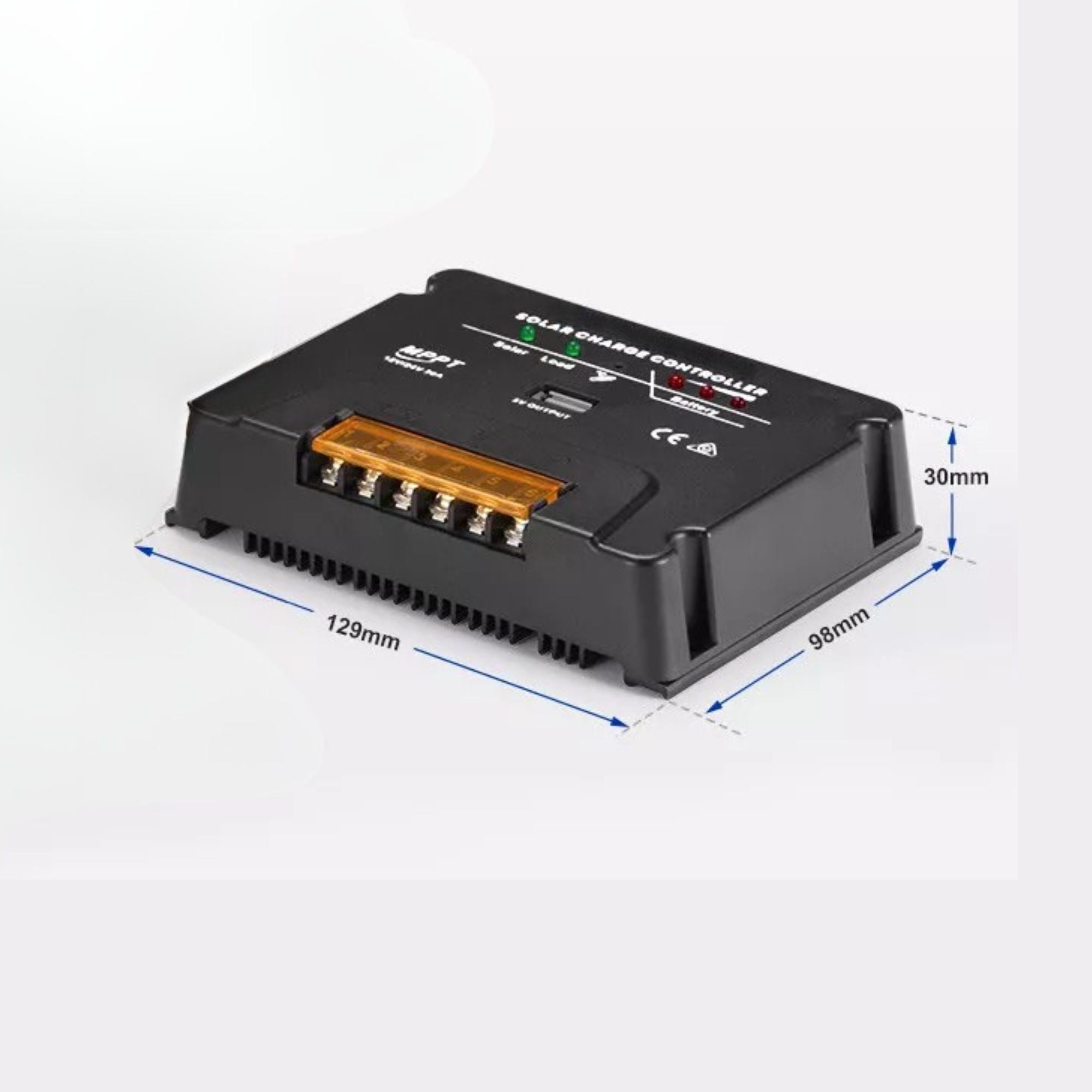

-Dimension of controller: 131 x 99.5 x 29.5mm L x W x H
-Weight: 300g

Package Inclusions:
-1 x MPPT Controller
-1 x User Manual

Notes:
-Actual colors may vary due to computer monitors displaying colors differently.
-Due to the nature of the manufacturing process and manual measurement, product sizing may vary slightly.
