Australian summers continue to get hotter and so do our roof spaces, sheds, animal stables. A great way to make your homeor business cooler in summer is to use solar wall ventilation likethe SolarKing solar fan.

Roof temperatures in Australia during summer often reach 50 to70oC and the best way to reduce these high temperatures in toinstall the SolarKing fan

The SolarKing solar exhaust fan uses the sun and only startsworking when the internal temperature reaches 25oC so as not toremove warm air in the winter when it is needed to keep yourspace warm (whirly birds operate regardless of the temperature.When the sun disappears in the evening the SolarKing will stopventilating but at this time the space is now cooling naturally asthere is no sun.

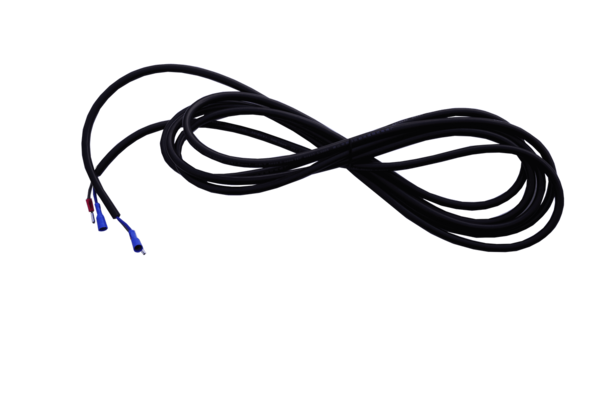

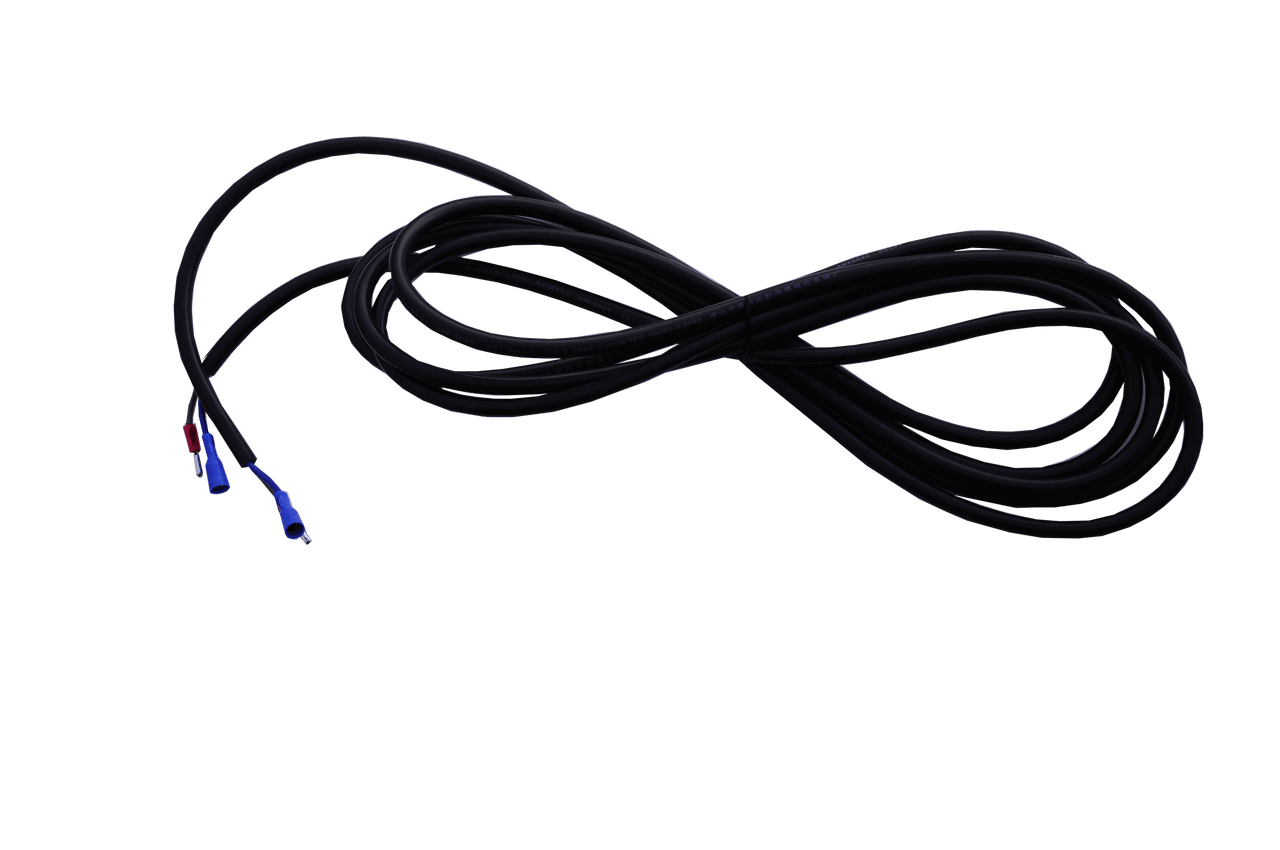

The wall fan is easy to install, just cut a 320mm hole in the wall orgable and then insert the fan and fix in place with 4 bolts or largetech screws (4x dyna bolts included tech screws not). The run theincluded 4M cable and solar panel to the roof and fix the solarpanel down with the included roof mounting kit.

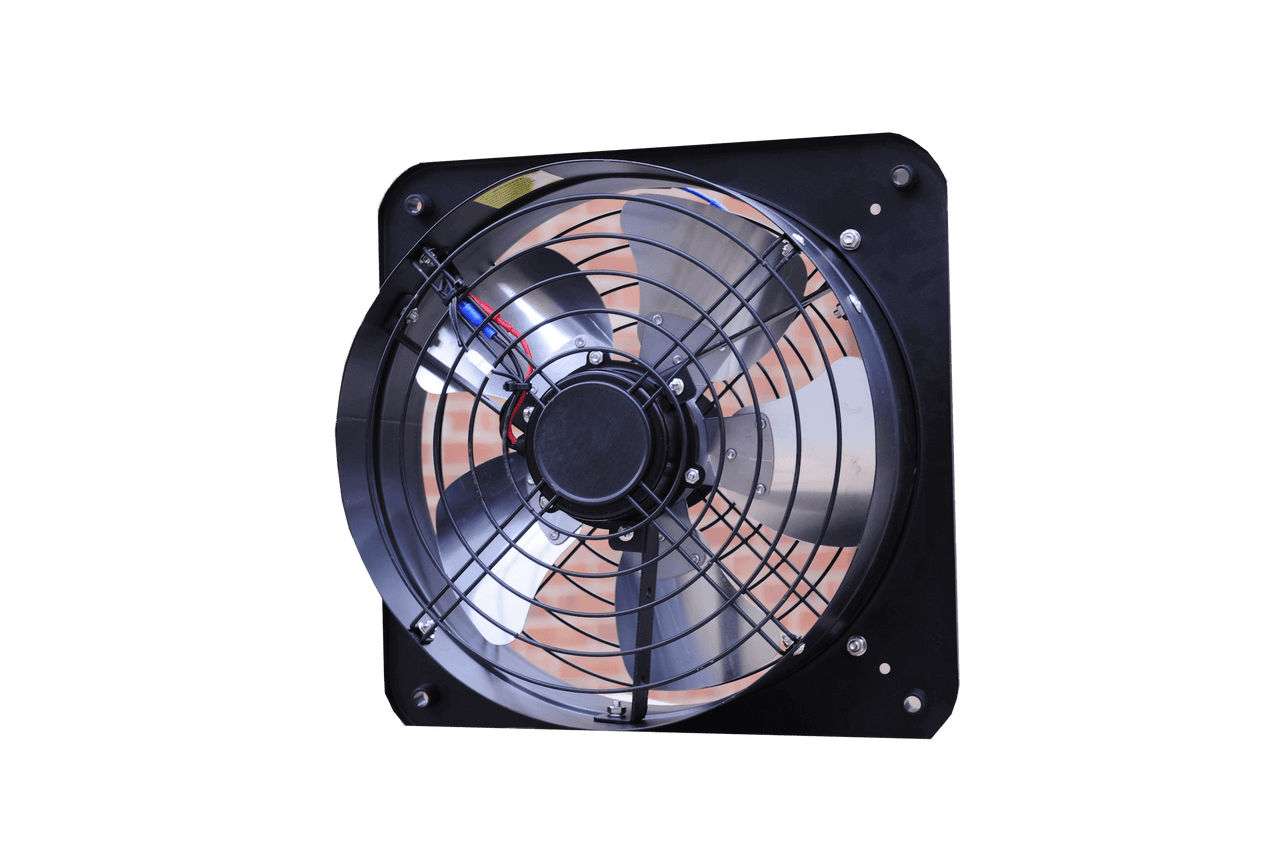

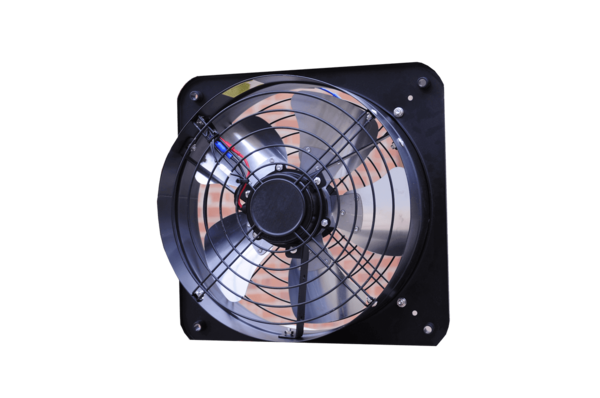

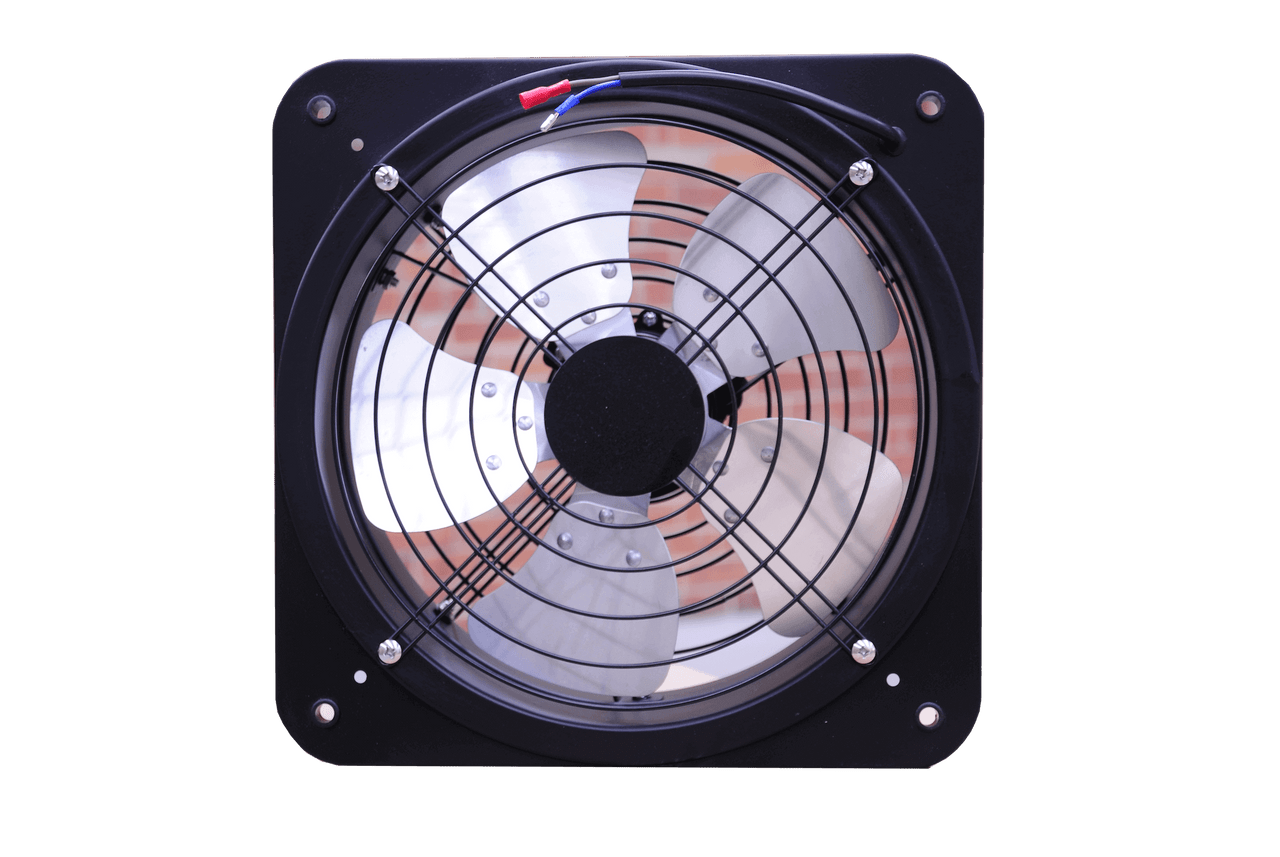

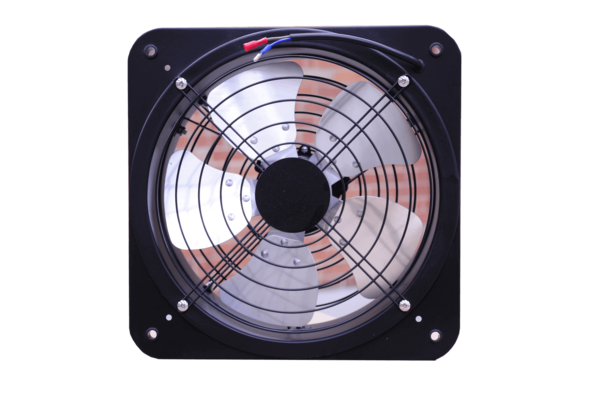

The unit has grills inside and out to stop pest entering and theprotect fingers from the high speed 5 blade metal blade fan.

So if are looking to make a big change to your comfort levels thissummer and looking to reduce the high costs of power using airconditioners, let the free power of the sun to do the work for youand use you air conditioning a great deal less.

Features

• Increase comfort levels in homes and work places


• Reduce air conditioning costs


• Extracts 20x more air than a "Whirly Bird"


• Free airflow design


• Reduces roof temperatures by up to 30oC


• Solar Powered means no running costs ever


• Thermostatically controlled means no heat loss during winter


• Brushless DC motor for quiet operation and long life

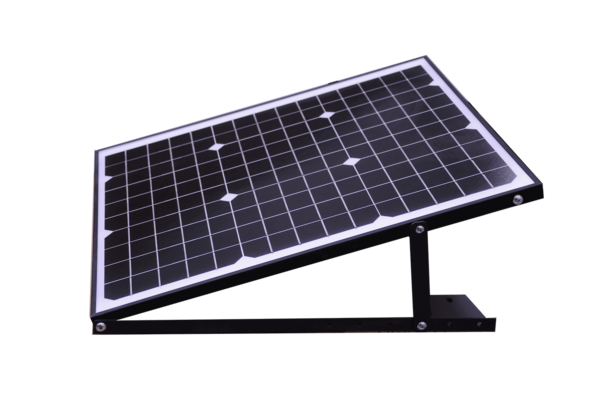

• Solar panel roof mounting kit now included


• New V2.5 Model


• Corrosion resistant, suitable for coastal regions


• Easy installation, no electrician required


• Reduces condensation build up in your roof space


• Improves efficiency of ducted air conditioning systems by reducing the extreme heat penetrating ducting.


• Lightweight design also assists easy installation


• SolarKing is Australian owned and operated


• Suits sheds, gable roofs, animal stables, portables basically anywhere that walls are easier fans compared to the roof version

Specifications

• Model: 320MM SWVF


• Capacity: 2100CBM Per Hour


• Motor :35 Watts, 6-19VDC, 1600RPM Max, Brushless motor with double shielded ball bearings

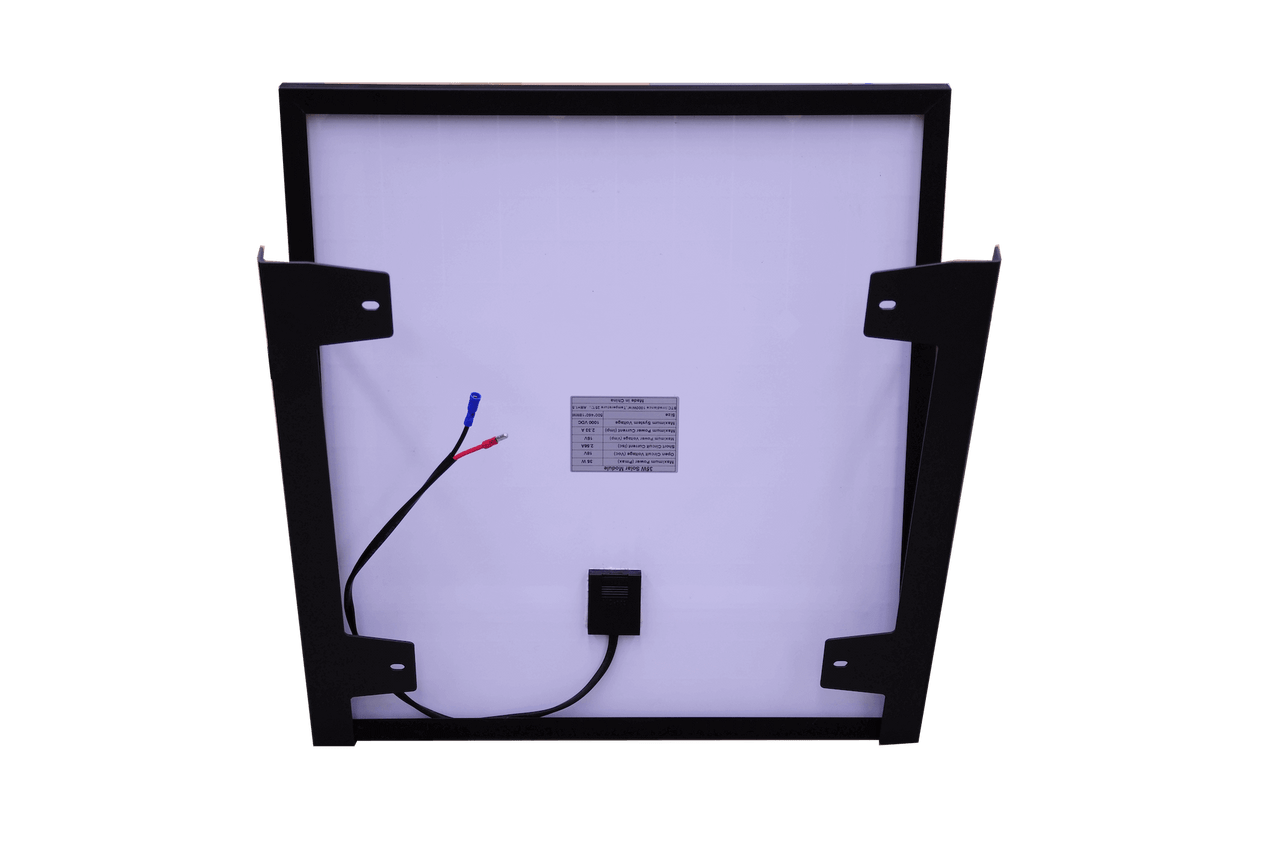

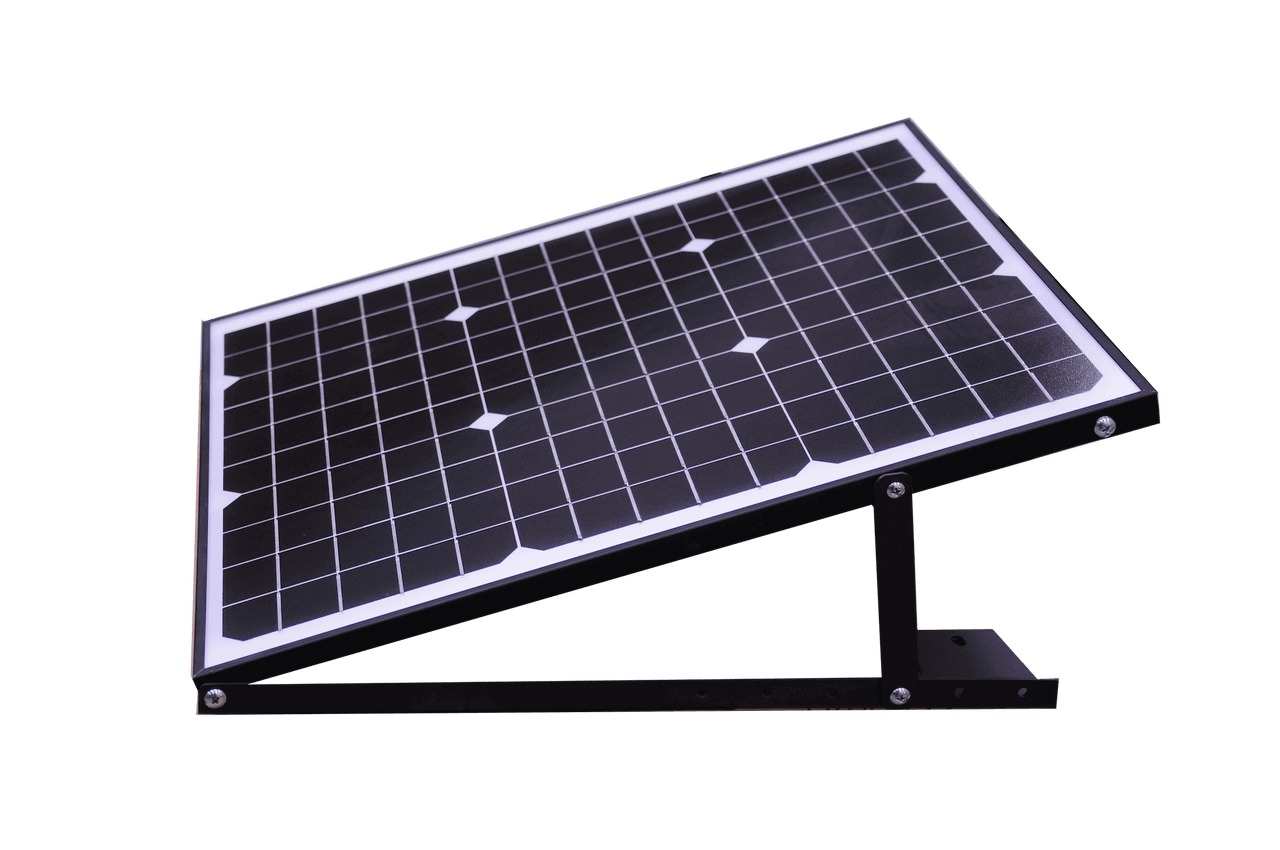

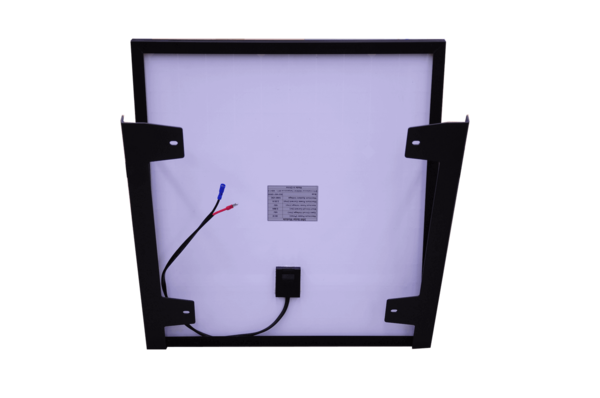

• Solar Panel Type: Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass


• Solar Panel Output: 35 Watts (PMax), 15VDC (Vmp), 2.33A (Imp), 18V (Voc), 2.56A (Isc


• Fan: 300mm 5 Blade Balanced plastic Low Resistance Noise: <43dBA


• Automatic Shut Off: <25oC +/- 5%


• Product Dimensions: 356x356x130mm


• External Wall Dimensions: 315x315x110mm


• Body Dimensions: 320x320x170mm


• Solar Panel Dimensions: 460x500x18mm


• Product Weight (Fan): 2.1Kgs


• Product Weight (Panel/Cable): 2.5Kgs


• Construction: Steel Body, Aluminium Solar Panel Frame,


• Colour: Black Powder Coated


• Packing Dimensions: 560x540x240mm


• Packing Weight Combined: 5.5Kgs


• Warranty: 2 Year Warranty (10 Years on Solar Panel)


• Version: 2.5
