Solid State Relay 4-32VDC Input 30VDC 100A Switching
,gravity=Center,allowExpansion)
Collect 89 Everyday Rewards points
Collect 89 Everyday Rewards points

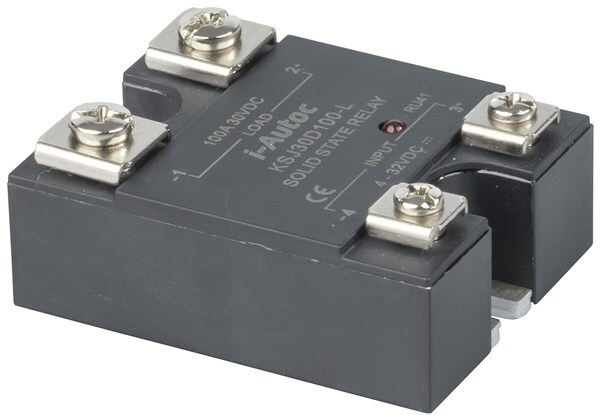

This panel mount solid state relay offers 4 -32VDC input control, with a switched output rated at 30VDC/ 100Amps. Switching high current DC loads normally requires use of a contactor to avoid arcing as the contacts try to separate. This solid state relay uses MOSFET technology to provide an economical and reliable method of switching medium to high power DC loads. This means there is no arcing and the low on-state resistance provides a viable alternative to the bulky and expensive contactors.
Note: Inductive loads must have diode suppression (Refer data sheet wiring diagram)
Output Circuit
• Load Voltage: 0-30VDC
• Load Current: 0.02-100A
• Max On-State Resistance: 0.007Ohms
• Max On-State Voltage Drop: 0.35V
• Max Turn On Time: 0.5ms
• Max Turn Off Time: 0.5ms
• Max Surge Current: 240A (10ms)
Input Circuit
• Control Voltage: 4-32VDC
• Control Current: 28mA max.
• Min Turn Off Voltage: 1.0VDC
• Input Resistance: 1.2kOhm
DC Voltage : 3.00000000V, 32.00000000V |
DC Current Draw : 28.00000000mA |
Mounting Method : Chassis |
Attachment / Securing Method : Screw Down |
Mount Screw Quantity : 2.00000000pc |
Mount Screw Size : 2.00000000mm |
Overall Screw Spacing (H) : 47.50000000mm |
Device Type : Solid State Relay |
Input : DC |
Contact format : SPST |
DC Contact Voltage : 0.00000000V, 30.00000000V |
DC Switching Current (Closing) : 0.02000000A, 100.00000000A |
Operation Time : 0.50000000ms |
Release Time : 0.50000000ms |
MPN: SY4086
