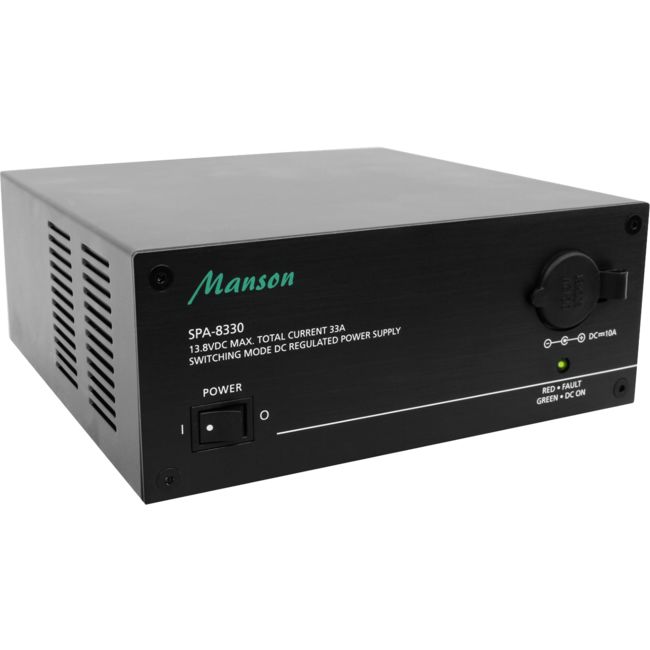

MANSON SPA8330 33A Cont 36A Max 13.8Vdc Power Supply Bench Top Black Quiet Cooling Fan Variable

MANSON SPA8330 33A Cont 36A Max 13.8Vdc Power Supply Bench Top Black Quiet Cooling Fan Variable

Hurry! 1 items left!

$366

Collect 366 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

Overview

Bench Top Power Supply

An advanced new circuit design makes this power supply with higher efficiency, regulated output and specifically suitable for use with radio equipment. The power supply provides a stable, clean and RFI filtered suppressed and filtered DC source.

The smart fan speed control program will adapt the just the right speed (0-100%) to ensure a quiet and safe operation at various ambient temperature and power output.

The isolated ground design allow parallel and series connection of power supplies. The constant current limiting,over temperature, over voltage protections offer reliability and protection to the power supplies and the load.

Features

High RFI immunity
Wide Range AC input voltage
Quiet cooling fan variable speed operation
Overload, Short circuit, Over temperature protection by constant current
Power Factor Control
Isolated Ground
User adjustable fine tune setting (10V - 15V)

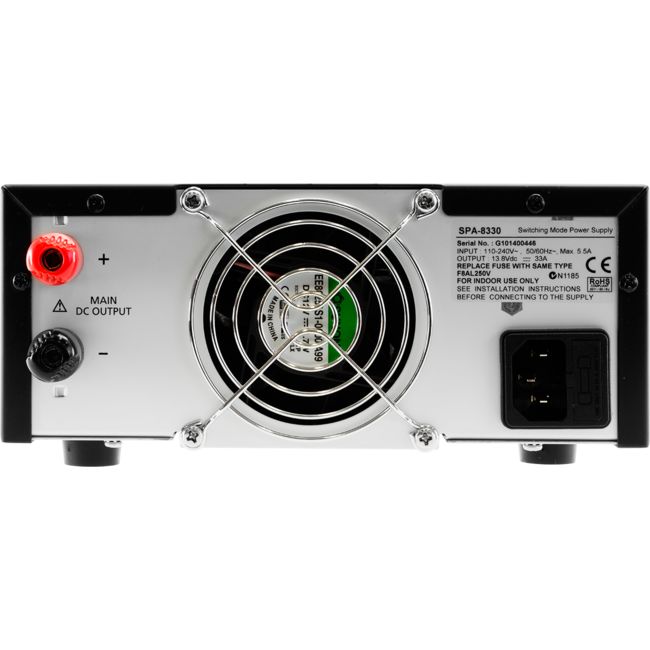

Binding post and cigar socket DC output

Specifications

Model	SPA8330B
Output Voltage	Fixed 13.8V DC ±0.5V
Output Current (Main Output Posts)	33A Continuous, 36A Max. (30sec ON / 30sec OFF)
Output Current (Main Output Posts + Cigar Socket)	33A Continuous, 36A Max. (30sec ON / 30sec OFF)
Ripple & Noise	≤50mV (p-p) 5mV r.m.s
Load Regulation (10-100% Load)	≤50mV
Line Regulation (100-264V AC Variation)	≤20mV
Input Voltage	110V - 240V AC 50/60Hz~
Indicators	Red Color Fault LED Indicator
Cooling System	Fan Cool (0 to full speed)
Operating Temperature	0°C to 40°C
Protections	Overload Over Temperature Short Circuit Protection (by Constant Current Circuitry) Output Over Voltage Protection
Approvals	CE EMC: EN 55022 LVD: EN 60950
Dimensions (W×H×D)	200mm × 80mm × 213mm (7.8″ × 3.2″ × 8.4″)
Weight	2.6kgs (5.7lbs)
