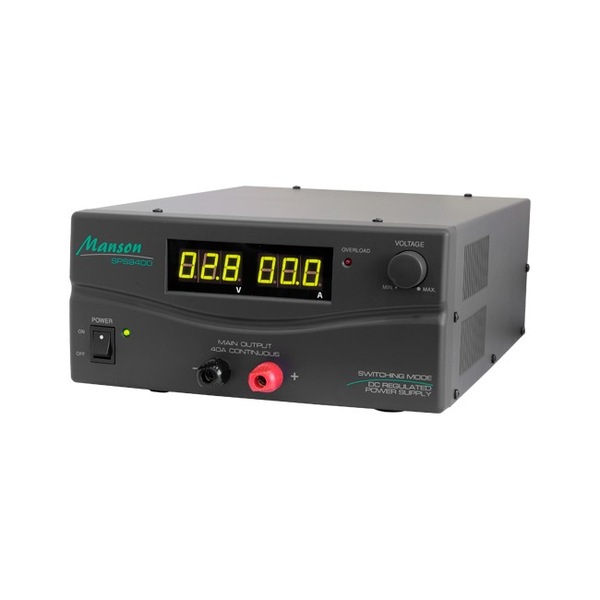

MANSON SPS9400 40Amp 3-15V DC Power Supply Digital Bench Top Dark Grey 40A Current Output 40AMP

1 Review

Image 1
Limited Stock
$456

Collect 456 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
40 AMP 3-15V SWITCHING MODE DC REGULATED POWER SUPPLY - Colour: Dark Grey

This series of HIGH POWER SWITCHING MODE DC REGULATED POWER SUPPLIES provides high current 40 Amps output in a lightweight and compact size case. They are suitable for a wide range of uses, such as radio equipment, and are ideal for high power car stereo work. In addition to variable output from 3 to 15VDC, a fixed 13.8VDC can be selected. Overload, over temperature, and over voltage protection are standard.

  • 40A current output
  • High efficiency
  • Adjustable output voltages 3V to 15V
  • Fixed voltage mode at 13.8V
  • Light weight and small size
  • Overload temperature protection
  • Current fold-back circuit with LED indicator prevents overloading
  • Over voltage protection at 16.5V
  • Variable speed thermally controlled fan
  • High RFI stability
  • Power factor correction >0.95

Specifications

Variable Output Voltage 3V to 15V DC
Fixed Output Voltage Mode 13.8V DC
Rated Output Current 40A
Ripple and Noise (P-P) 50mV
Load Regulation 200mV
Line Regulation 50mV
Input Voltage 230V AC / 50Hz
Efficiency >78%
Meter Type LED Meter
V meter Range 3 digit display
A meter Range 3 digit display
Meter Accuracy 1% + 2 Digits
Protection Devices Overload, Short Circuit, Over Temperature, OVP
Cooling System Variable Speed Thermally Control Fan
Approvals CE EN61558, EN60950, EN55022, EN55011
Dimensions (W×H×D) 220mm × 110mm × 300mm
Weight 3.5kg
Remarks Power factor correction >0.95 at optimal load
