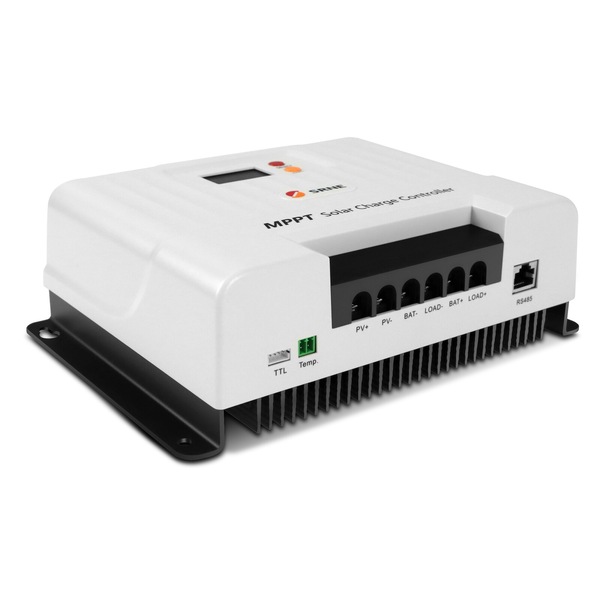

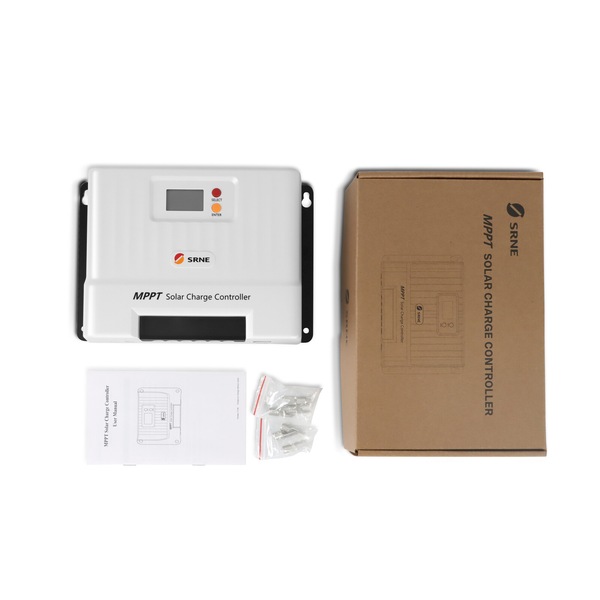

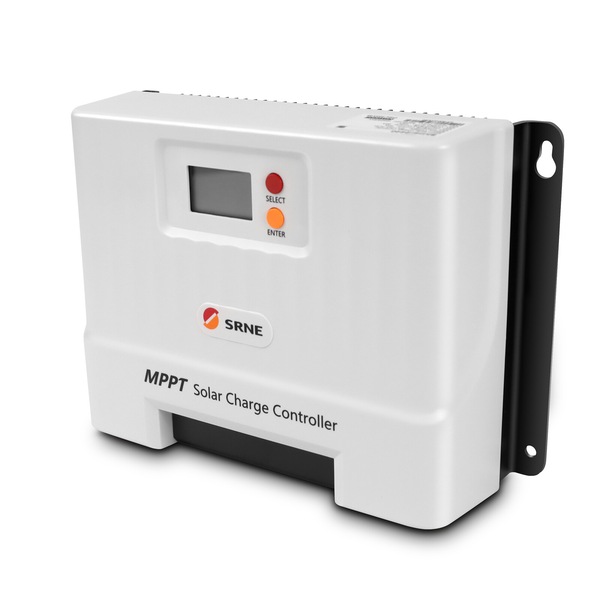

SRNE 12V/24V 20A MPPT Solar Charge Controller Lithium Battery LCD Display

Image 1
Image 2
Image 3
$184.99

Collect 184 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals
Secure ways to pay at checkout
Features
  • [Advanced Maximum Power Point Tracking] This series controller adopts the industry-leading MPPT which tracking efficiency up to 99.9% to achieve the maximum energy tracking for the solar panel, that is, it can quickly and accurately track the maximum power point of the solar battery on any condition.
  • [Temperature Sampling and Control] Fitted with a Remote Temperature Sensor, the MPPT Charge Controller can measure battery temperature in real-time. Connect the temperature sensor to the corresponding temperature interface to achieve the high and low temperature protection for the battery and the temperature compensation for the charging voltage of lead-acid battery (no temperature compensation for the lithium battery), assuring stable and constant charging.
  • [Support TTL & RS485 Communication] MPPT solar charge controller has powerful TTL and RS485 communication protocol function. By connecting the controller with other devices, you can easily obtain the status information of the charger, adjust battery charging parameters, etc.
  • [Intelligent Protection Functions] MPPT provides multiple protection functions: Over-temperature protection of device, Battery over-temperature protection, Input over-power protection, PV input side too high voltage protection, PV input reverse-connection protection, Reverse charging protection at night.
Specifications
  • Max. Solar Input Power 12V/260W 24V/520W
  • System voltage: 12V/24V
  • Rated charging current: 20A
  • Static power consumption: ≤10mA
  • Maximum solar panel power: 260W/12V; 520W/24V
  • Maximum PV open-circuit voltage: 60V (55V protection, 50V recovery)
  • MPPT operating voltage range: (Battery voltage +2V)~45V
  • Battery operating voltage range: 8V-32V
  • MPPT tracking efficiency: >99%
  • Charging conversion efficiency: 85%-98% (10%-100% of rated power)
  • Rated load current: 20A
  • Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
  • TTL communication: Baud rate: 9,600 bps
  • RS485 communication: RJ45 interface, with power output 5V/200 mA, The baud rate is 9,600 bps by default, adjustable.
  • Bluetooth communication: Optional
  • CAN communication: RJ45 interface, optional (RV-C protocol)
  • Historical data: Save the last 200 days of historical data
  • Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection, battery reverse connection protection, battery end short circuit protection.
  • Grounding type: Grounding of common negative electrode
  • Cooling mode: Natural heat dissipation
  • Charging current setting: Yes
  • Full-charging setting: Yes
  • Constant voltage output setting: Yes
  • Charging temperature compensation of lead-acid battery: Yes
  • Temperature unit setting: Yes
  • Overload/Short-circuit protection: Yes
Environmental Data
  • Protection grade: IP32
  • Operating ambient temperature range: -35°C~65°C
Mechanical Specifications
  • Dimension: 181*118*61.7mm
  • Mounting hole spacing: 161*96mm
  • Weight: 650g
  • Fixed hole position: Φ4.5mm
