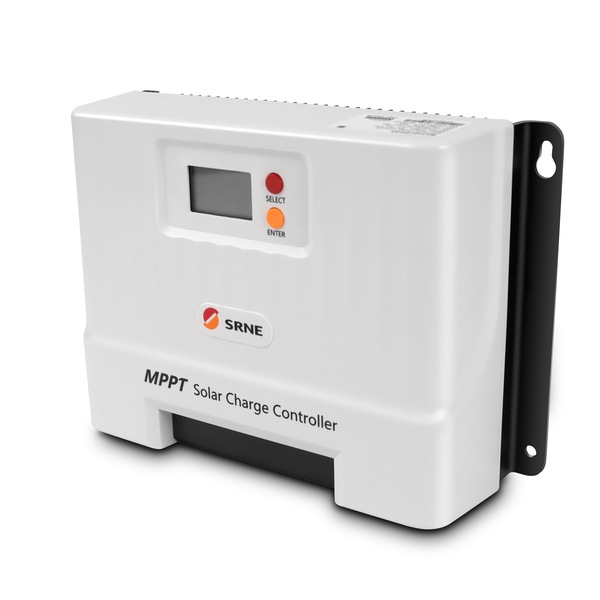

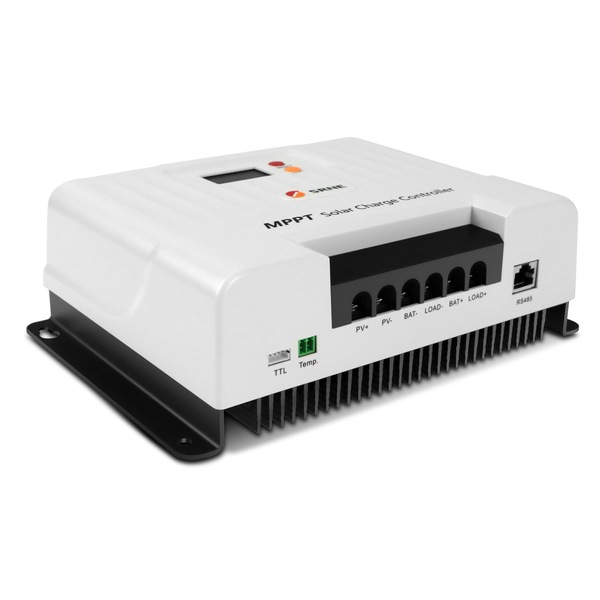

SRNE 20A MPPT Solar Charge Controller 12V/24V Adjustable LCD Display Solar Panel Regulator for Gel Sealed Flood and Lithium Batteries

Image 1
Image 2
Image 3
$109.99

Collect 109 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
SRNE MPPT Solar Charge Controller Makes Your Energy Management More Efficient!

[Advanced Maximum Power Point Tracking]
This serie controller adopts the industry-leading MPPT which tracking efficiency up to 99.9% to achieve the maximum energy trackingfor the solar panel, that is, it can quickly and accurately track the maximum power point of the solar battery on any condition.

[Temperature Sampling and Control]
Fitted with a Remote Temperature Sensor, the MPPT Charge Controller can measure battery temperature in real-time. Connect the temperature sensor to the corresponding temperature interface to achieve the high and low temperature protection for the battery and the temperature compensation for the charging voltage of lead-acid battery (no temperature compensation for the lithium battery) , assuring stable and constant charging.

[Support TTL & RS485 Communication]
MPPT solar charge controller has powerful TTL and RS485 communication protocol function. By connecting the controller with other devices, you can easily obtain the status information of the charger, adjust battery charging parameters, etc.

[Intelligent Protection Functions]
MPPT provides multiple protection functions: Over-temperature protection of device, Battery over-temperature protection, Input over-power protection, PV input side too high voltage protection, PV input reverse-connection protection, Reverse charging protection at night.

[Max. Solar Input Power 12V/260W 24V/520W]
The MPPT charge controller can work with standard off-grid 12/24V solar panels. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.

ELECTRICAL PARAMETERS
  • System voltage: 12V/24V
  • Rated charging current: 20A
  • Static power consumption: ≤10mA
  • Maximum solar panel power: 260W/12V; 520W/24V
  • Maximum PV open-circuit voltage: 60V (55V protection, 50V recovery)
  • MPPT operating voltage range: (Battery voltage +2V)~45V
  • Battery operating voltage range: 8V-32V
  • MPPT tracking efficiency: >99%
  • Charging conversion efficiency: 85%-98% (10%-100% of rated power)
  • Rated load current: 20A
  • Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
  • TTL communication: Baud rate: 9,600 bps
  • RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.
  • Bluetooth communication: Optional
  • CAN communication: RJ45 interface, optional (RV-C protocol)
  • Historical data: Save the last 200 days of historical data
  • Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection.
  • Grounding type: Grounding of common negative electrode
  • Cooling mode: Natural heat dissipation
  • Charging current setting: Yes
  • Full-charging setting: Yes
  • Constant voltage output setting: Yes
  • Charging temperature compensation of lead-acid battery: Yes
  • Temperature unit setting: Yes
  • Overload/Short-circuit protection: Yes


  • ENVIRONMENTAL DATA
  • Protection grade: IP32
  • Operating ambient temperature range: -35°C~65°C


  • MECHANICAL SPECIFICATIONS
  • Dimension: 181x118x61.7mm
  • Mounting hole spacing: 161x96mm
  • Weight: 650g
  • Fixed hole position: Φ4.5mm

  • GTIN: 9355348054873
